Integral T process thermostats
21/01/2019 / YAWE 0026 Starting up 49

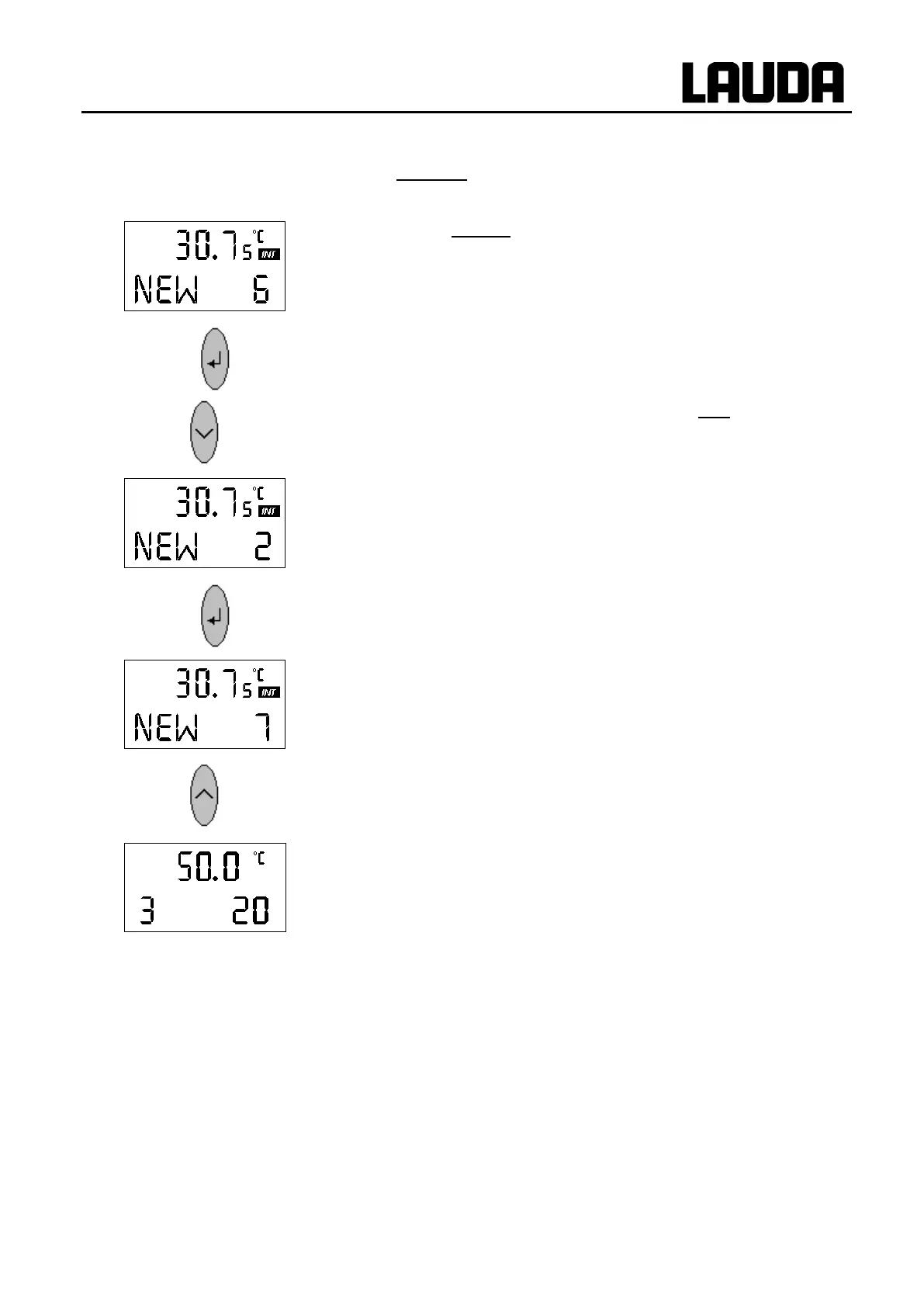

Inserting:
 Inserting new segments.
 For inserting one or more segments, proceed as
described above.
Example: After segment 2 it is requested to enter a
further segment.
4x
 Then using the key, select the segment after which a
new segment has to be inserted.
 Press key to enter.
 It can be seen that the total number of segments has
increased.
5x
 Input data for new segment as described above.
