3. Controls

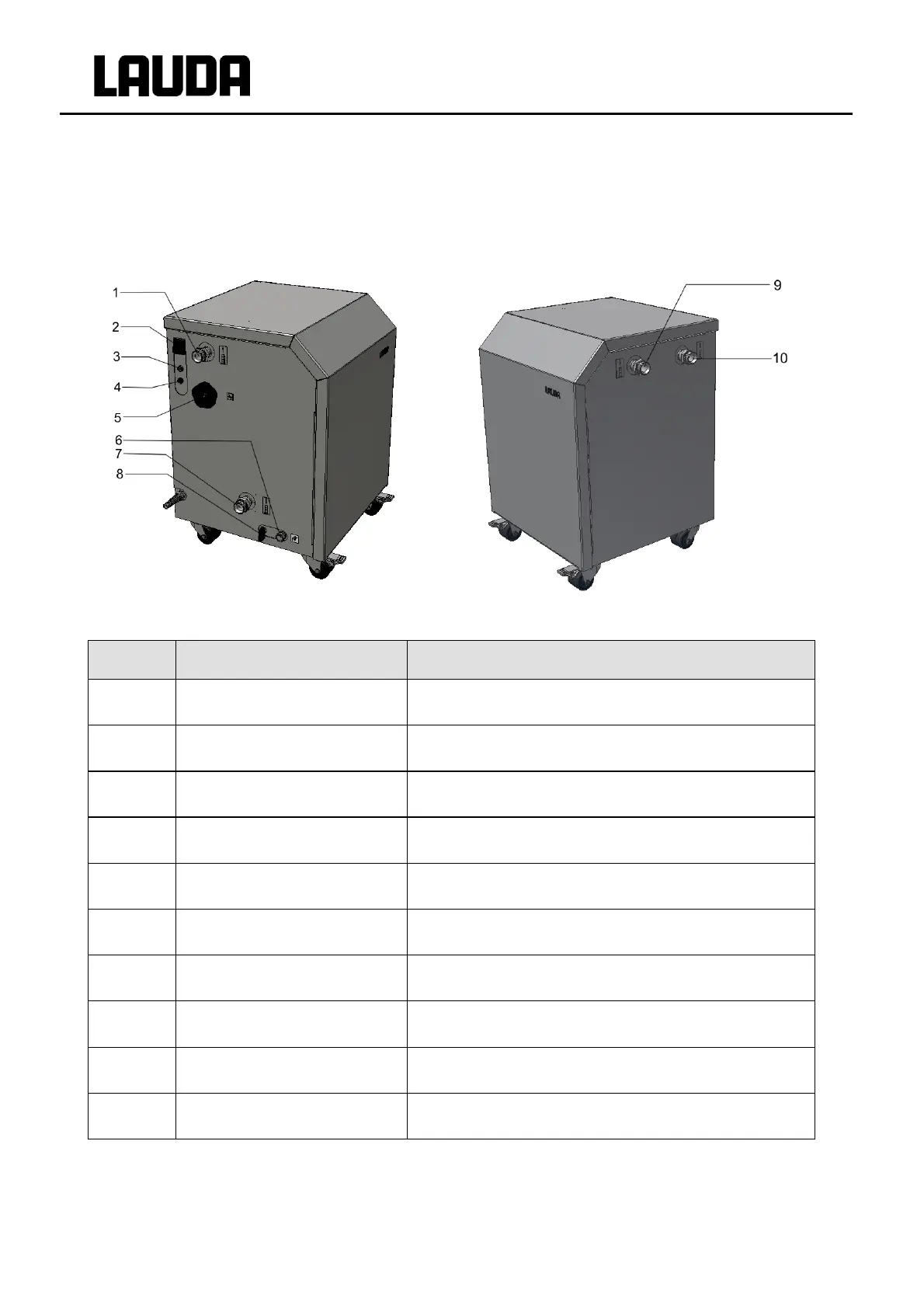

3.1 Function elements of the flow controller
,
Position
Designation
Function
1
Connection socket return XT
Connection socket between return and process
thermostat
2
Main switch
Flip to switch the device on/off
3
Lemo connection socket
Output of the internal temperature probe
4
LiBus connection socket
Receives control signals from the Integral XT
5
Setting wheel for bypass
Turn to set the degree of bypass opening
6
Outlet
To drain the device
7
Connection socket outflow
XT
Connection of pressure side of process thermostat
8
Lever for outlet
Flip to open the outlet
9
Connection socket outflow
user
Connection socket of the application’s pressure side
10
Connection socket return
user
Connection socket of application return
