LAUNCH X-431 PAD V
User's Manual

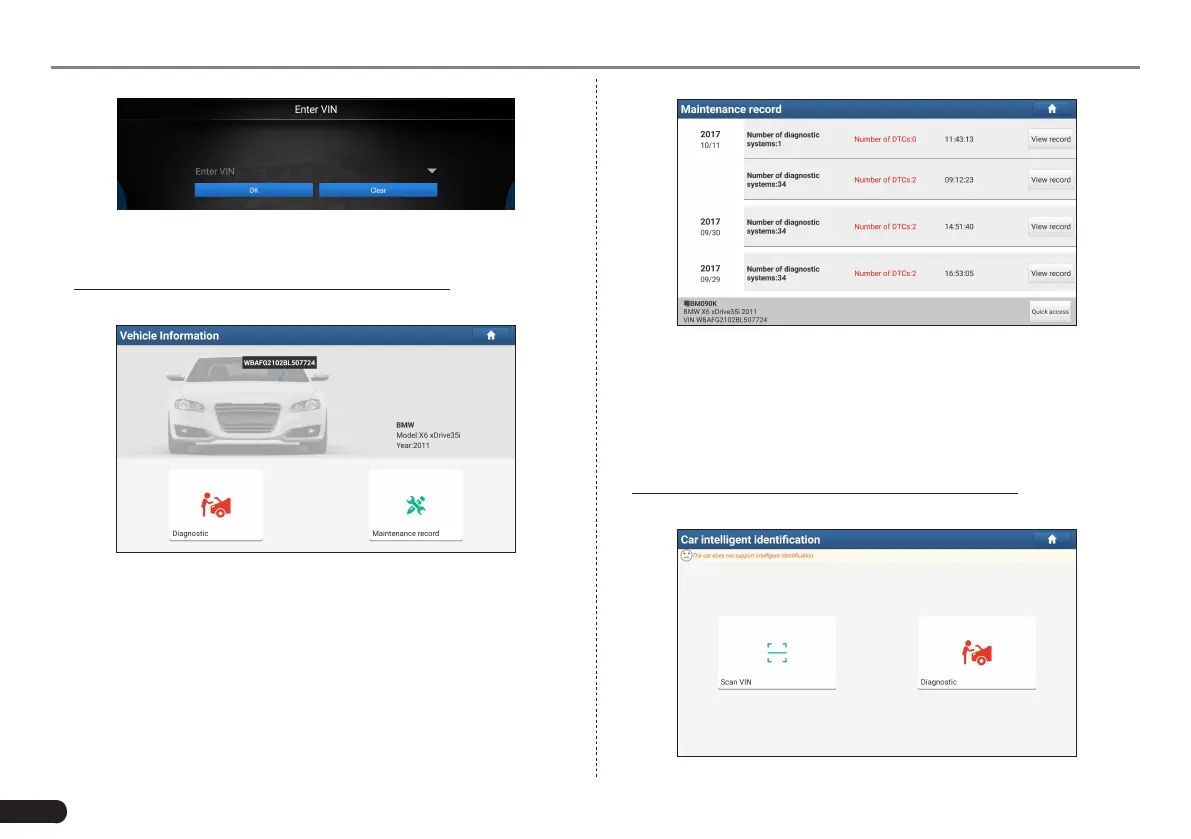

Fig. 5-9
Input the VIN, and tap “OK” to start decoding the vehicle VIN.
1. If the VIN can be found from the server database, a screen similar
to Fig. 5-10 displays:
Fig. 5-10
• Tap “Diagnostic” to start a new diagnostic session.
• Tap “Maintenance record” to view its historical repair record. If there
are records available, it will be listed on the screen in sequence of
date. If no records exist, the screen will show “No Record”.
Fig. 5-11
• Tap “View record” to view the details of the current diagnostic
report.
• To perform other functions, tap “Quick access” to directly go to the
function selection screen. Choose the desired one to start a new
diagnostic session.
2. If the handset failed to access the VIN information, the screen will
display as below:
