LAUNCH X-431 PAD V User's Manual
51

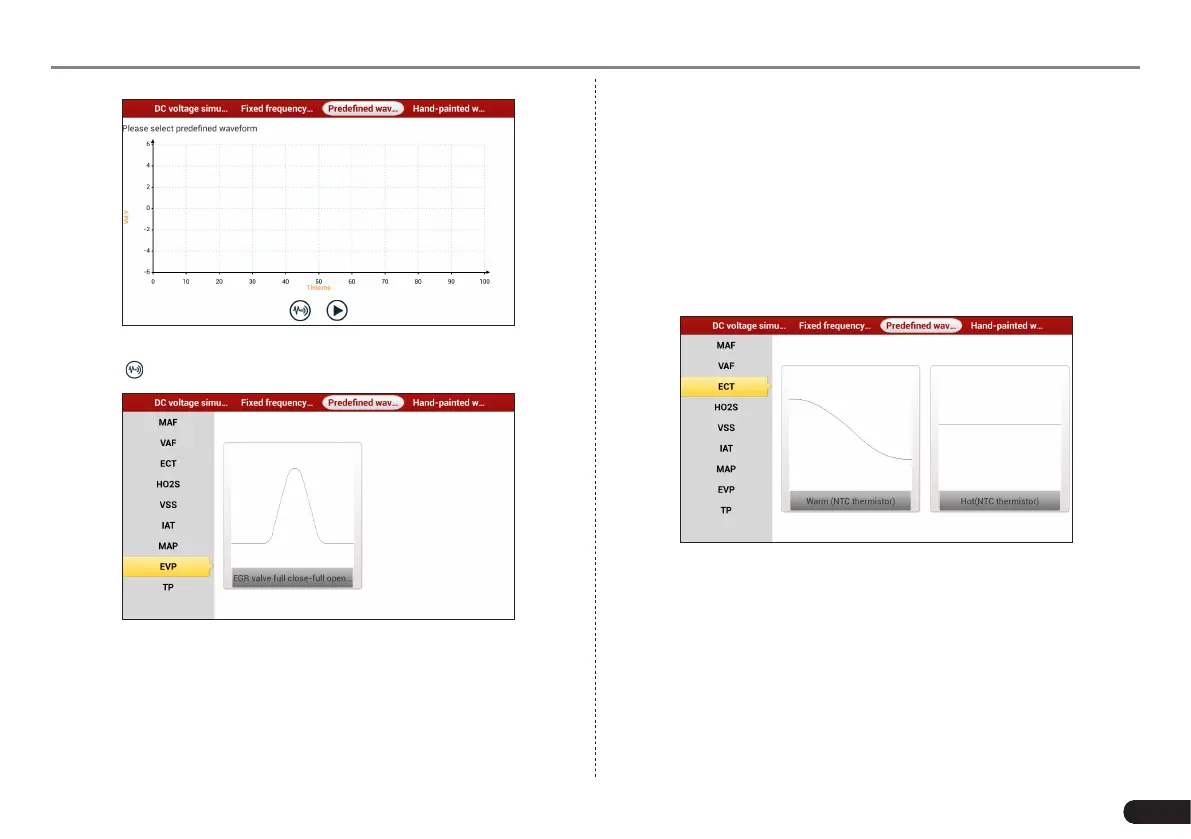

Fig. 7-4
Here, tap button, a screen similar to the following gure will appear.
Fig. 7-5
In above figure, the left setting column stands for sensor types and
the right area displays waveform. The sensor types are explained as
below:
ECT: Coolant Temperature Sensor
EVP: EGR Valve Position Sensor
HO2S: Heated Oxygen Sensor
IAT: Intake Air Temperature Sensor
MAF: Mass Air Flow Sensor
MAP: Manifold Absolute Pressure Sensor
TP: Throttle Position Sensor
VAF: Volume Air Flow Sensor
VSS: Vehicle Speed Sensor
For example, tap “ECT” – “Warm (NTC Thermistor)”, the right screen
will display the waveform of the sensor.
Fig. 7-6
Tap the waveform, then the pre-dened waveform has been set.
