62
LAUNCH X-431 PAD V User's Manual

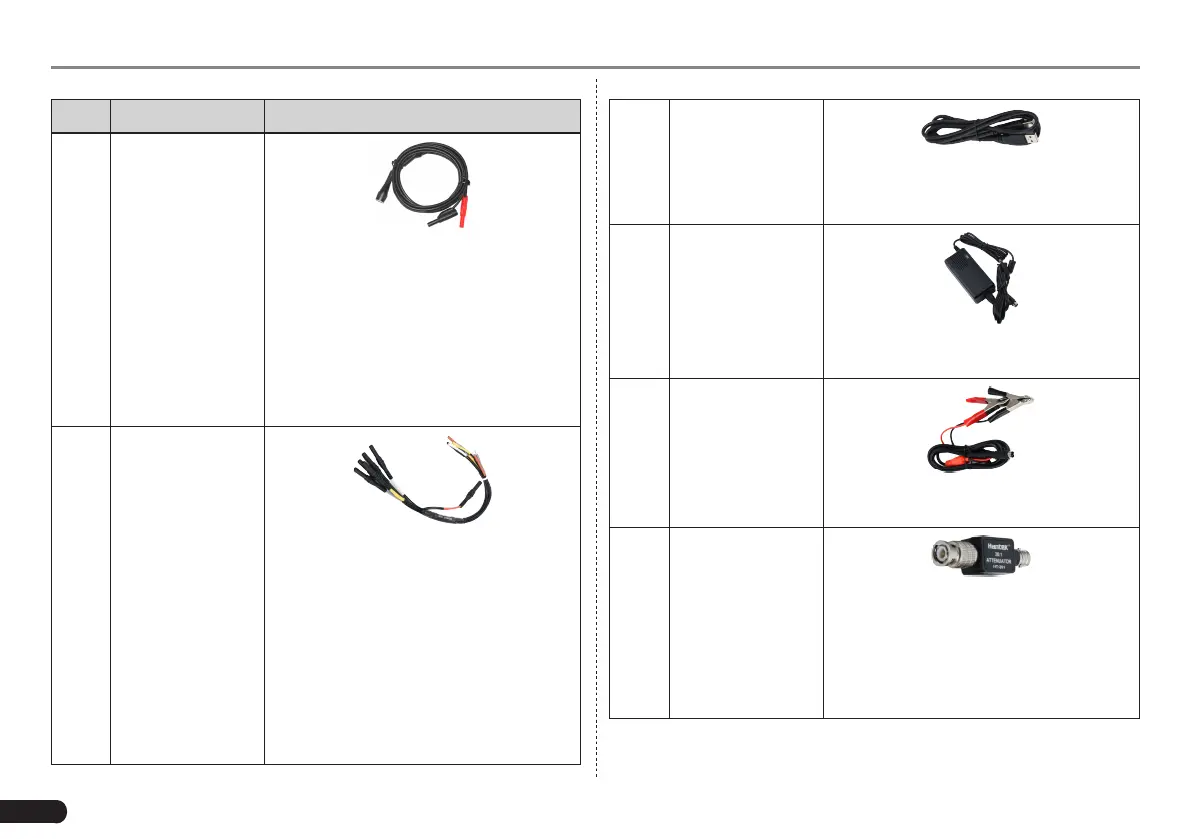

No. Name Description
1
BNC to 4mm Test
Leads
Test lead of a male BNC connector to (2)
4mm connectors. It is a kind of special line
for assisting automobile Scopebox to test
various types of signals. 4mm connectors
are coded in two colors: black (earth
wire) and red (positive pole which should
be connected with the 6-way Breakout
Leads). Moreover, it can also work with
the 20:1 Attenuator.
2
6-way Breakout
Leads
Each lead has 6 blades wired to 6 sockets,
allowing you to insert it between a plug
and socket pair, other ends are 6 (4 mm)
sockets which can be connected to the
BNC to 4mm Test Lead.
With these 6-way leads, you will be able to
test most of the sensors and actuators on
all makes and models of vehicle, including
MAP, temperature, throle posion and
airow sensors, fuel pumps, primary
ignion circuits and fuel injectors.
3 Data Cable
Connects the Scopebox and diagnostic
tool so that the sampled signal can be
displayed on the diagnosc tool.
4 Power adapter
To supply power to the Scopebox through
connection to AC outlet.
5
Battery clamps
cable
To supply power to the Scopebox through
connection to vehicle's battery.
6 20:1 Attenuator
It allows the Scopebox to measure fuel
injector and primary ignion waveforms.
*Note: Please note this aenuator
should be not used for any high voltage
measurements other than fuel injectors
and primary ignion.
