LAUNCH X-431 PAD V User's Manual
63
7

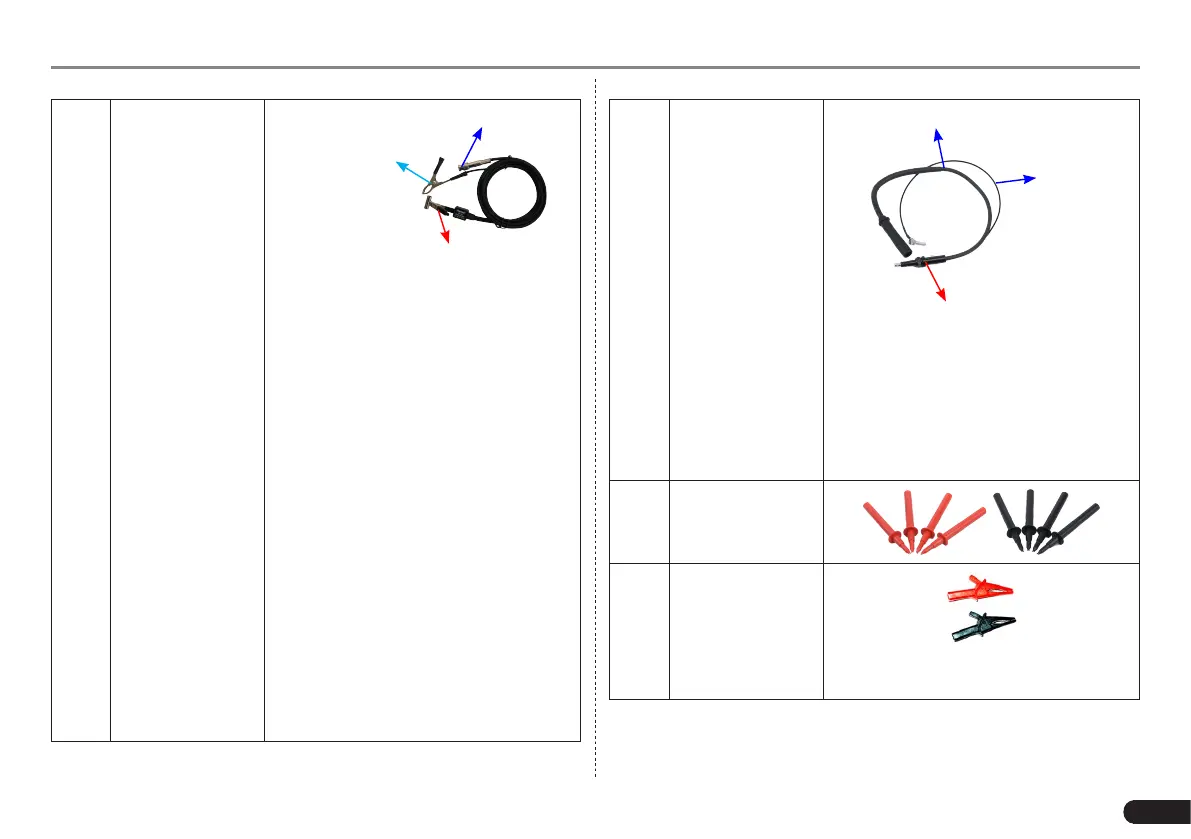

Secondary
ignition pick-up
BNC Connector
Crocodile Clip
High-voltage Clip
This ignition pick-up is applied in the
following situaons: Secondary-distributor
ignion analysis, Secondary-simultaneous
ignition analysis and Secondary-direct
ignion analysis.
It has three ends: BNC connector (for
connecng to CH1/CH2/CH3/CH4),
crocodile clip (for Grounding) and high-
voltage clip (for connecng high-voltage
line), near which has an aenuator
equipped for high-pressure aenuaon
to prevent the Scopebox from being
impacted.
*Notes:
1). The high voltage clip should be
clamped on the insulated lead (COP
Extension Cord, see Item 8) instead
of on the spark plug to prevent
breakdown and electric shock.
2). Please try to keep an instance of 2 inch
from other high-voltage line to avoid
the interference.
8
COP (Coil-on-
Plug) Extension
Cord
Earth Cord
Coil-on-Plug Extension Cord
Insulated Lead
Coil-on-Plug extension cord (including
earth cord) allows you to take accurate
secondary ignion measurements on
secondary-direct (Coil-on-Plug) ignion
systems. It can be applied in the condion
that there are no, or limited access to any
spark plug leads.
9
Multimeter
probes
10 Crocodile clips
Designed to connect the bare terminals or
leads.
