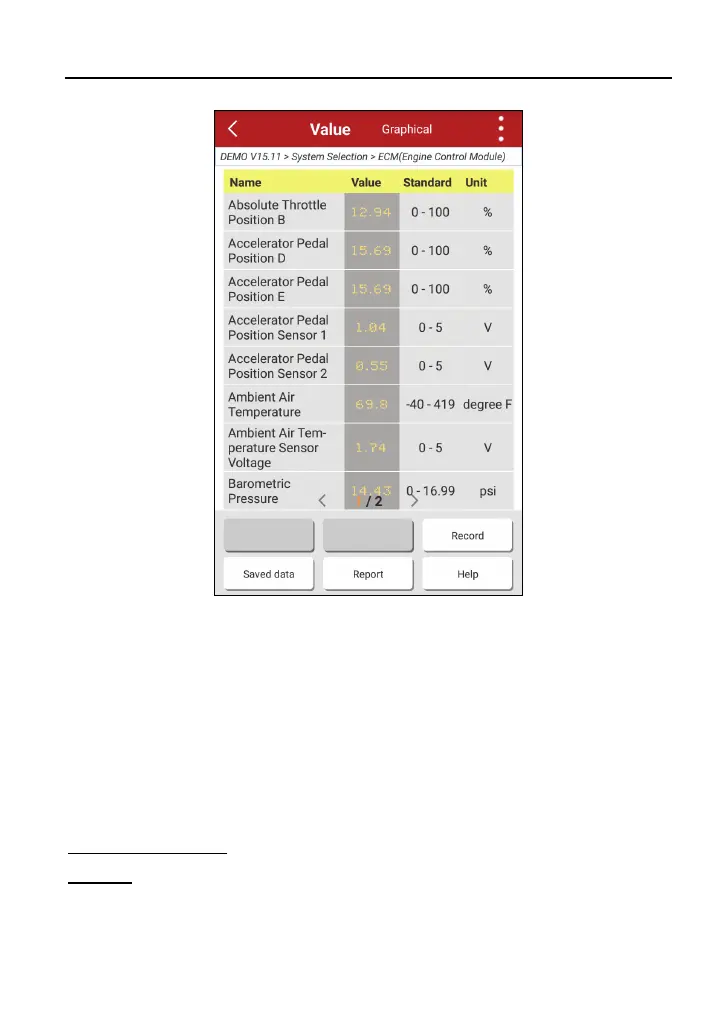

Fig. 5-11
*Notes:
1.
If the value of the data stream item is out of the range of the standard (reference)
value, the whole line will display in red. If it complies with the reference value, it
displays in black (normal mode).
2.
The indicator 1/X shown on the bottom of the screen stands for the current page
/total page number. Swipe the screen from the right/left to advance/return to the
next/previous page.
On-screen Buttons:
Record:
Tap to start recording diagnostic data for future playback and analysis.
The saved file follows the naming rule: It begins with vehicle type, and then the
record starting time and ends with .x431 (To differentiate between files, please
configure the accurate system time). The file is stored in “My Report” under
