Combine – this option is mostly used in graph merge status for data
comparison.

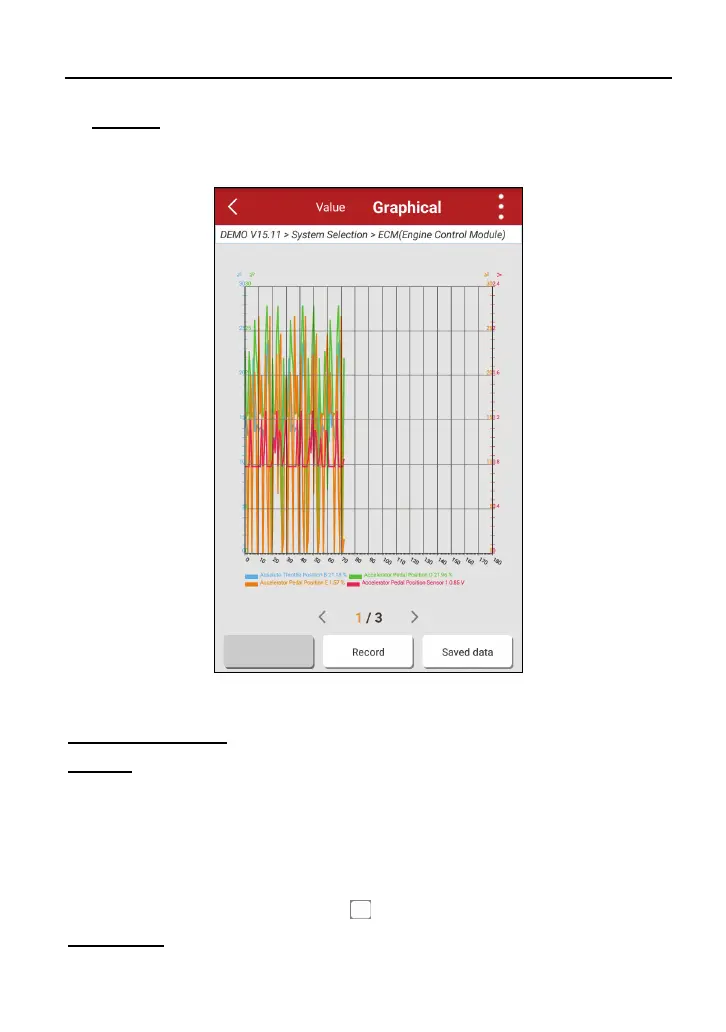

In this case, different items are marked in different colors. See
Fig. 5-13.
Fig. 5-13
On-screen Buttons:
Record:
Tap to start recording diagnostic data for future playback and analysis.
The saved file follows the naming rule: It begins with vehicle type, and then the
record starting time and ends with .x431 (To differentiate between files, please
configure the accurate system time). The file is stored in “My Report” under
“
Personal Center
” menu. For details on playback operations, please refer to
Chapter 9.1 “My Report”.
To stop reading the data stream, tap
before the recording progress bar.
Saved data:
Tap to access to “My reports”.
To Next Page
