LAUNCH X-431 Euro Mini User Manual
16

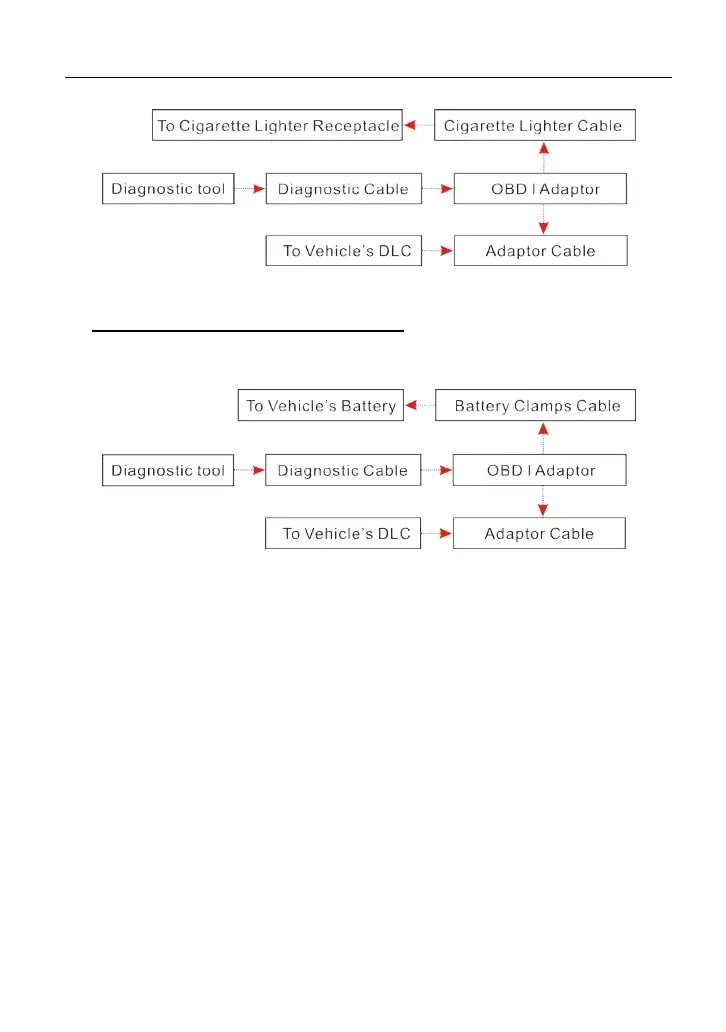

Fig. 4-9
B. Battery Clamps Cable (not included): Connect one end of the battery
clamps cable to vehicle’s battery, and the other end to the power jack of OBD
I adaptor.
Fig. 4-10
