.3. Machine composition
If not expressly indicated in the text, the position num-
bers of the machine components refer to figures in the
chapters 1.3.5. External components and 1.3.6 Internal
components.
1.3.1. Models
LB 2800 - LB 2810
LB 2801 - LB 2811
1.3.2. Identification data
In the plate the following data of the machine are indi-
cated:
- manufacturer;
- machine model;
- serial number;
-
Lavazza’s product code;
- date of manufacture;
- power supply voltage (V) and frequency (Hz);
- absorbed power (W);
- water mains pressure (MPa).
1.3.3. Overall dimensions and weight
Depth: 435 mm
Width: 322 mm
Height: 470 mm
Weight: 31 kg
1.3.4. Technical specifications
Power supply frequency: 50/60
Boiler capacity (litres): 2
Boiler pressure (bar): 1,4 max
Safety valve calibration (bar): 2
Supply water pressure (bar): 0 - 5 max
Coffee brewing pressure (bar): 8 - 9 max
LB 2800 - LB 2810
Power supply voltage (V): 230
Power consumption (W): 1700
LB 2801 - LB 2811
Power supply voltage (V): 120
Power consumption (W): 1350

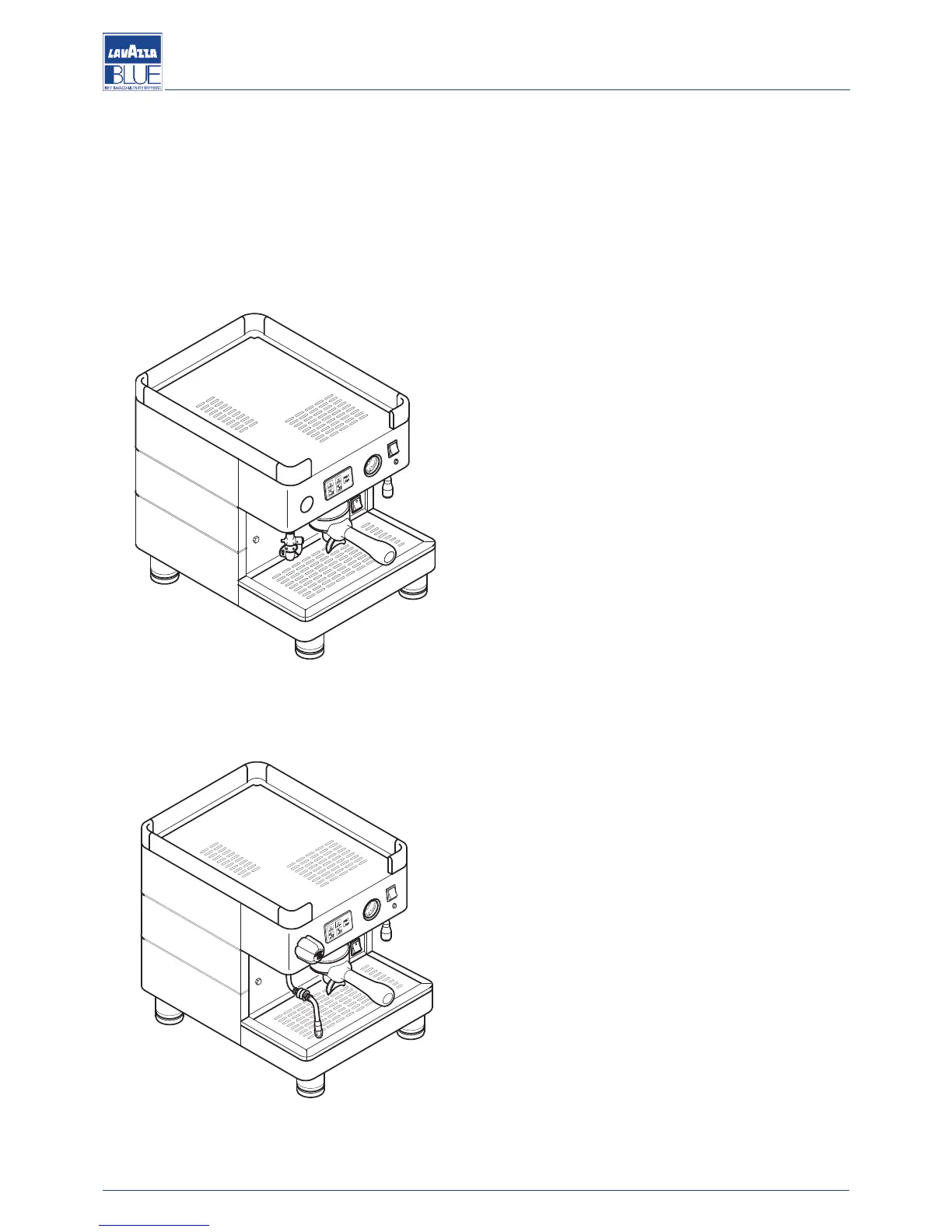

1.3.5. External components
1) Hot water dispensing key
2) Pilot light for boiler heater on
3) Boiler pressure gauge
4) Hot water pipe
5) On/off switch
6) Adjustable foot
7) Coffee spout
8) Keyboard
9) Cappuccinatore
10) Steam pipe
11) Rubber piece
12) Steam knob
