PAGE 5
GETTING TO KNOW YOUR KT-100
Your KT-100 is a quality, precision instrument that will give you many years of outstanding
service; take a few minutes to get to know it.
The KT-100 can be used with any Kenwood transceiver that supports the AT-300 tuner
interface. Tuning is performed when the AT or TUNE button is pushed on the front of the
Kenwood radio and held for one second. The tuner can be placed in bypass mode by pressing the
AT or TUNE button momentarily.

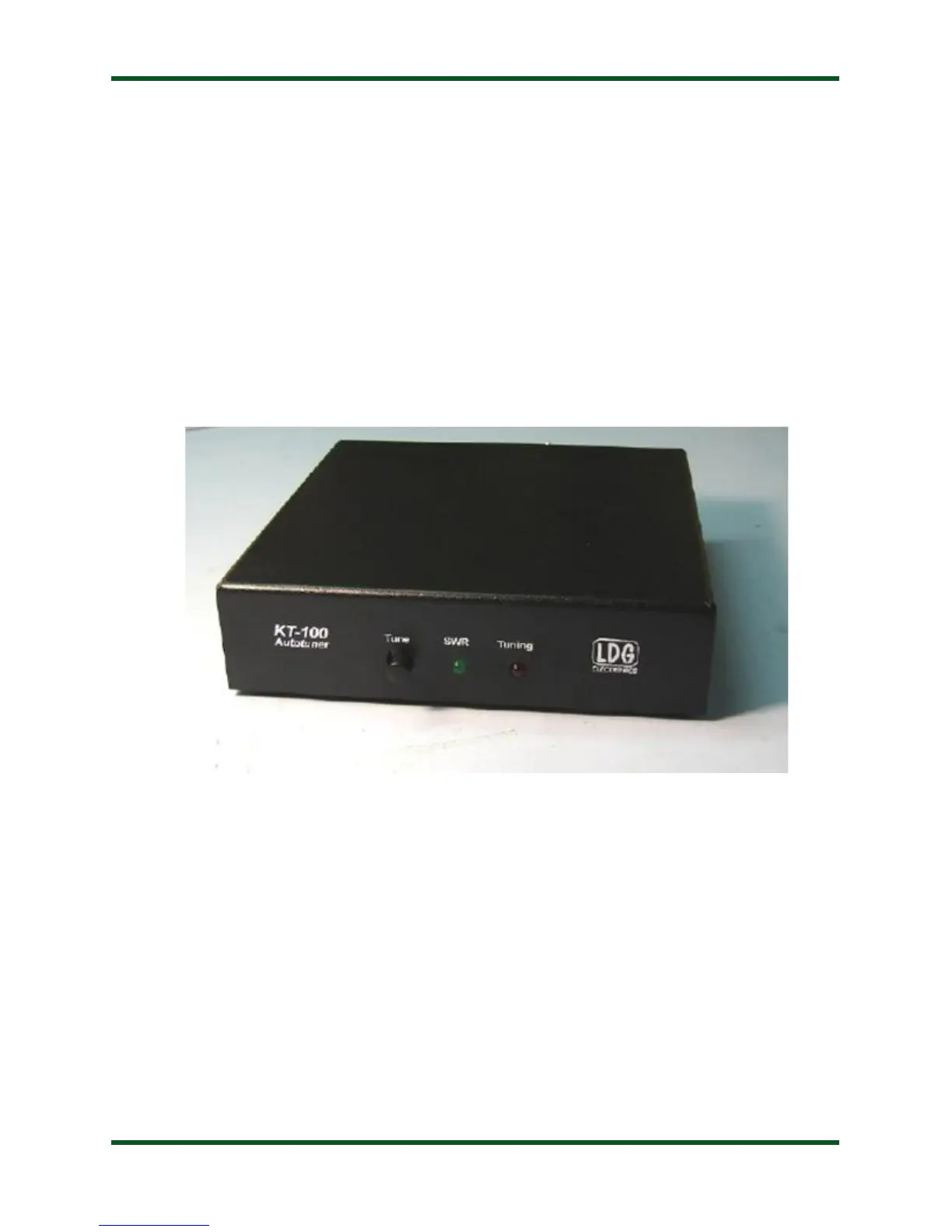

Front Panel
On the front panel there is one pushbutton and two LED indicator lights.
Tune: Initiates either a memory tune or a full tune, and also toggles the tuner between
“active” and “bypass” modes.
SWR LED: Lights steady green at the end of a tuning cycle to indicate a good match has
been found.
Tuning LED: Lights during tuning operation, will also blink error codes if a good tuning
match is not found.
