PAGE 6

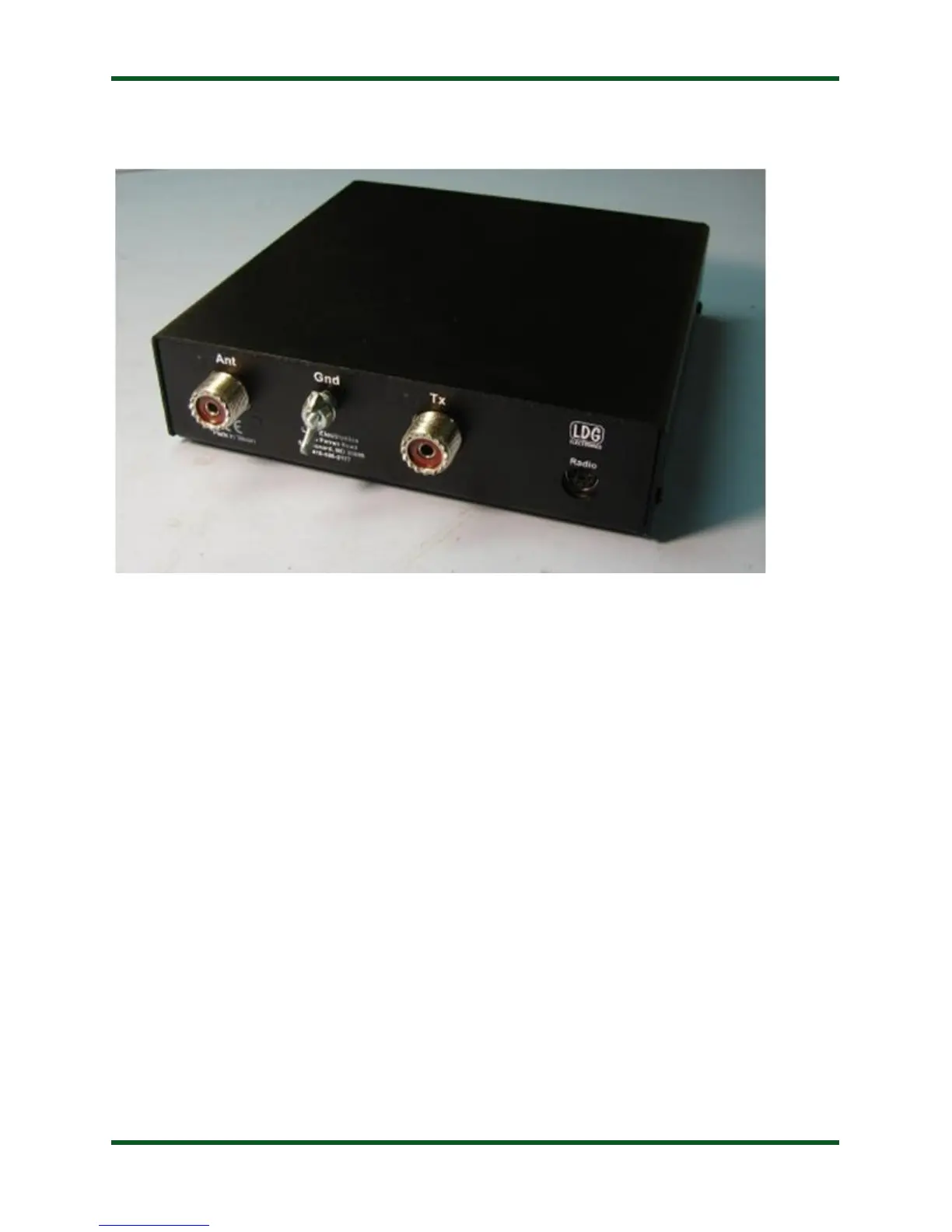

Rear Panel
The rear panel of the KT-100 features four connectors.
ANT connector: Connect the 50-ohm coax antenna feedline to this standard SO-239
connector.
GND connector (wing nut): Connect to antenna system ground.
TX connector: Connect a 50-ohm coax jumper cable from this standard SO-239 connector
to the ANT jack on the back of the transceiver.
Radio connector: This 7-pin mini-DIN connector connects to the supplied radio interface
cable, which connects to the AT-300 tuner port on the transceiver.
