The Z-100 has 200 memories, each of which stores the tuning settings for a specific frequency.
When you tune near a previously tuned frequency, you can use “Memory Tune” to reset the tuner
in only a fraction of a second. The process of storing tuning data in memory is completely
automatic; your Z-100 “learns” as you use it, adapting itself to your most-used bands and
frequencies.

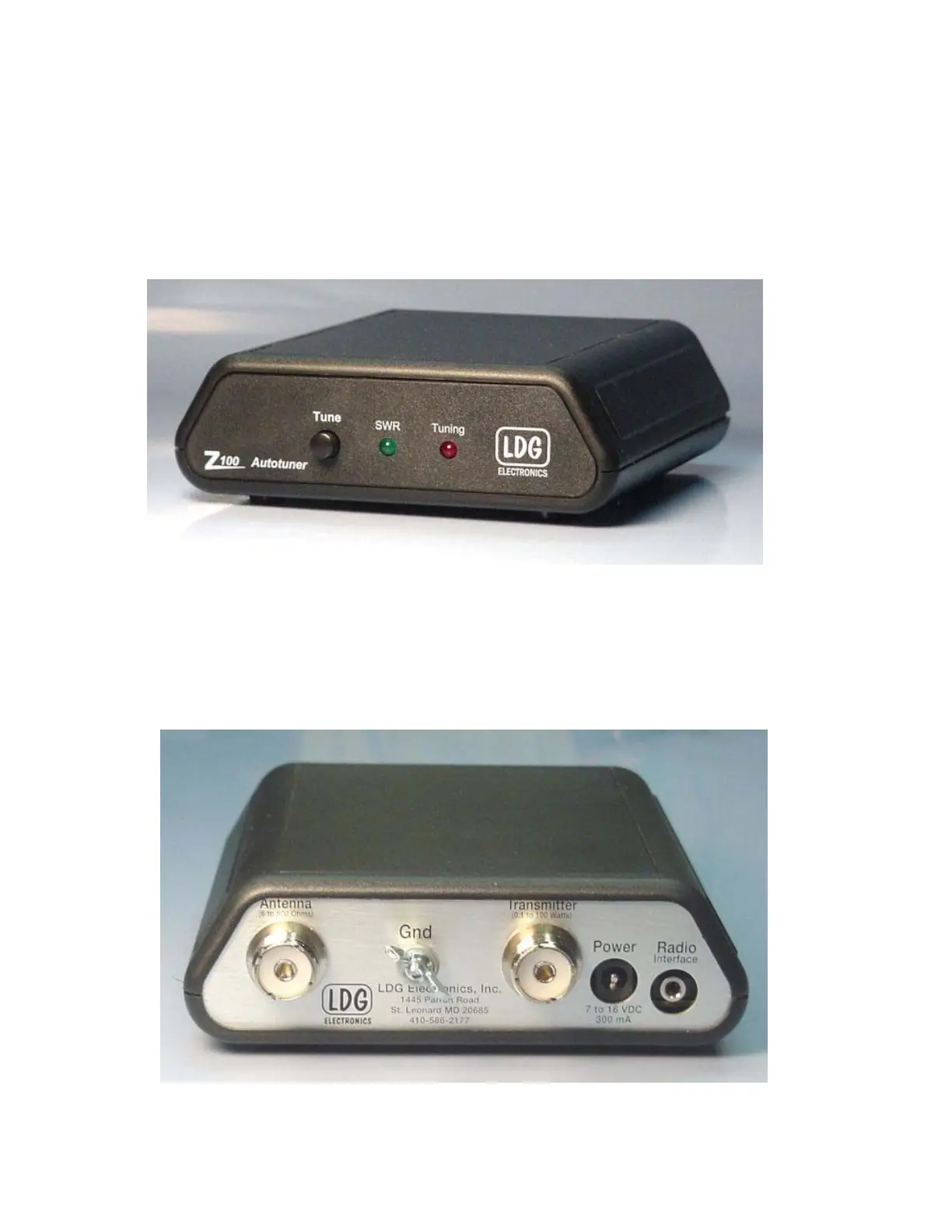

The green LED on the front panel indicates the SWR during the tuning cycle and until RF is
removed.
On the back panel, there are five connectors:
• RF in (marked “Transmitter”, standard SO-239 socket)
• RF out (marked “Antenna”, standard SO-239 socket)
• DC power in (2.5 by 5.5 mm power jack)
• Stereo 1/8” jack for connecting a control cable to a compatible transceiver
• Ground connector (wing nut)
5
