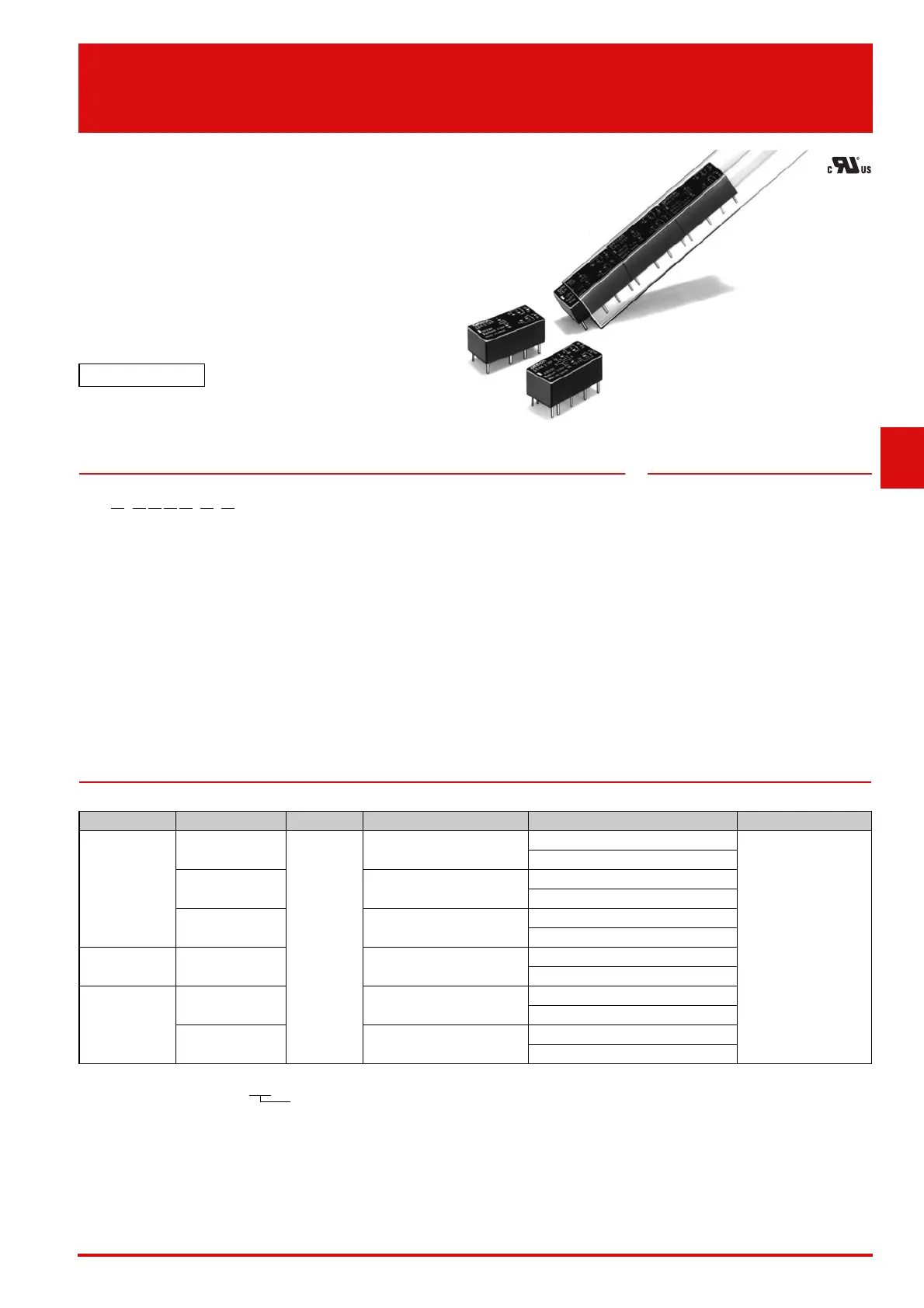

Low Signal Relay
World's Standard Model G6A!
• Resistant to electromagnetic interference,
enables high-density mounting.
• Impulse withstand voltage of 1,500V meets FCC
requirements.
• Gold-clad twin-contacts provide short contact
bounce in addition to its high contact reliability.
• A variety of products that cover a wide range of
use.
■Model Number Legend
■Ordering Information
●UL/C-UL Certified Models
Note: When ordering, add the rated coil voltage to the model number.
Example: G6A-274P-ST-US DC3
However, the notation of the coil voltage on the product case as well as on the packing will be marked as @@ VDC.
RoHS Compliant
Relay Function Classification Contact form Model Rated coil voltage (VDC) Minimum packing unit
Single-side Stable
Type
Standard
DPDT (2c)
G6A-274P-ST-US
3, 4.5, 5, 6, 9, 12, 24
25 pcs/tube
48
Low-sensitivity G6A-274P-ST40-US
3, 5, 6, 9, 12, 24
48
High-sensitivity G6A-274P-ST15-US
3, 5, 6, 9, 12, 24
48
Single-winding
Latching Type
Standard G6AU-274P-ST-US
3, 4.5, 5, 6, 9, 12, 24
48
Double-winding
Latching Type
Standard G6AK-274P-ST-US
3, 4.5, 5, 6, 9, 12, 24
48
Low-sensitivity G6AK-274P-ST40-US
3, 5, 6, 9, 12, 24
48
■Application Examples
• Telecommunication equipment
• Security equipment
• Test & measurement equipment
G6A@-@@@@-@-@
123456
7
5. Terminal Shape
P: PCB Terminals
6. Classification
7. Approved Standards
None : Standard
ST : Stand-off 0.64 mm
15 : High-sensitivity (150 mW)
40 : Low-sensitivity
(Single-side Stable: 400 mW
Double-winding Latching: 360 mW)
None : Standard
US : UL/C-UL
1. Relay Function
2. Contact Form
2: DPDT (2c)
3. Contact Type
7: Bifurcated crossbar Ag (Au-Alloy)
4. Protective Structure
4: Fully sealed
None : Single-side stable
U : Single-winding latching
K : Double-winding latching
Rated coil voltage
