Your Z-100A tuner
Front Panel

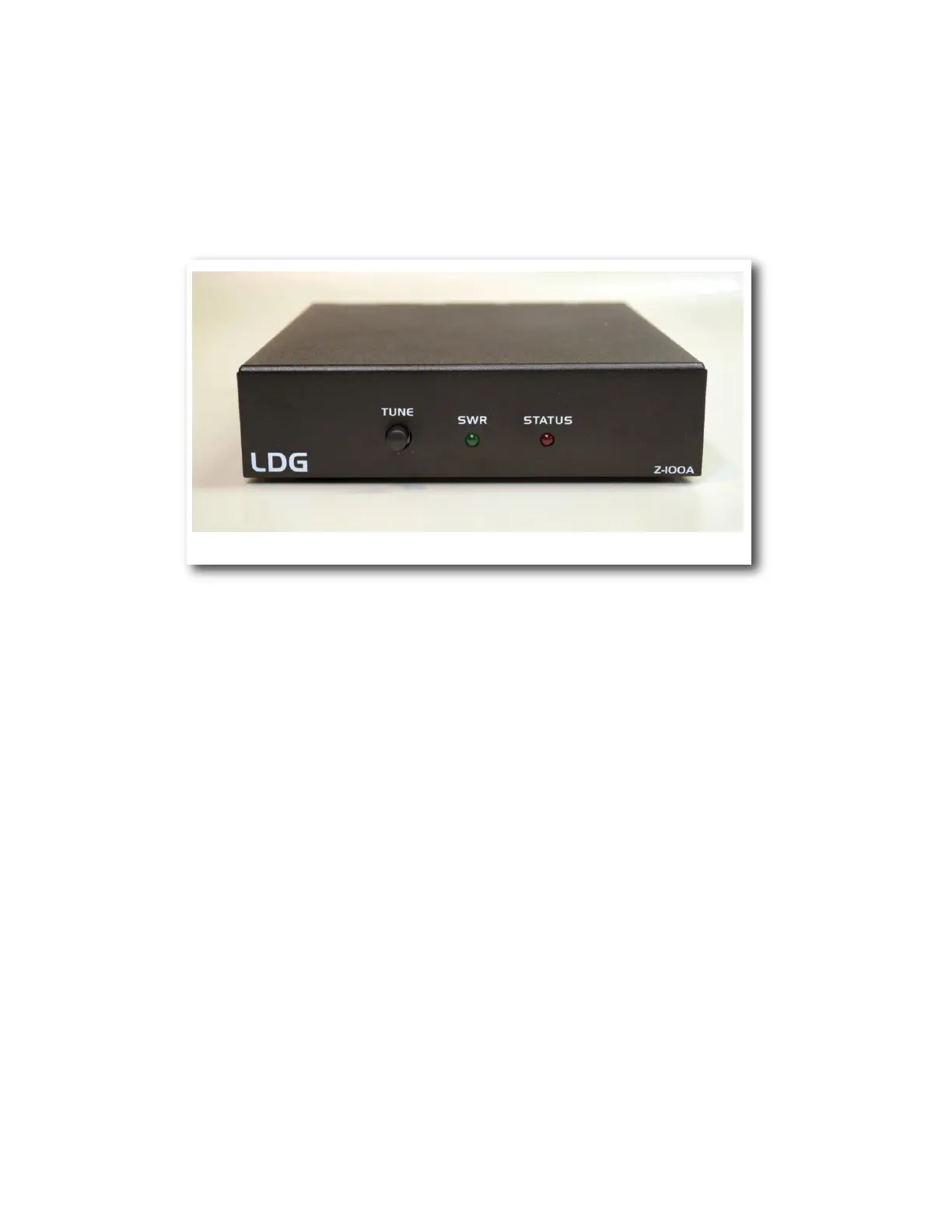

On the front panel there is one pushbutton and two LED indicator lights.
TUNE Button: Initiates either a memory tune or a full tune, and also toggles the tuner
between “active” and “bypass” modes.
SWR LED: Lights or blinks to indicate SWR condition.
STATUS LED: Lights to give feedback on button activation; lights during tuning; provides
tuning status at the end of a tuning cycle.
