PAGE 6

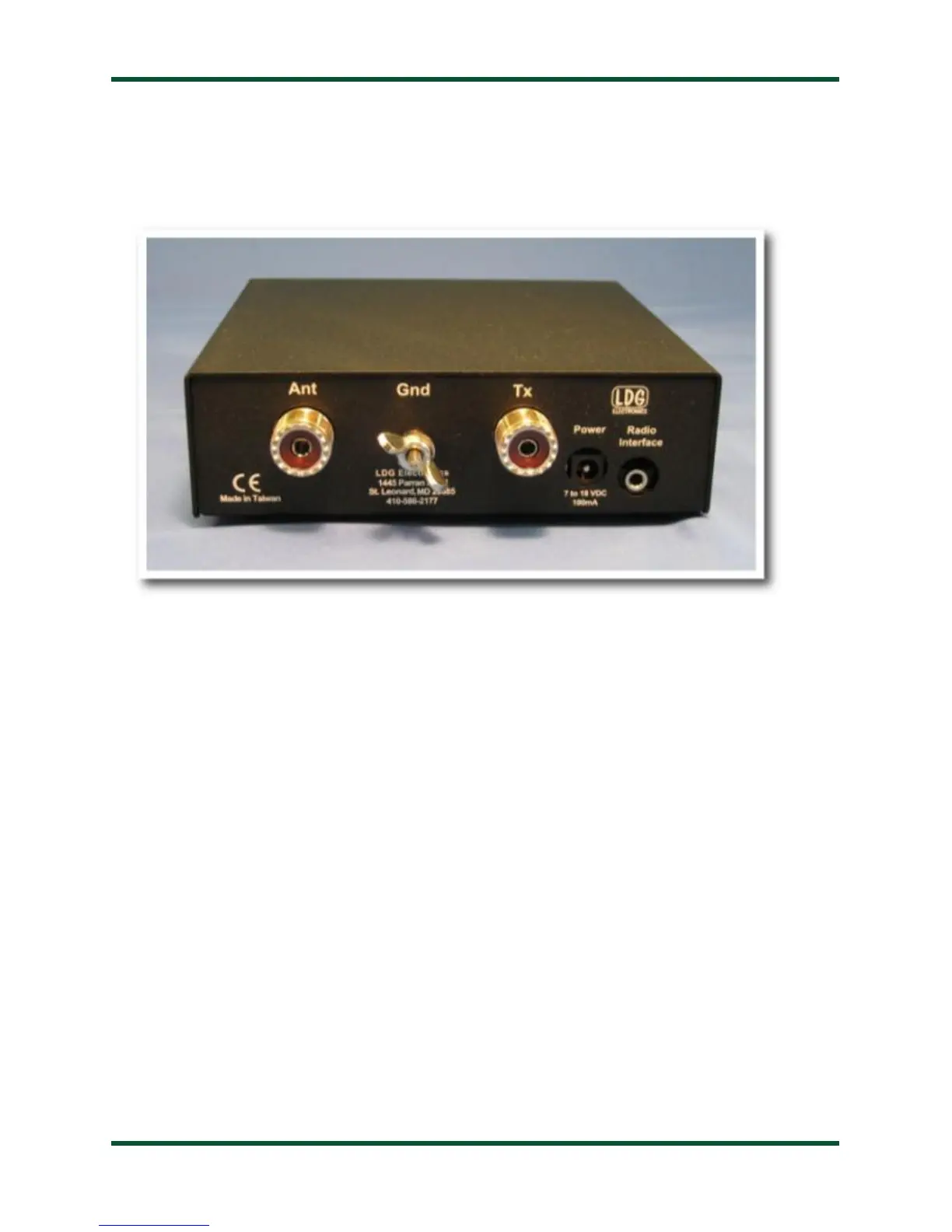

Rear Panel
The rear panel of the Z-100Plus features five connectors.
Antenna connector: Connect the 50-ohm coax antenna feedline to this standard SO-239
connector.
GND connector (wing nut): Connect to antenna system ground.
Transmitter connector: Connect a 50-ohm coax jumper cable from this standard SO-239
connector to the ANT jack on the back of the transceiver.
Power jack: 2.5x5.5mm DC coaxial jack. Connect to 7 to 18VDC, center positive.
Radio Interface jack: Connects via a control cable to a compatible transceiver.
