DM442 Digital Stepping Drive Manual V1.0
Tel: +000 0000-00000000 24

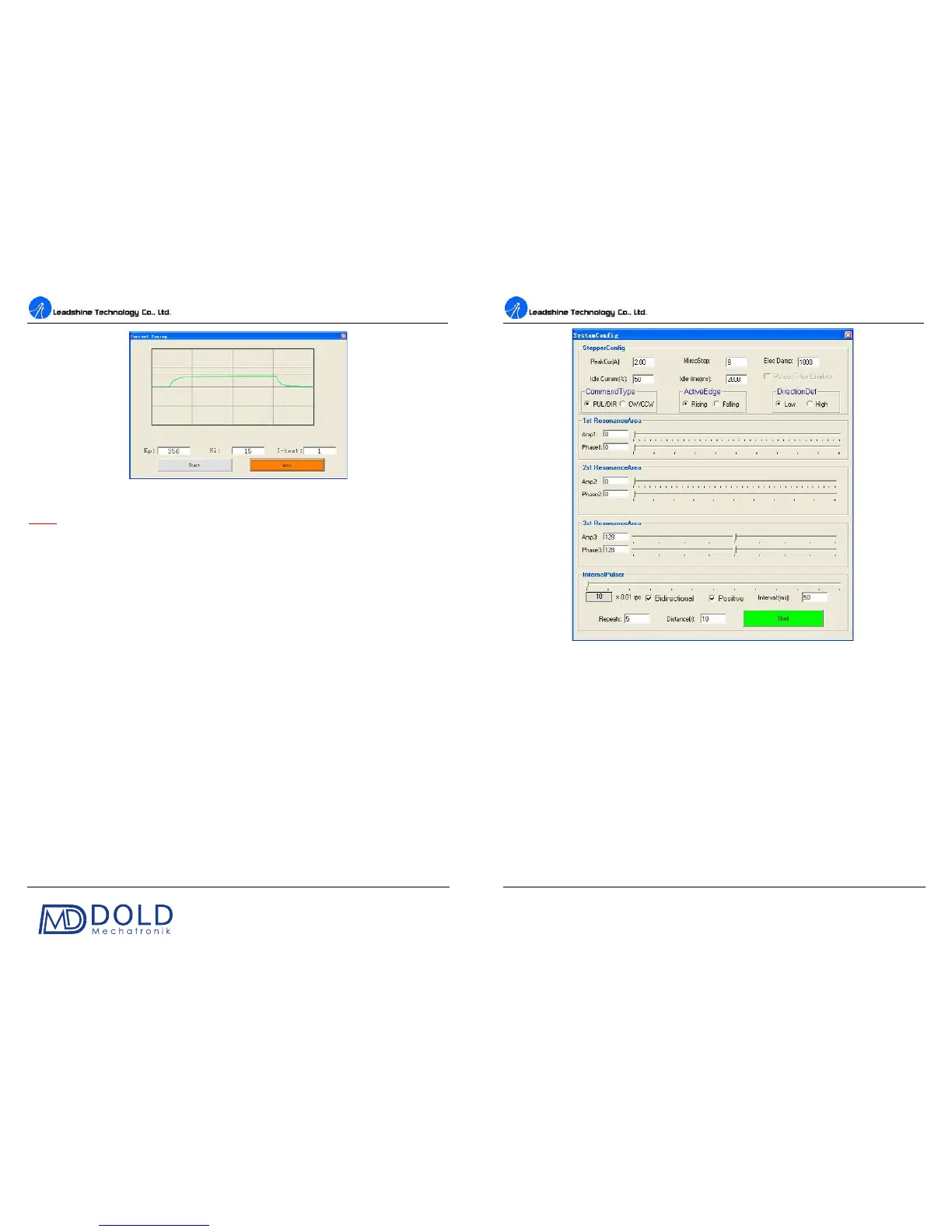

Figure 24: Kp=356, Ki=15 (poor performances)
Notes:
However, if the user does not want to tune the current loop after changing a different stepping motor,
then Motor self-test and parameter auto-setup technology of the DM442 can replace manual tuning
the drive with ProTuner. Just changes SW4 two times in 1 second (without ProTuner), or click Auto
button, and then the drive will auto-identify the new motor and auto-configure related control
parameters for optimum responses. Recommend
use this function after changing the driven motor.
SystemConfig:
In SystemConfig window, the user can configure Peak Current, Microstep, Elec Damp, Idle Current,
Idle Time, Command Type, Active Edge and eliminate motor resonance. A built-in pulse generator
can be used for test during tuning. See Picture 25.
DM442 Digital Stepping Drive Manual V1.0
Tel: +000 0000-00000000 25
Figure 25: System Configure Window
PeakCur: Peak Current. The value is the peak current to the selected motor and can be set from 0.1
to 4.2 A. The user can set the peak current with ProTuner or DIP switches, see more information
about setting output current of the drive in section 5 “Connecting the Motor” and section 7
“Selecting Microstep Resolution and Drive Output Current”.
MicroStep: Microstep Resolution. The value is dri
ve’s microstep resolution setting and can be set
from 1 to 512. The user can set the microstep with ProTuner or DIP switches, See more information
about setting output current of the drive in section 7 “Selecting Microstep Resolution and Drive
Output Current”.
ElecDamp: Electronic Damping Coefficient. The electronic damping restrain resonance of the
system and prevent amplitude of the oscillation from increasing to the
extend that it makes the motor
