Leb Electronics CTR57 - Definitions of Accessory Inputs; Definitions of Optical Signals; Definitions of Trimmer; Definitions of Jumper

19
ENGLISH
BATT IN (FS3 - FS4)
Input for a 12Vdc or 24Vdc backup battery connection, it depends on the power supply in use.
Attention: Set up the jumper JP1 in the right position in order to avoid damages of the equipment and/or battery.
5) Definitions of Accessory inputs
Aerial (clamps 1 e 2 on terminal board J1)
Input for the connection of a radio aerial.
6) Definitions of Optical Signals
DL1 – Programming led (red)
It is lit together with the blinker, in the programming phase and during the gate’s motion.
DL2 – Photocell led (yellow)
It signals the optical barrier’s state. The led goes off when the photocell is covered by person or vehicles.
7) Definitions of Trimmer
RV1 – Slow-down speed
It defines the gate’s speed during the slow-down phase. It can be adjusted in every moment. Turning clockwise increases speed.
8) Definitions of Jumper

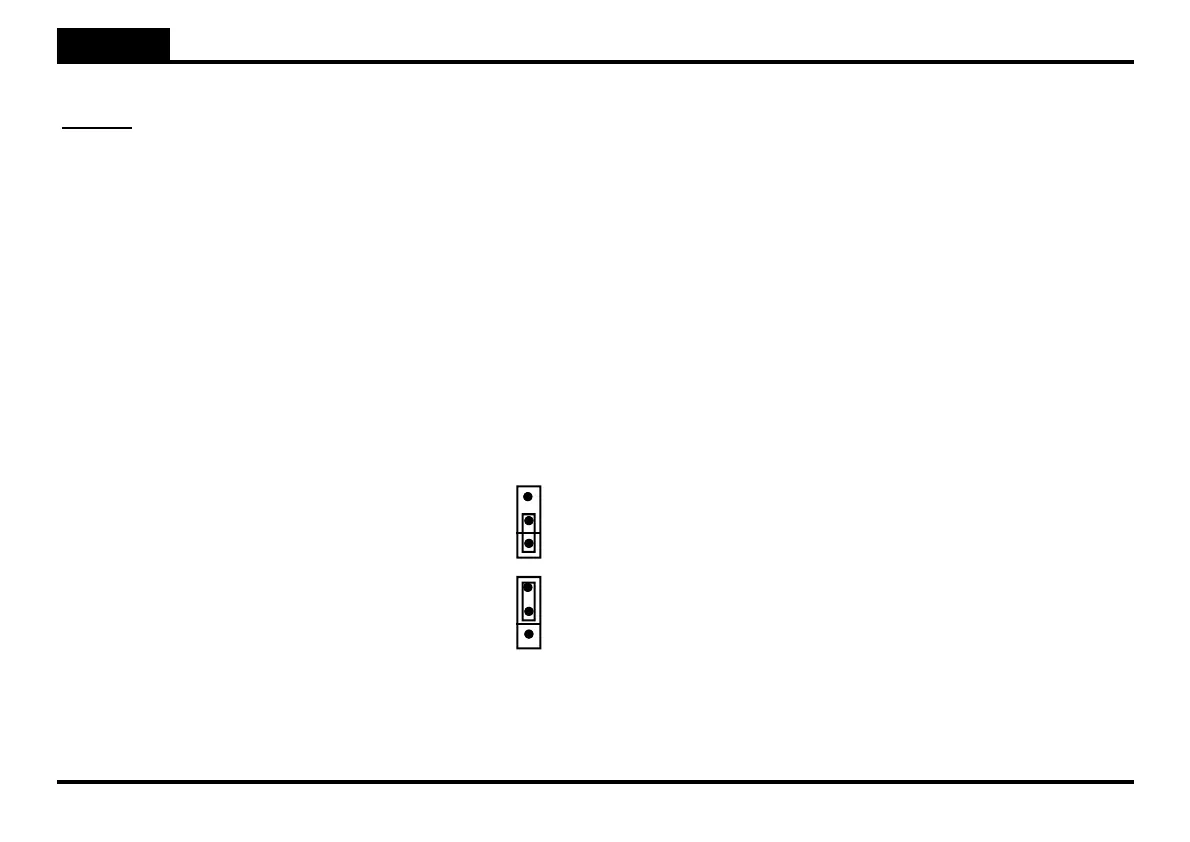

Jumper JP1 - Battery charger
In position 1-2 it enables a 12Vdc battery charger. In position 2-3 it enables a 24Vdc battery charger.
JP1 - Battery charger
12Vdc
24Vdc
3
2
1
3
2
1
WARNING: MAKE SURE THAT THE VOLTAGE IS CORRECT
TO AVOID DAMAGES TO THE DEVICE !
