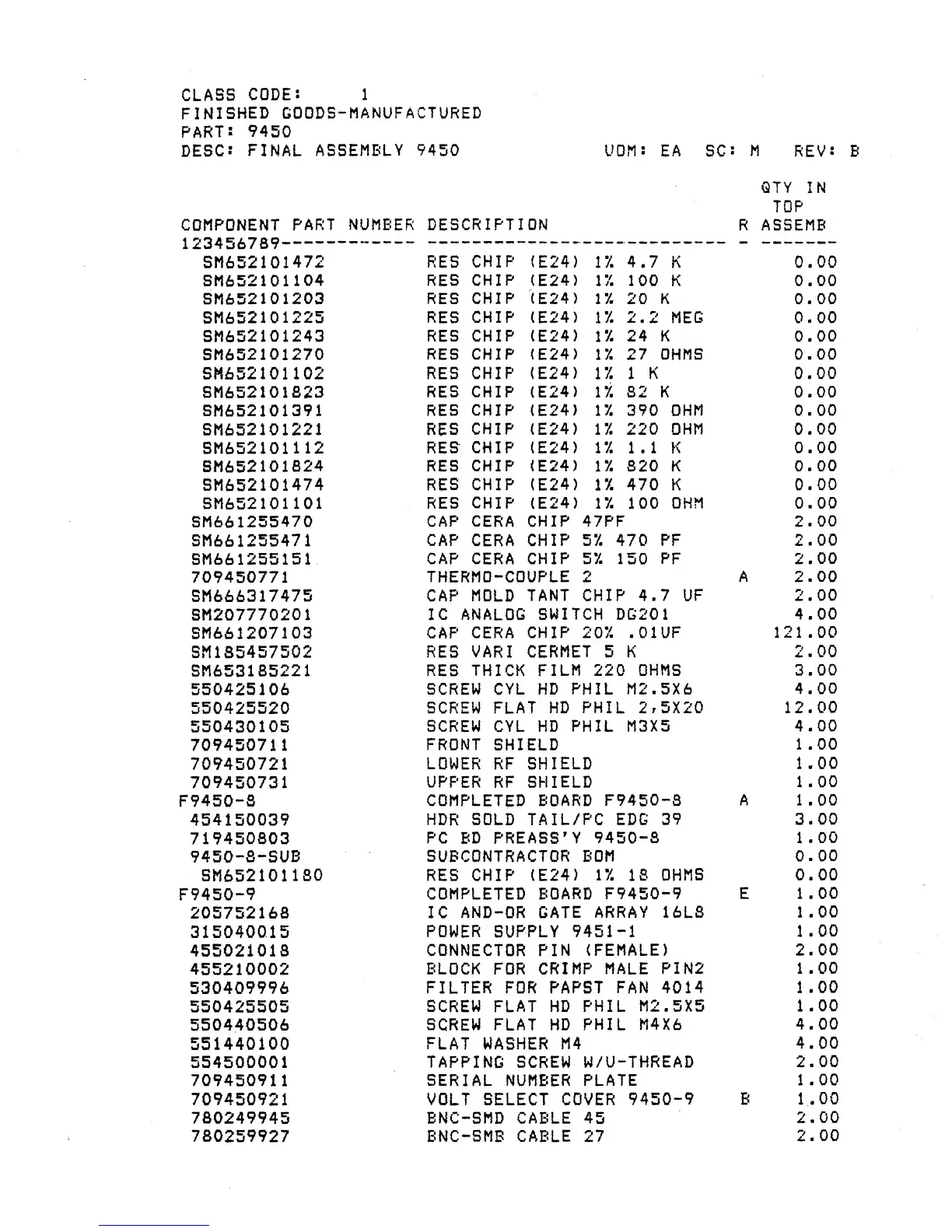

LeCroy 9450 - Page 136

CLASS
CODE: 1
FINISHED
GOODS-MANUFACTURED
PART!
9450
DESC
! FINAL ASSEMBLY
COMPONENT
PART NUMBER
9450
U0M
:
EA
SC
DESCRIPTION
:
M
R
REV:
QTY IN
TOP
ASSEMB
liiJl JO/BY
SM652
101472 RES
CHIP
(
E24
)
17.
4.7
K
0.00
SM652101
104 RES
CHIP
(
E24
> 17. 100
K
0.00
SM652
1
0
1203
RES CHIP
( E 2
4
)
17.
20 K 0.00
SM652
101 225
RES CHIP
(
E24
)
17. 2.2
MEG 0.00
SM652
1 0
1243 RES
CHIP
(
E24
>
17. 24 K
0.00
SM652101270
RES CHIP
(
E24
)
17. 27 OHMS 0.00
SM652101 102 RES
CHIP
(E24 )
17.
1
K 0.00
SM6521 0 1823
RES CHIP
(
E24
) 17. 82 K 0.00
SM652
101391
RES CHIP ( E24 )
17.
390 OHM 0.00
SM652101221
RES
CHIP
(
E24
)
17. 220 OHM
0.00
SM652
101112
RES
CHIP
(E24)
17.
1.1 K
0.00
SM652
1 0
1824 RES
CHIP
(
E24
)
17. 820 K
0.00
SM652101474
RES CHIP
(
E24
)
17. 470
K
0.00
5M652
101101
RES CHIP (
E24
) 17. 100 OHM
0.00
SM66
1255470
CAP CERA
CHIP 47PF 2.00
5M66125547
1
CAP CERA CHIP
57.
470
PF 2.00
SM66 1255 151
CAP
CERA
CHIP 57. 150
PF 2.00
709450771
THERMO-COUPLE 2
A
2.00
SM666317475
CAP MOLD
TANT
CHIP 4.7
UF 2.00
SM20777020
1
IC ANALOG
SWITCH
DG201
4.00
SM661207
103 CAP
CERA
CHIP 207. .01UF
121 .00
SM
185457502
RES VAR
I
CERMET 5 K
2.00
SM6531 8522
1
RES
THICK FILM 220
OHMS 3.00
550425106
SCREW
CYL HD PHIL M2. 5X6
4.00
550425520
SCREW FLAT
HD PHIL 2,5X20
12.00
550430105
SCREW CYL HD
PHIL M3X5
4.00
70945071
1
FRONT
SHIELD
1.00
709450721
LOWER RF SHIELD
1.00
709450731
UPPER RF SHIELD
1.00
F9450-8
COMPLETED BOARD F9450-S
A 1 .00
454150039
HDR SOLD
TAIL/PC
EDG
39 3.00
719450803
PC BD PREASS ” Y
9450-8
1
.00
9450-8-SUB
SUBCONTRACTOR BOM
0.00
SM652 101180
RES CHIP (
E24 ) 17. IS
OHMS 0.00
F9450-9
COMPLETED
BOARD
F9450-9
E 1.00
205752168
IC
AND-OR GATE
ARRAY 16LS
1 .00
315040015
POWER SUPPLY
9451-1
1.00
455021018
CONNECTOR PIN
(FEMALE)
2.00
455210002
BLOCK
FOR
CRIMP MALE
PIN2
1.00
530409996
FILTER FOR PAPST
FAN 4014
1 .00
550425505
SCREW FLAT HD
PHIL M2. 5X5
1 .00
550440506
SCREW FLAT HD
PHIL M4X6
4.00
551440100
FLAT WASHER M4
4.00
554500001
TAPPING
SCREW
W/U-THREAD
2.00
709450911 SERIAL NUMBER
PLATE
1 .00
709450921 VOLT SELECT COVER
9450-9
B
1.00
780249945 BNC-SMD CABLE 45
2.00
780259927 BNC-SMB CABLE 27
2.00
