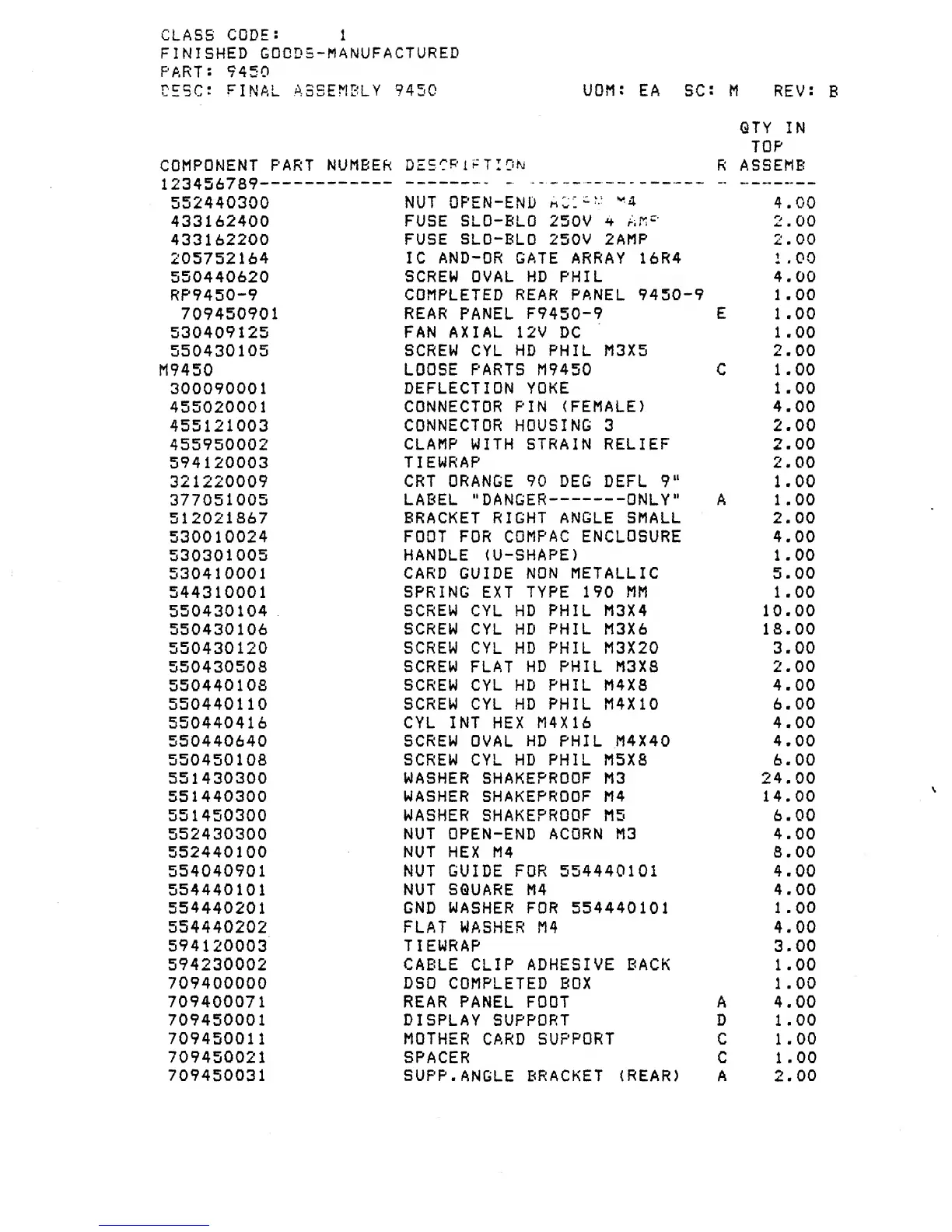

LeCroy 9450 - Page 137

UOM:
EA
sc:
M
REV:
B
CLASS
CQDE
: 1
FINISHED
G0CDS-M4NUFACTURED
PART:
9450
DEBC
:
FINAL
ASSEMBLY
9450
QTY
IN
TOP
COMPONENT
PART
NUMBER
DESCRIPTION
R
ASSEMB
1 Z J
*r
JO
/ o t
552440300
NUT
OPEN-END
mCI---
v
4
4.00
433162400
FUSE SLO-BLO 250V
4 AM*
2.00
433162200
FUSE SLO-BLO
250V
2 AMP 2.00
205752164
IC
AND-OR GATE
ARRAY
16R4
1 .00
550440620
SCREW OVAL HD PHIL 4.00
RP9450-9
COMPLETED
REAR PANEL
9450-9
1.00
709450901
REAR
PANEL
F9450-9 E
1 .00
530409125
FAN AXIAL
12V
DC
1.00
550430105
SCREW
CYL
HD PHIL M3X5
2.00
M9450
LOOSE PARTS M9450 C 1.00
300090001
DEFLECTION
YOKE
1.00
455020001
CONNECTOR
PIN (FEMALE)
4.00
455121003
CONNECTOR HOUSING 3 2.00
455950002
CLAMP WITH STRAIN RELIEF 2.00
594120003
TIEWRAP 2.00
321220009
CRT ORANGE 90 DEG DEFL
9“
1.00
377051005 LABEL
"DANGER ONLY" A
1.00
512021867
BRACKET RIGHT ANGLE SMALL
2.00
530010024
FOOT FOR COMP AC ENCLOSURE 4.00
530301005
HANDLE
(U-SHAPE)
1.00
530410001
CARD GUIDE NON METALLIC 5.00
544310001
SPRING
EXT
TYPE 190 MM
1.00
550430104
SCREW CYL HD PHIL M3X4 10.00
550430106
SCREW CYL
HD
PHIL M3X6 18.00
550430120
SCREW CYL HD PHIL M3X20 3.00
550430508 SCREW FLAT HD
PHIL M3X8 2.00
550440108
SCREW CYL HD PHIL M4XS 4.00
550440110 SCREW CYL
HD
PHIL M4X10
6.00
550440416 CYL INT
HEX
M4X16
4.00
550440640
SCREW
OVAL
HD
PHIL
M4X40 4.00
550450108 SCREW CYL HD
PHIL
M5XS
6.00
551430300 WASHER SHAKEPROOF
M3
24.00
551440300
WASHER SHAKEPROOF
M4
14.00
551450300
WASHER SHAKEPROOF M5 6.00
552430300
NUT
OPEN-END ACORN M3
4.00
552440100 NUT HEX M4 8.00
554040901 NUT
GUIDE FOR
554440101 4.00
554440101 NUT SQUARE M4
4.00
554440201 GND WASHER FOR 554440101
1.00
554440202 FLAT
WASHER M4
4.00
594120003 TIEWRAP 3.00
594230002 CABLE
CLIP
ADHESIVE BACK 1.00
709400000 DSO COMPLETED
BDX
1.00
709400071 REAR
PANEL FOOT A 4.00
709450001 DISPLAY SUPPORT D 1.00
709450011 MOTHER
CARD SUPPORT C 1.00
709450021
SPACER C 1.00
709450031
SUPP.
ANGLE
BRACKET
(REAR)
A 2.00
