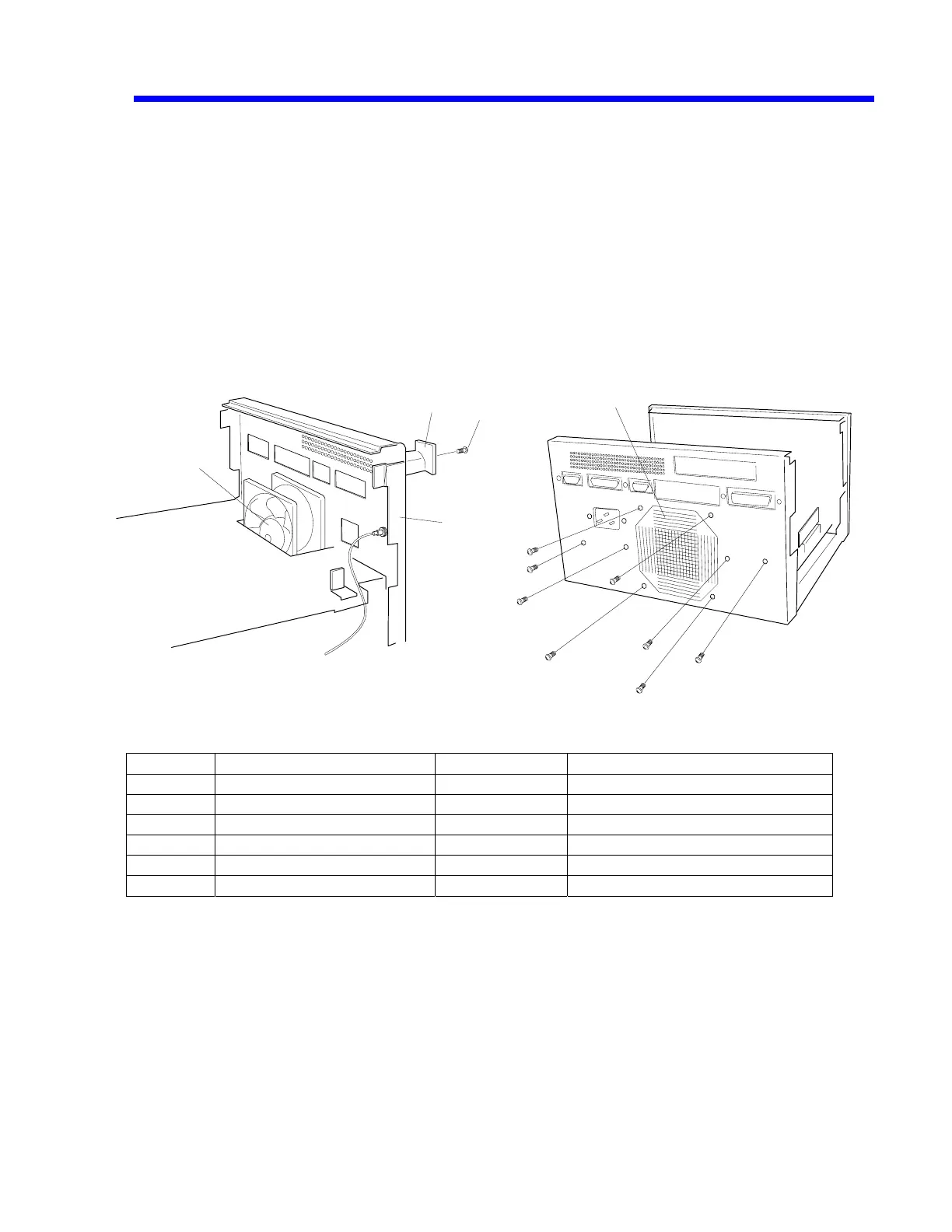

I. Removal of the Rear Panel Assembly
Remove the upper and bottom covers.
Remove the processor assembly.
Remove the main assembly.
Remove the power supply assembly.
• I1 : Remove the rear panel assembly and four M3 x 6 screws from the main frame.
• I2 : Remove four fan motor fastening M3 x 6 screws.
[I1] [I2]
4
3
2
5
1
6
Rear Panel Replaceable Parts
Item IWATSU Part Number Quantity Description
1 KBA785111 1.0 REAR FRAME
2 KCM138221 4.0 Cord rack 78 UL-I
3 KSN091911 1.0 WIRE NET(MESH #5)
4 MKB130062 8.0 Screw M3x6
5 MSM140101 4.0 Screw SM1-4X10
6 DMT620701 1.0 FAN 109R1212M114
Mechanical Part & Removal 7-19
