Lectrosonics SMDB/E01 Series - Microphone Cable Termination; Mic Cord Stripping Instructions; Crimping to Shield and Insulation

Super-Minature Belt Pack Transmitters
Rio Rancho, NM
11
NOTE: This termination is intended for UHF
transmitters only. VHF transmitters with
5-pin jacks require a different termination.
Lectrosonics lavaliere microphones are
terminated for compatibility with VHF and
UHF transmitters, which is different than
what is shown here.
Microphone Cable Termination
for Non-Lectrosonics Microphones

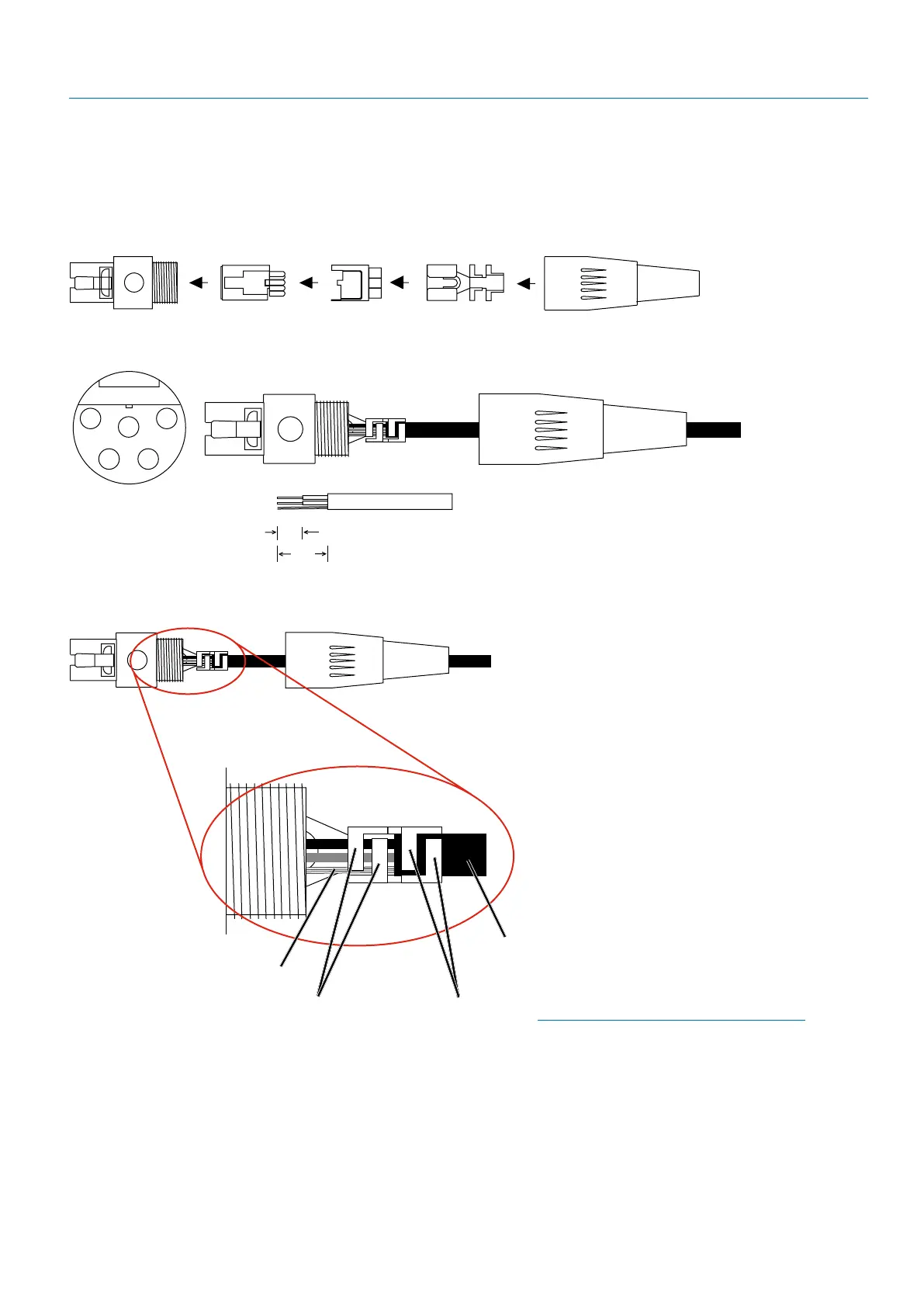

TA5F Connector Assembly
Mic Cord Stripping Instructions
1
23
4
5
VIEW FROM SOLDER
SIDE OF PINS
0.3"
0.15"
Crimping to Shield and Insulation
Shield
Insulation
Strip and position the cable so that the clamp
can be crimped to contact both the mic cable
shield and the insulation. The shield contact
reduces noise with some microphones and the
insulation clamp increases ruggedness.
Crimp these
fingers to
contact the
shield
Crimp these
fingers to
clamp the
insulation
