Note: Check the scale of your printout. This line should be 6.00 inches long (152.4 mm).
Whip Length
Straight Whip Antennas
The Lectrosonics AMMKIT provides the parts to make
an antenna with a standard SMA connector for any of
the available frequency blocks. Cut the whip accord-
ing to the lengths in the table below or by laying the
antenna over the template to determine the correct
length. Be sure to check the scale of your printout by
measuring the length of the line below the drawing.
470 470.100 - 495.600 Black w/ Label 5.67”
19 486.400 - 511.900 Black w/ Label 5.23”
20 512.000 - 537.500 Black w/ Label 4.98”
21 537.600 - 563.100 Brown w/ Label 4.74”
22 563.200 - 588.700 Red w/ Label 4.48”
23 588.800 - 614.300 Orange w/ Label 4.24”
606 606.000 - 631.500 (Use Block 24 Ant)
24 614.400 - 639.900 Yellow w/ Label 4.01”
25 640.000 - 665.500 Green w/ Label 3.81”
26 665.600 - 691.100 Blue w/ Label 3.62”
27 691.200 - 716.700 Violet (Pink) w/ Label 3.46”
28 716.800 - 742.300 Grey w/ Label 3.31”
29 742.400 - 767.900 White w/ Label 3.18”
30 768.000 - 793.500 Black-w/Label 3.08”
31 793.600 - 819.100 Black-w/Label 2.99”
32 819.200 - 844.700 Black-w/Label 2.92”
33 844.800 - 861.900 Black-w/Label 2.87”
BLOCK FREQUENCY CAP/SLEEVE ANTENNA
RANGE COLOR WHIP LENGTH
The frequency range and/or block is marked on the
outside of the transmitter housing.

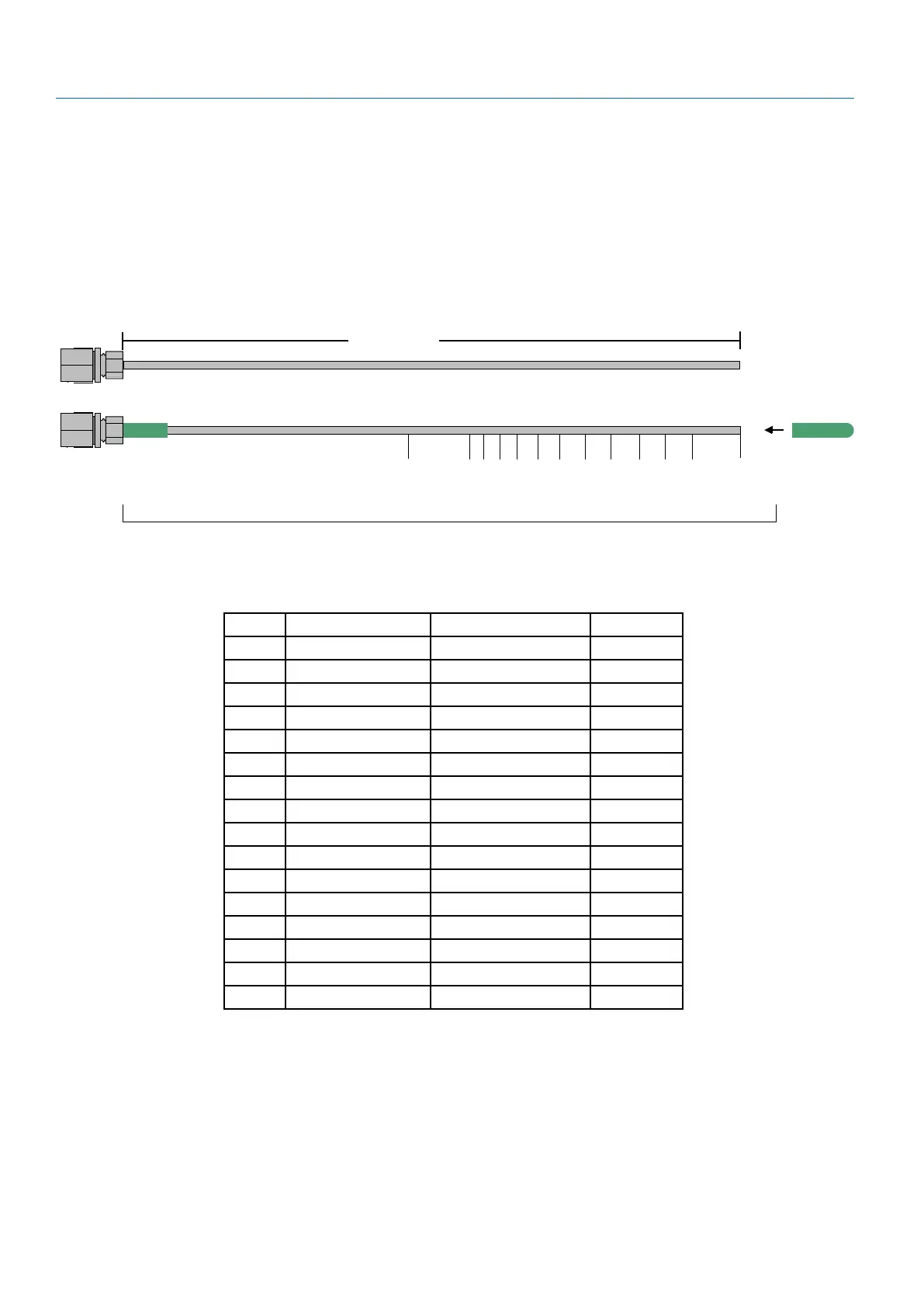

Unmarked antennas can be identified by laying them
on the template below. Be sure to verify that a print
out is at 100% by checking the length of the line be-
low the antenna drawing.
