Specifications and Features
Operating frequencies:
Block 470 470.100 - 495.600
Block 19 486.400 - 511.900
Block 20 512.000 - 537.500
Block 21 537.600 - 563.100
Block 22 563.200 - 588.700
Block 23 588.800 - 614.300
Block 606 606.000 - 631.500
Block 24 614.400 - 639.900
Block 25 640.000 - 665.500
Block 26 665.600 - 691.100
Block 27 691.200 - 716.700
Block 28 716.800 - 742.300
Block 29 742.400 - 767.900
Block 30 768.000 - 793.500
Block 31 793.600 - 819.100
Block 32 819.200 - 844.700
Block 33 844.800 - 861.900
(100 kHz Steps)
(Frequency usage varies by country)
Frequency range: 256 frequencies in 100 kHz steps for one
25.5 MHz wide block
Channel Spacing: 100 kHz
Type of Modulation: FM
Frequency selection: Control panel mounted membrane switches
RF Power output: 50 mW (nominal)
Compatibility Modes (6) Digital Hybrid Wireless® (400 Series) and IFB
Pilot tone: 25 to 32 kHz; 3 kHz deviation in hybrid mode
Frequency stability: ± 0.002%
Deviation: ± 50 kHz max. in hybrid mode
Spurious radiation: 60 dB below carrier
Equivalent input noise: –125 dBV, A-weighted
Input level:
If set for dynamic mic: 0.5 mV to 50 mV before limiting.
Greater than 1 V with limiting.
If set for electret lavaliere mic: 1.7 uA to 170 uA before limiting.
Greater than 5000 uA (5 mA) with limiting.
Line level input: 17 mV to 1.7 V before limiting.
Greater than 50 V with limiting.
Input impedance:
Dynamic mic: 300 Ohms
Electret lavaliere: Input is virtual ground with servo adjusted
constant current bias
Line level: 2.7 k Ohms
Input limiter: Soft limiter, 30 dB range
Bias voltages: Fixed 5 V at up to 5 mA
Selectable 2 V or 4 V servo bias for any
electret lavaliere.
Gain control range: 40 dB; panel mounted membrane switches
Modulation indicators: Dual bicolor LEDs indicate modulation of
-20, -10, 0, +10 dB referenced to
full modulation.
Controls: Control panel with LCD and four membrane
switches.

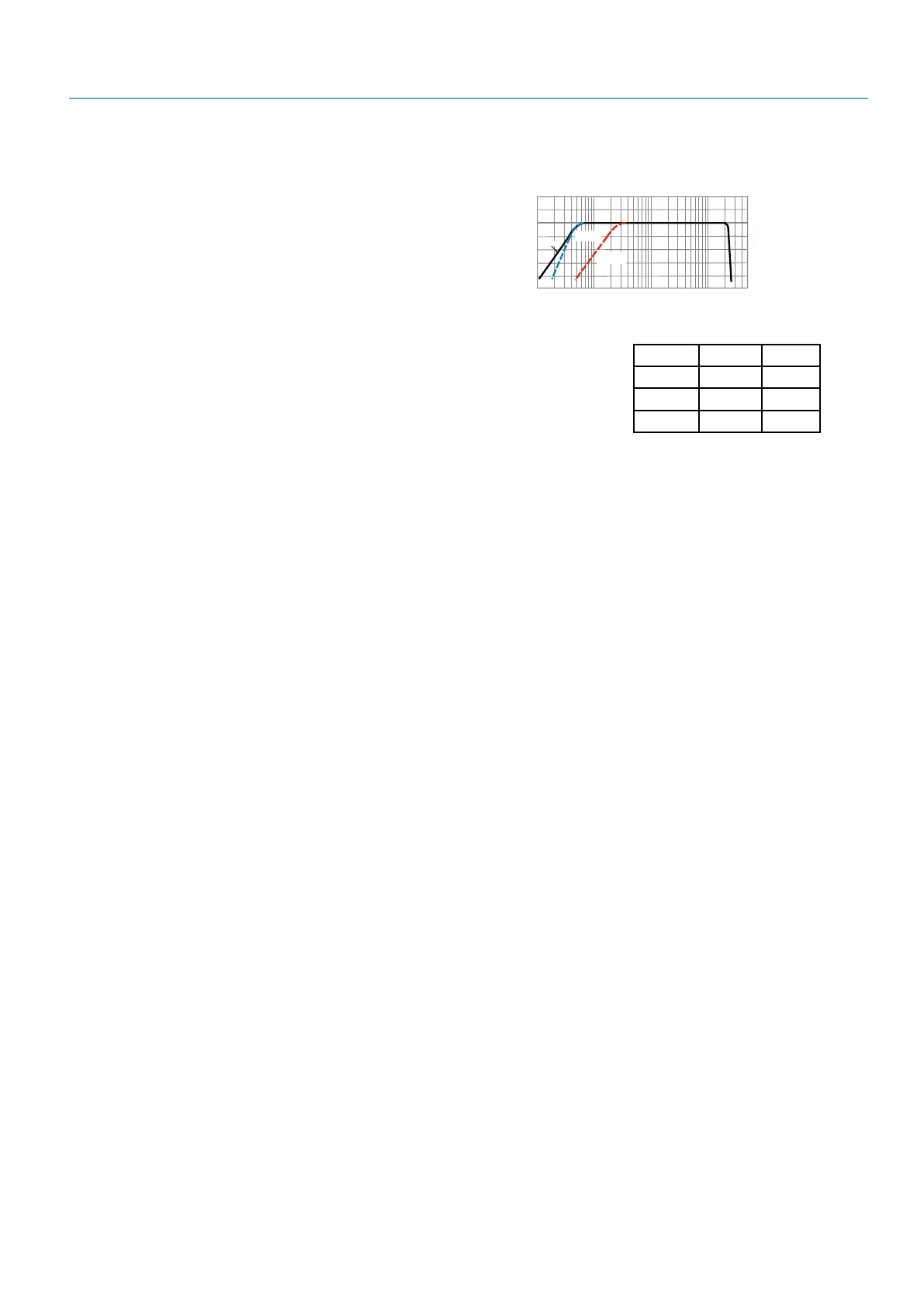

Low frequency roll-off: Adjustable from 35 to 150 Hz.
30
100
1kH
z1
0k
20k
+6
+3
0dB
-3
-6
-9
-12
Line in
Mic in 150 Hz
Roll-off
Mic in 35 Hz
Roll-off
Audio Frequency Response: 35 Hz to 20 kHz, +/-1 dB (The low frequency
roll-off is adjustable - see graph above)
Signal to Noise Ratio (dB):
(overall system, 400 Series mode)
SmartNR No Limiting w/ Limiting
OFF 103.5 108.0
NORMAL 107.0 111.5
FULL 108.5 113.0
(Note: the dual envelope “soft”
limiter provides exceptionally
good handling of transients
using variable attack and release
time constants. The gradual onset of limiting in the design begins below full modulation,
which reduces the measured figure for SNR without limiting by 4.5 dB)
Total Harmonic Distortion: 0.2% typical (400 Series mode)
Audio Input Jack: Switchcraft 5-pin locking (TA5F)
Antenna: Flexible, unbreakable steel cable.
Batteries: 1.5 Volt AA lithium or rechargeable
NiMH recommended
Battery Life: SMB/E01: 2 hours (alkaline); 7.25 hours (lithium),
5 hours with 2500mAh NiMH
SMDB/E01: 6 hours (alkaline); 14.5 hours
(lithium), 8.5 hours with 2500mAh NiMH
Weight: RM/E: 2.3 oz.. (65.8 grams) with lithium battery
SMB/E01: 2.7 oz.. (75.9 grams) with lithium
battery
SMDB/E01: 3.7 oz.. (105 grams) with lithium
batteries
Overall Dimensions:
SMB/E01 and RM/E: 2.3 x 1.8 x 0.64 inches
(not including microphone/lanyard)
58 x 46 x 16 mm
(not including microphone/lanyard)
SMDB/E01: 2.3 x 2.4 x 0.64 inches
(not including microphone)
58 x 60 x 16 mm
(not including microphone)
Specifications subject to change without notice.
