Lectrosonics SMDB/E01 Series - Operating Notes and RM Quick Reference; Transmitter Operation Notes; RM;E Quick Reference Guide

Super-Minature Belt Pack Transmitters
Rio Rancho, NM
15
Operating Notes
• Thesensitivitytothe
remote control varies with
the transmitter’s audio
level setting and the
microphone used, but it is
always possible to make
it work with a sufficiently
loud remote signal at
close range.
• Ifthetransmitteriscon-
figured to respond to the
remote control, it will do
so even if the buttons are
locked.
• Whenthetransmitteris
asleep, it can only be
awakened by the remote
control, or by removing
and reinserting the bat-
tery.
• Whenthetransmitterisasleep,thePWRled
blinks green every few seconds.
• Ifaremotecommandissentthatwouldresultin
the same display being shown again on the trans-
mitter (for example tuning to the channel already
displayed), a row of dashes is displayed briefly,
as a signal that the command was received, but it
didn’t change anything.
• Ifyouarehavingtroublegettingthetransmit-
ter to respond, make sure you aren’t covering
the speaker w ith your thumb, and/or turn up the
speaker volume on the Loud page.
• IftheRM/Eissettoadifferentblocknumberthan
the transmitter and an attempt is made to set the
transmitter’s frequency in MHz, the command
will still work. The transmitter is simply set to the
corresponding channel in the correct block, with a
matching hexadecimal number.
• TheaudiosignalfromtheRM/Ewillchangethe
settings of all transmitters within range. Experi-
ment with this to prevent accidental changes to
another transmitter during a production.
RM Quick Reference
Power On/Off AUDIO+FREQ
Set audio level Aud page (via AUDIO)
Sleep or Wake SLEEP/unSLP page (via AUDIO)
Lock or Unlock Loc/unLoc page (via AUDIO)
Adjust RM/E volume Loud page (via AUDIO)
Set Frequency (hex) CH page (via FREQ)
Enable MHz display b (block) page (via FREQ)
Set channel (CH - MHz) 000.000 page (via FREQ)

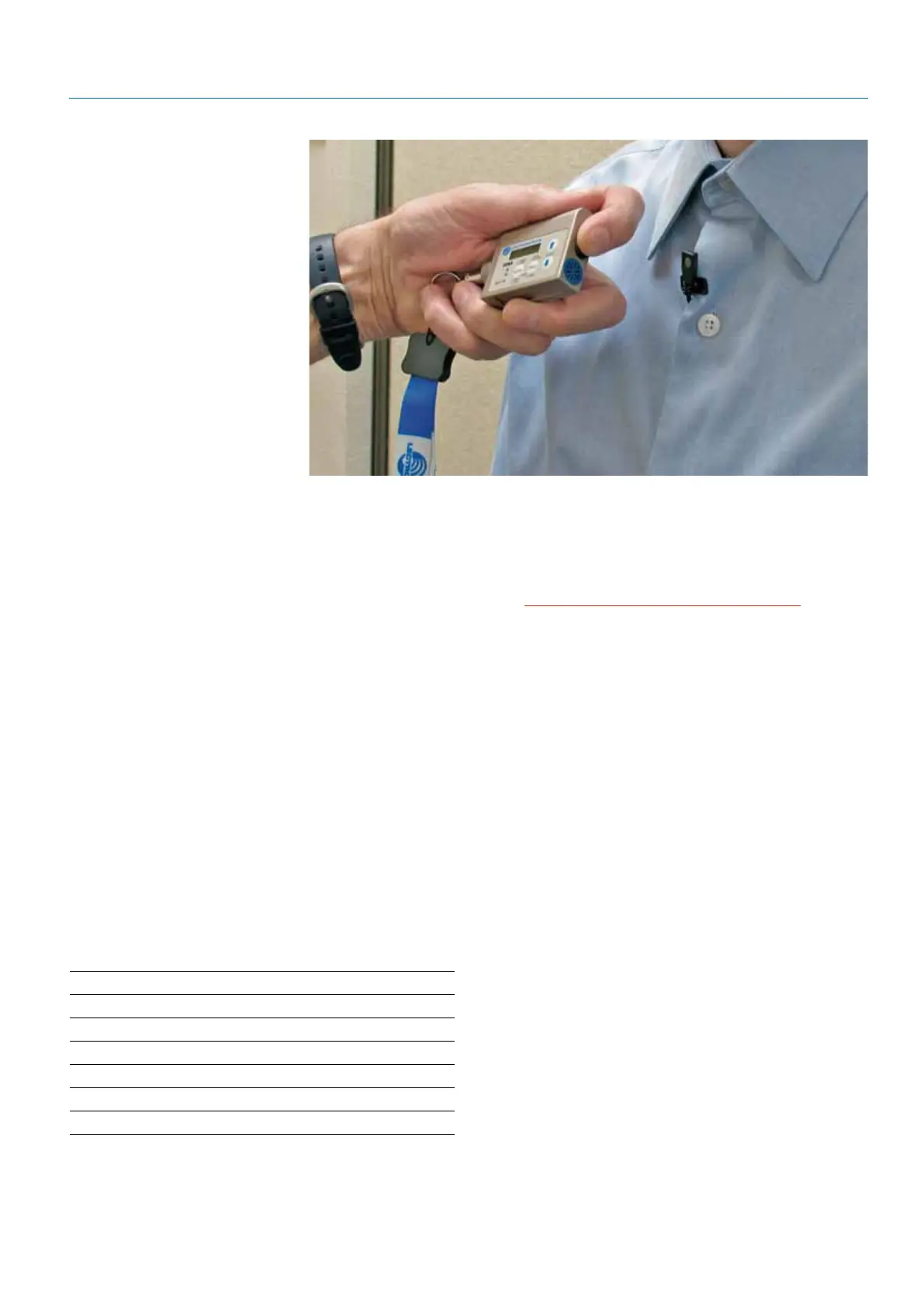

The RM/E should be held close enough to the microphone to
change the settings on the intended transmitter, and not be
loud enough to affect other transmitters nearby.
Important: The remote control (RC) mode
must be enabled on your SM Series
transmitter for the RM/E to function with
it. For instructions, refer to page 7 of this
publication.
