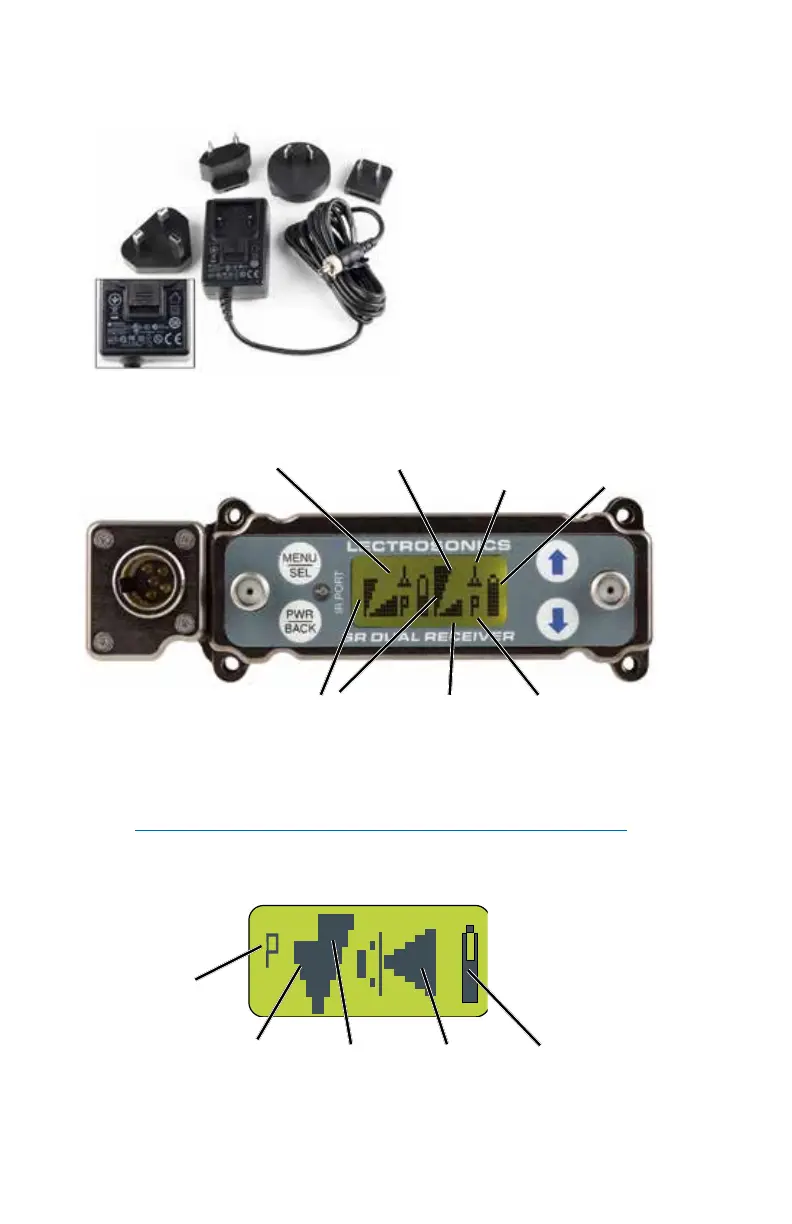

External Power Supply
DCR12/A5U
AC power supply with
interchangeable blades/posts for use
in Europe, UK, Australia and USA;
100-240 V, 50/60 Hz input; 12 VDC
(regulated), 0.3 A max. output, 6.0 W.
Sold separately.
Main Window (LCD)
RF Levels Audio Level
Transmitter
Battery Level
Pilot Tone
Indicator
Receiver 1 Receiver 2
Diversity
Activity
The Main Window displays information concerning the condition of the Pi-
lot Tone, antenna phase, RF and audio signal levels and battery conditions
for both the receiver and the associated transmitter.
NOTE: When the RATIO DIVERSITY mode is selected, both
receivers are combined to pick up the same transmitter, so the Main
Window will display a single audio channel.
Receiver 1
RF Level
Receiver 2
RF Level
Audio
Level
Transmitter
Battery Level
Pilot Tone
Indicator
Pressing the MENU/SEL button accesses the menus and screens for set-
ting up the receiver and searching for clear frequency channels.
To Next Page
