UMBRELLA
58

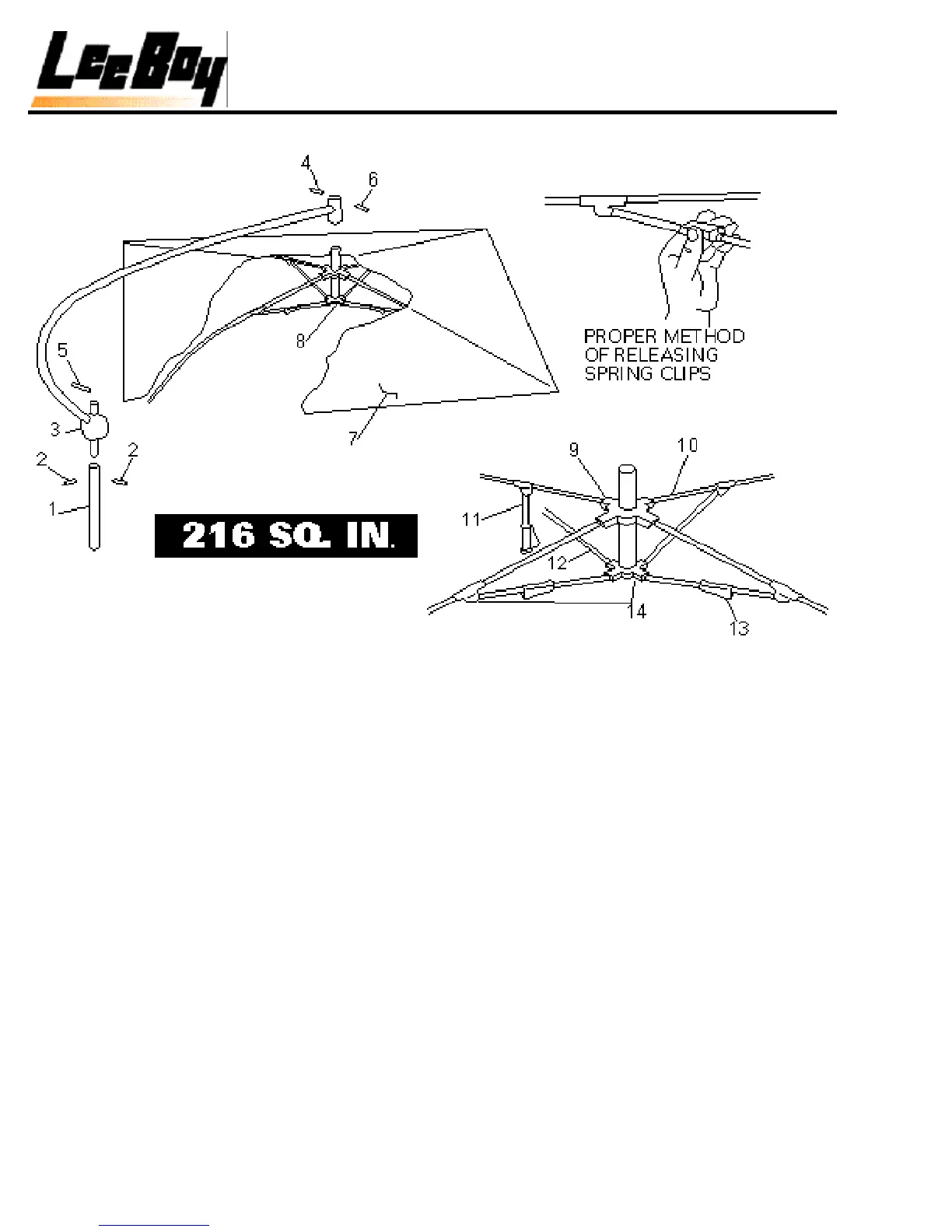

ASSEMBLY INSTRUCTIONS
1. Install Umbrella Mounting bracket (See bracket mounting instructions furnished with each
bracket).
2. Insert ball stud on (#3) curved shaft into (#1) umbrella support shaft, align holes, and
drive (#2) 3/16” X 1” spiral spring pins into position. Install (#5) locking handle.
3. Place (#7) canvas cover over (#8) umbrella frame assembly and hook corners to bows –
tie each bow securely with tie straps.
4. Insert (#8) umbrella frame assembly with canvas in place into tube on (#3) curved shaft
and insert (#6) bolt. Tighten snugly with nut (#4).
5. Install complete umbrella into clamp on umbrella mounting bracket.
Each bow may be raised individually until locked into open position. Each bow has two
positions in which it can be locked open. This is to allow for arc stretch in canvas.
•Part No. varies with color.
