CONTENTS
1  INTRODUCTION
ALPTEC controllers are designed to oer cutting-edge functions for power factor correction applications. Built with dedicated components and extremely
compact, ALPTEC combines an interface with a modern design, ease of installation and the option of extension at the rear where an EXT extension module can
be connected. The LCD screen oers a clear, intuitive user interface.
2  DESCRIPTION
- Automatic power factor controller
- Mounted on front panel on door or faceplate

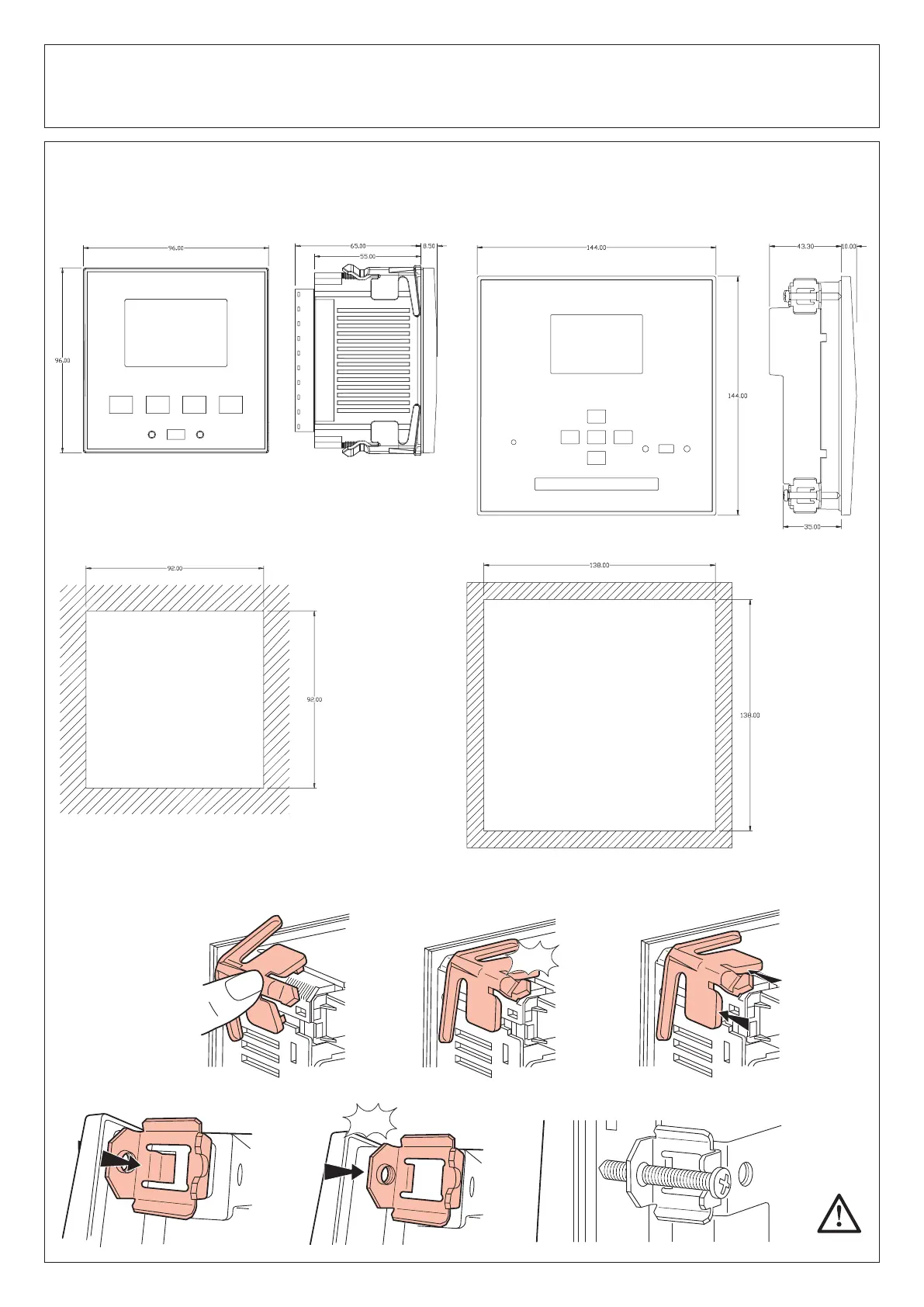

- Overall controller dimensions:
- Cut-outs for mounting:
- Installation:
ALPTEC 3.2/5.2 and 8.2 controllers are designed to be ush-mounted in your installation.
The protection class on the front is IP54 if they have been installed correctly.
ALPTEC 3.2/5.2 mounting
CLIC
ALPTEC 3.2  ALPTEC 5.2
ALPTEC 3.2  ALPTEC 5.2
ALPTEC 8.2
ALPTEC 8.2
CLIC
0.5 Nm max.
ALPTEC 8.2 mounting
