sCs Bus automation system
Room 1Room 2
Controls
Actuators
Group 1
control
Group 2
control
General
control
A = 1
PL = 1
G = 1
A = 1
PL = 2
G = 1
G = 2
A = 1
PL = 3
A = 2
PL = 1
G = 2
A = 2
PL = 2
G = 1
PL = 3
A = 2
G = 1
A = 1
PL = 1
G = 1
PL = 2
G = 1
A = 1
G = 2
A = 1
PL = 3
A = 2
PL = 1
G = 2
A = 2
PL = 2
G = 1
PL = 3
A = 2
G = 1
Room 1Room 2
Actuators
Point-point
controls
Group 1
control
Group 2
control
Room 1
control
Room 2
control
Room 1
control
Room 2
control
A = 1
PL = 1
A = 1
PL = 2
A = 1
PL = 3
A = 2
PL = 1
A = 2
PL = 2
A = 2
PL = 3
A = AMB
PL = 2
A = AMB
PL = 1
A = GR
PL = 1
A = GR
PL = 2
A = 1
PL = 1
A = 1
PL = 2
A = 1
PL = 3
A = 2
PL = 1
A = 2
PL = 2
A = 2
PL = 3
A = GR
PL = 1
A = GR
PL = 2
A = GEN
PL =
A = AMB
PL = 1
A = AMB
PL = 2

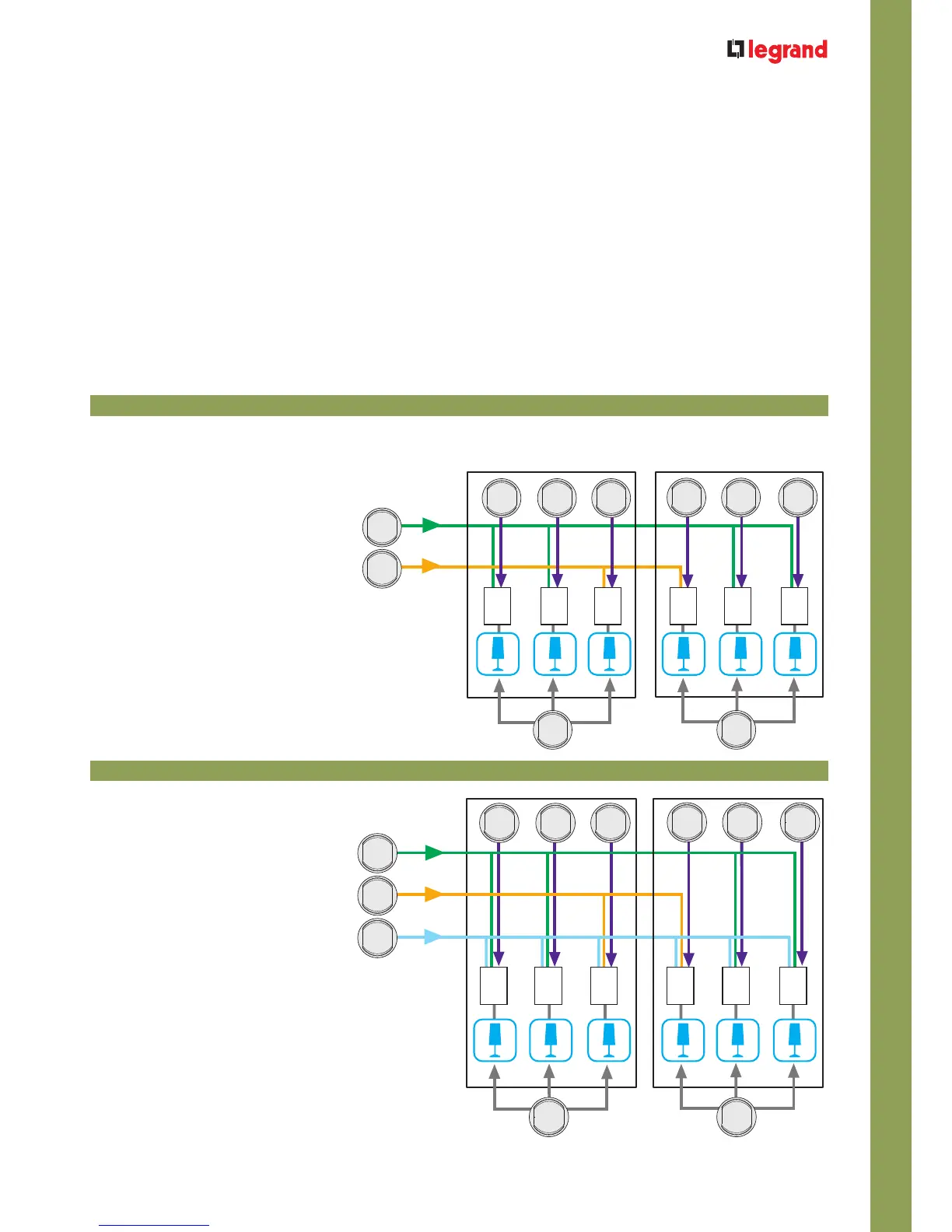

Control sent to all actuators that perform special functions, even if they belong to different rooms, identified by the sam “group number”.
Control device: A = GR PL = n*
Actuator: A = n* PL = n* G = n*
n* = any numeric configurator from 1 to 9
Example: Control of all lights of a floor on the North side of the building
Example: control of all building lights
Group control
Room 1Room 2
Controls
Actuators
Group 1
control
Group 2
control
General
control
A = 1
PL = 1
G = 1
A = 1
PL = 2
G = 1
G = 2
A = 1
PL = 3
A = 2
PL = 1
G = 2
A = 2
PL = 2
G = 1
PL = 3
A = 2
G = 1
A = 1
PL = 1
G = 1
PL = 2
G = 1
A = 1
G = 2
A = 1
PL = 3
A = 2
PL = 1
G = 2
A = 2
PL = 2
G = 1
PL = 3
A = 2
G = 1
Room 1Room 2
Actuators
Point-point
controls
Group 1
control
Group 2
control
Room 1
control
Room 2
control
Room 1
control
Room 2
control
A = 1
PL = 1
A = 1
PL = 2
A = 1
PL = 3
A = 2
PL = 1
A = 2
PL = 2
A = 2
PL = 3
A = AMB
PL = 2
A = AMB
PL = 1
A = GR
PL = 1
A = GR
PL = 2
A = 1
PL = 1
A = 1
PL = 2
A = 1
PL = 3
A = 2
PL = 1
A = 2
PL = 2
A = 2
PL = 3
A = GR
PL = 1
A = GR
PL = 2
A = GEN
PL =
A = AMB
PL = 1
A = AMB
PL = 2
Sent to all system actuators.
Control device: A = GEN PL = /
Actuator: A = n* PL = n* G = n*
General control
