When creating a My Home Legrand system, it is recommended that the controls are installed following some rules that will
both facilitate and enhance the use of the system.
GENERAL CONTROLS
It is preferable to install general controls for SHUTTERS and LIGHTS
nearby the main entry of the house, so that lights may be switched
on and off, and shutters may be opened or closed, from a single
point, before going out, or when coming back in the house.
bedroom
bathroom
kitchen
main
bedroom
living room
General lights
controls
General shutters
controls
GENERAL ROOM CONTROLS
bedroom
bathroom
kitchen
main
bedroom
living room
General room controls may be used to control a range of
actuators. They should be installed by the entrance of the room to
be controlled.
LIVING AREA control
(switches on or off all living room
and kitchen lights)
NIGHT AREA control
(switches on or off all the
bedroom lights)

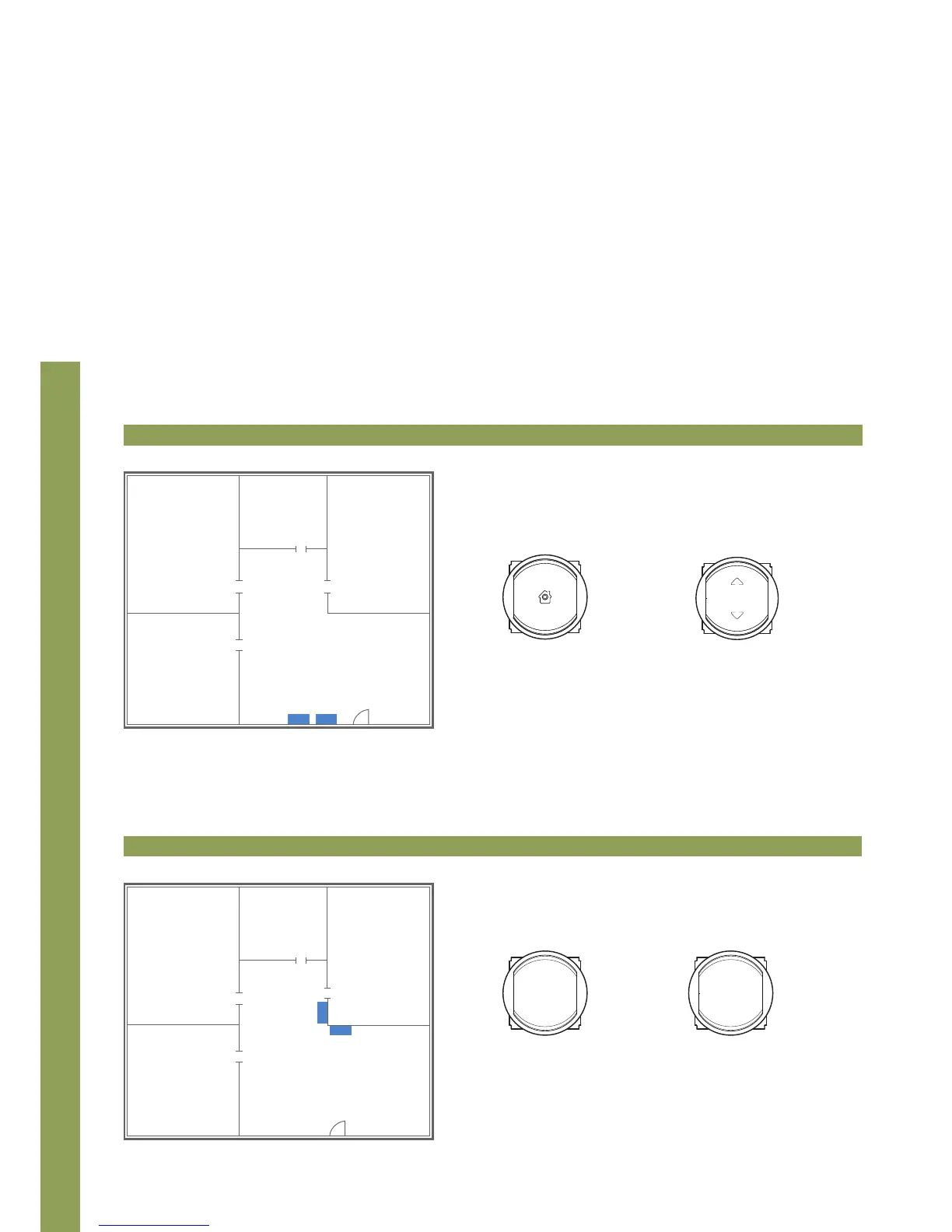

Positioning of controls:
practical installation examples
