Leica FlexLine - Offset

FlexLine/FlexLine plus, 32
Offset
5Offset
5.1 Overview
Description The Offset application is used:
• to record sections of the tunnels for volume computation and mapping.
• to input an offset value, left, right, up or down.
• to compute, after measurement, the actual coordinates of the tunnel walls.

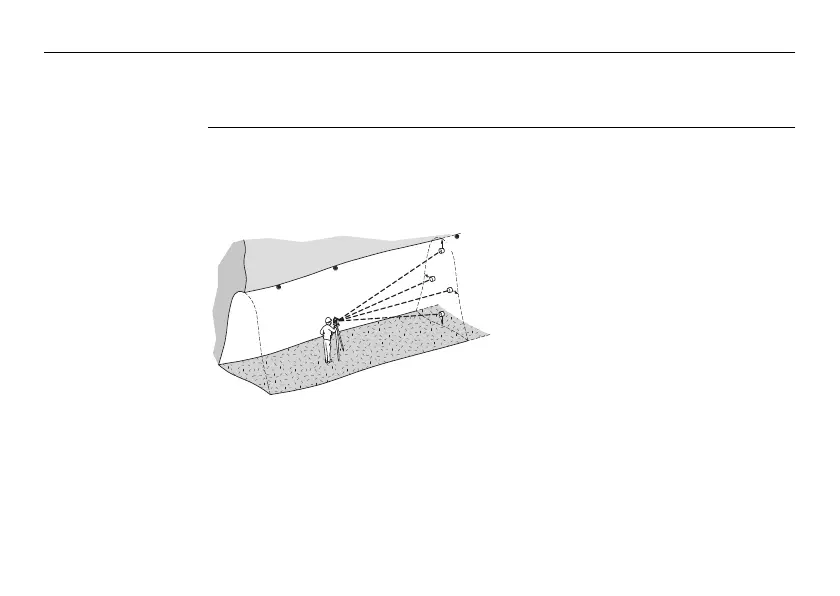

P0 Station
P1 Backsight point
P2 Foresight point
aUp
bLeft
cRight
dDown
Known
• Coordinates of station
• Coordinates of backsight point
• Offset value
Unknown
• Point coordinates of the tunnel walls
TSOX Mining 010
a
b
c
P0
P2
P1
d
