GR30/GM30/GR50, Installation
31
Wall / Cabinet
Mount
Together with the wall mount accessory kit the instrument can be easily mounted onto
an existing wall or structure, or inside an environmental case.
If space in the cabinet is limited, then the rubber bumpers on the instrument
can be removed. If the bumpers are removed, please remove the small feet
from the mounting brackets.
The radio/GSM antenna must be installed on the outside of the rack if a slot-
in or serial device is used.
Free Standing /
Stacking
The instrument is designed to allow stable free standing installation and stacking for
easy configuration of multiple receivers.
When stacking multiple instruments on top of each other, the rubber bumpers
must be on.

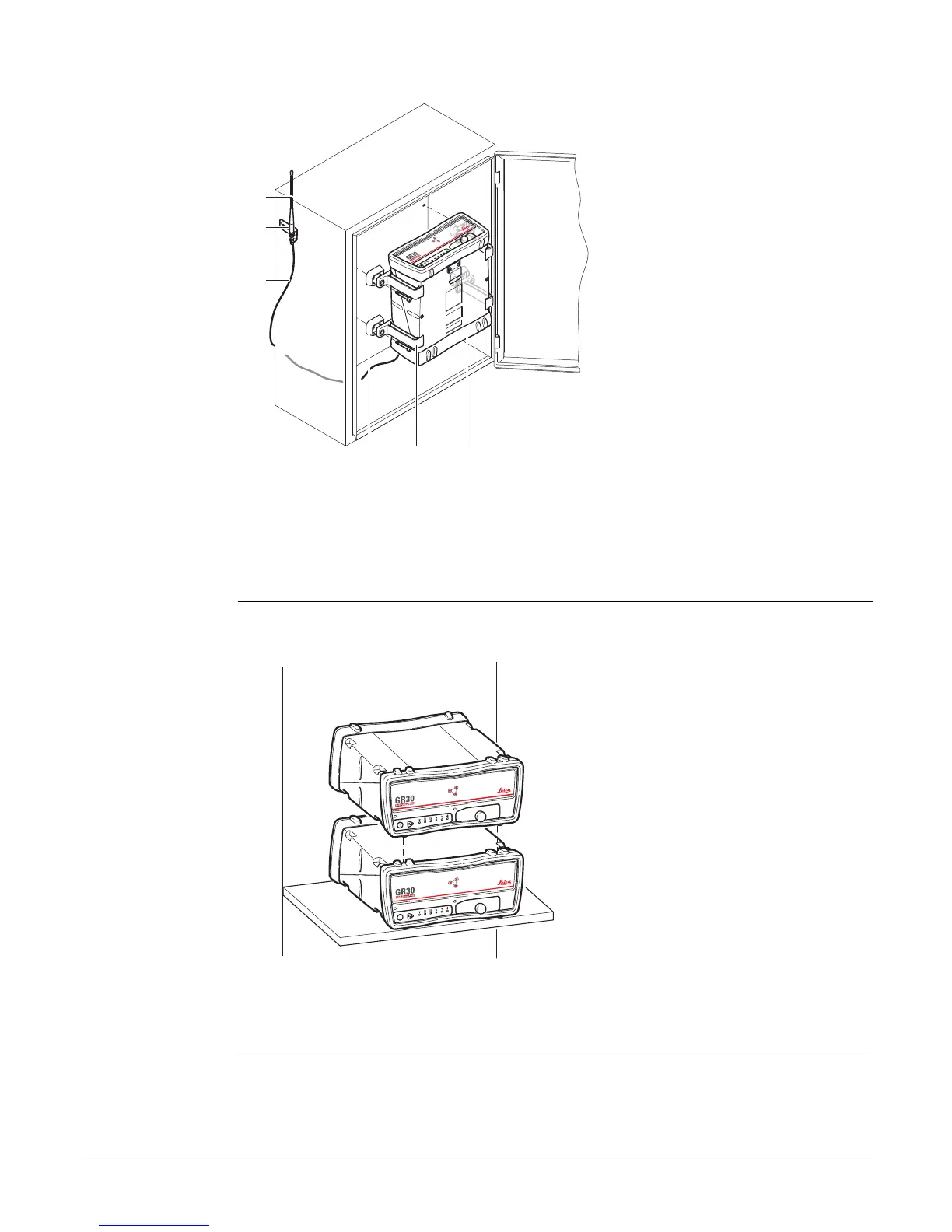

a) Radio/GSM antenna
b) Antenna bracket
c) Radio/GSM antenna
cable
d) Wall mount kit - feet
e) Wall mount kit -
bracket
f) Rubber bumper
a
b
d
c
e
f
011643_001
011644_001
