Instruction manual V3.2 – 02/2002
6. Unpacking and installation
Fig. 12.2
Fig. 12.1
5
4
6
7
2
1
3
6.1 Unpacking
Upon arrival of the box, please check the Tip’n
Tell indicators on the outside of the box.
If the tip of the arrow is blue, the shipment was
handled improperly.
In that case, please make a corresponding
note on the shipping documents and check the
contents for damage.

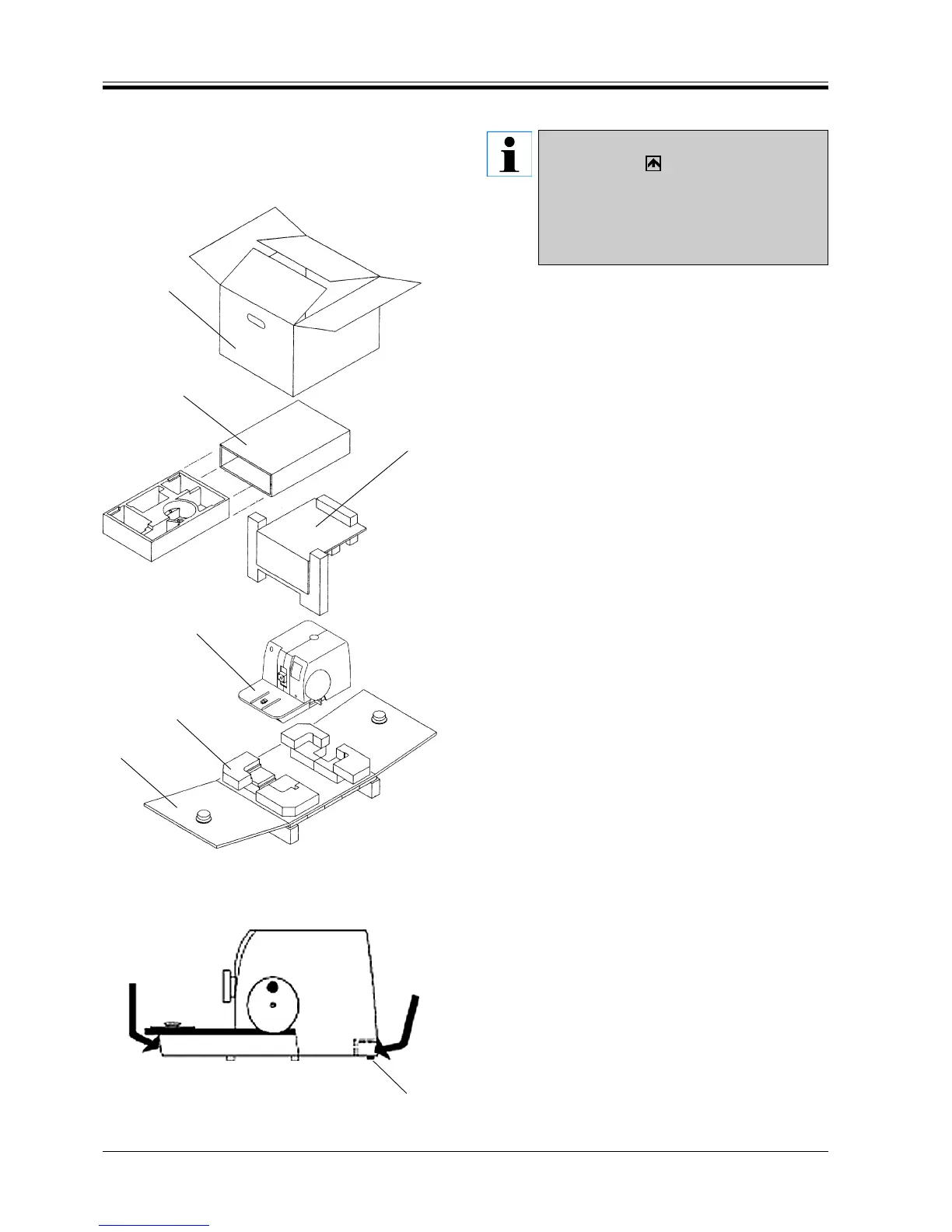

6.1.1 Cardboard box
• Cut off the steel bands on the outside of the card-
board box.
• Open the outer cardboard box (1).
• Take out the accessory box (2) and the instruction
manual.
• Remove the outer cardboard box (1) by lifting it up-
wards.
• Fold down the lateral parts of the inner cardboard
box (6).
• Take out the fixing module (3).
• Lift the instrument (4) from the foam stabilizers (5)
holding it at the front of the base plate and at the
recessed grip at the rear (Fig. 12.2).
• Place the instrument on a stable laboratory bench.
The instrument is equipped with two slide faces (7) at
the rear of the base plate to facilitate repositioning on
the work bench.
• To move the instrument, slightly lift it at the front of
the base plate and slide it to the desired location on
the slide faces.
