Picture mode
Histogram
The histogram depicts the brightness distribution in the picture.
The horizontal axis shows the brightness values from black (left)
through gray to white (right). The vertical axis corresponds to the
number of pixels of each brightness level.
This form of representation enables the exposure setting to be
assessed quickly and easily along with the overall impression of the
image itself.
The histogram is available in both picture and review modes.
For picture mode
see p. 136 Fig. 21d
► INFO 3x
For review mode
see p. 136 Fig. 22c
► INFO 2x
Select an option with clipping function if you want excessively
bright sections of the pictures to be indicated
see p. 136 Fig. 22d
► INFO 3x
In addition to the black/white histogram, in review mode you also
have the option of an RGB histogram, in which the brightness
values for the three colors red, green, and blue are represented
separately:
► Select the required setting in

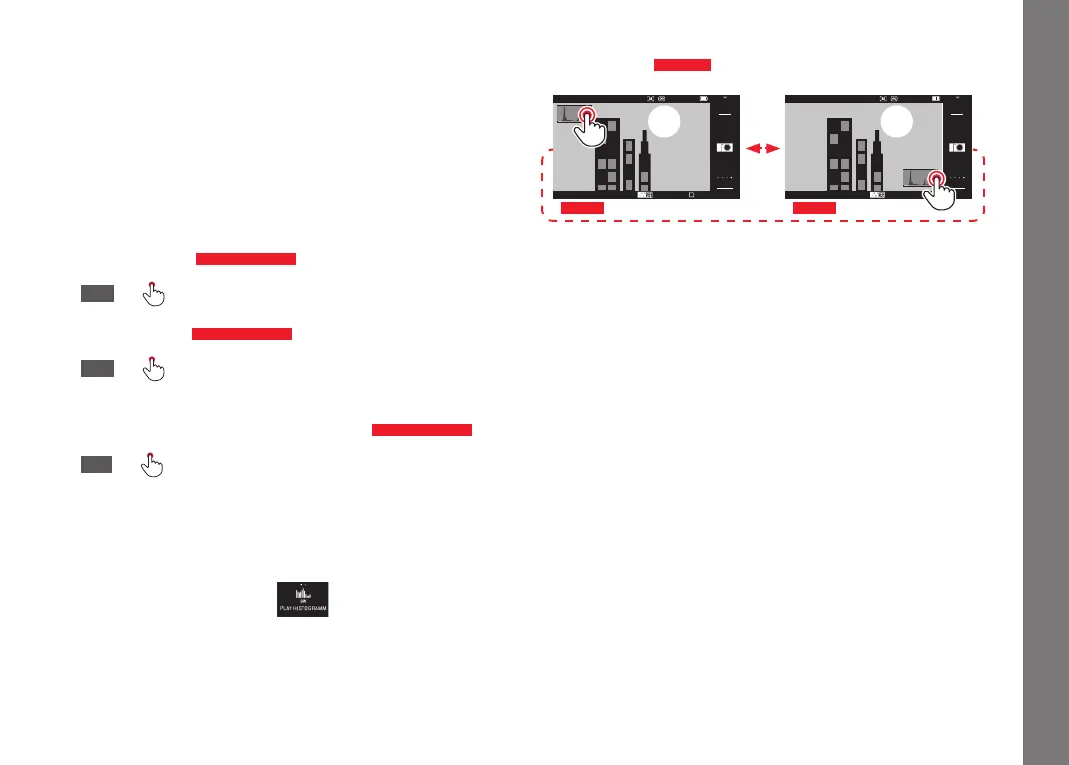

The histogram can also be moved to the bottom right corner of the
monitor screen*
Fig.50 a/b
.
1/602.8F
A
823416MP
AWB
SD
INFO
1/602.8F
A
823416MP
AWB
SD
INFO
Fig. 50a Fig. 50b
Notes:
• For a picture with fl ash, the picture histogram cannot represent
the fi nal exposure as the fl ash is fi red after the display.
• In picture mode, the histogram should be seen as a "trend", not
as a refl ection of the exact numbers of pixels.
• The review histogram is not available for simultaneous review of
several smaller pictures or for enlarged pictures.
• The histograms when reviewing and taking a picture may diff er
slightly from one another.
* From fi rmware version 1.2
