THE LEIGH e-BUSH AND OPTIONAL GUIDEBUSHES
10
Chapter 3 Super Jig-12-18-24 User Guide
1
3
/8"
0.100
"
1
3
/16"

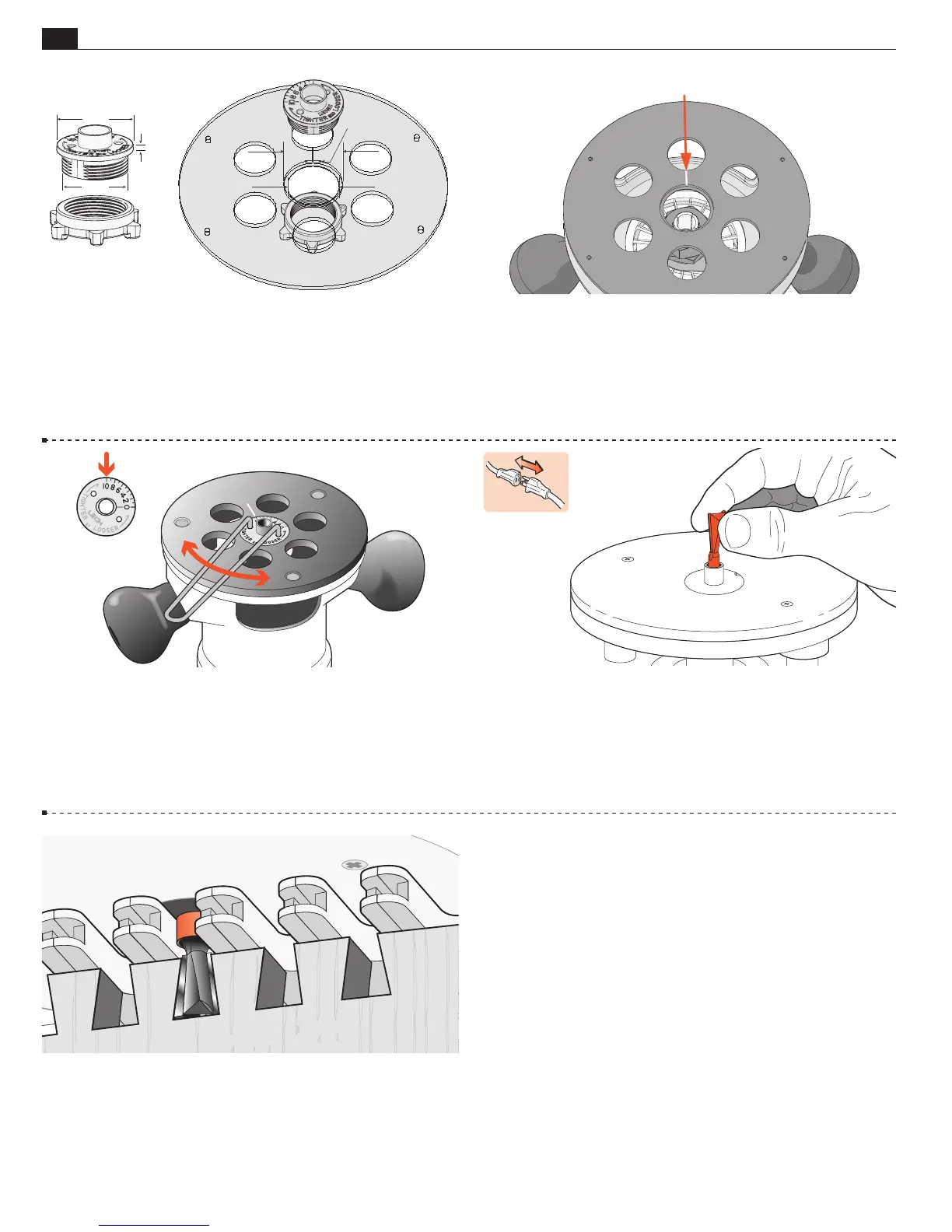

3-7 Use the pin wrench to align the No. 10 on the eBush to the
reference line on the router base. The No.10 setting is used for all
through and variably spaced half-blind dovetails on Superjigs.
Settings for single pass half-blinds, box joints and sliding dove-
tails are described in applicable chapters. Be sure to retighten the
e-Bush nut after each adjustment.
3-8 The bit goes through the guidebush and fits in the router
collet or chuck.
3-9 The projecting part of the guidebush runs along the side
edge of the guide finger. The rotating bit cuts the wood only, and
touches neither the guidebush nor the guide surface.
■
3-6 Think of the router base as a clock face. Make a small scratch
line or permanent ink mark on the router base or e-Bush adaptor
at the 12 o’clock position
. This will be your reference mark for
all e7-Bush settings.
12 o'clock
3-5 To fit the Leigh eBush directly to your router, the router
base must have a 1-3/8" diameter counter bore. If your router
base does not have the correct counter bore, you will need a guide
bush adaptor or aftermarket router base plate. Leigh offers several
guide bush adaptors to fit many common routers. See the Guide
Bush Adaptor Selection Chart in Appendix 1, page 68.
1
3
/8"
1
3
/16"
0.100"
