Leigh Super12 - Leigh Half-Blind Dovetail Bit Specifications

73
BIT SELECTION
Appendix iiSupe r Jig-12-18-24 User Guide
A B C D E F Guidebush
Bits Overall Diameter Working Depth Shank Diameters Shank Length Overall Length Angle Diameter
HB Variable HB 1-Pass
No. 101-8 1/2" [12,7] ~5/8" [16,0] ~7/16"[11,1] 8mm 1-3/4" [45,0] 2-3/8" [60,0] 10° e7 or 711C 7/16" [11,1]
Numbers in brackets are millimeters * Bits 80-8, 120-8, and 140-8 come standard with Leigh Super Jigs
Joint from Bit No. 80 for drawer front
A
B
F
80-8
Joint from Bit No. �0�, �0�-8
A
B
F
Cutter �0�-8 bw dim
C
F
A
B
D
E
101-8
112-8
Joint from Bit No. 112, 112-8
A
B
F
Cutter 112-8 bw dim
C
F
A
B
D
E

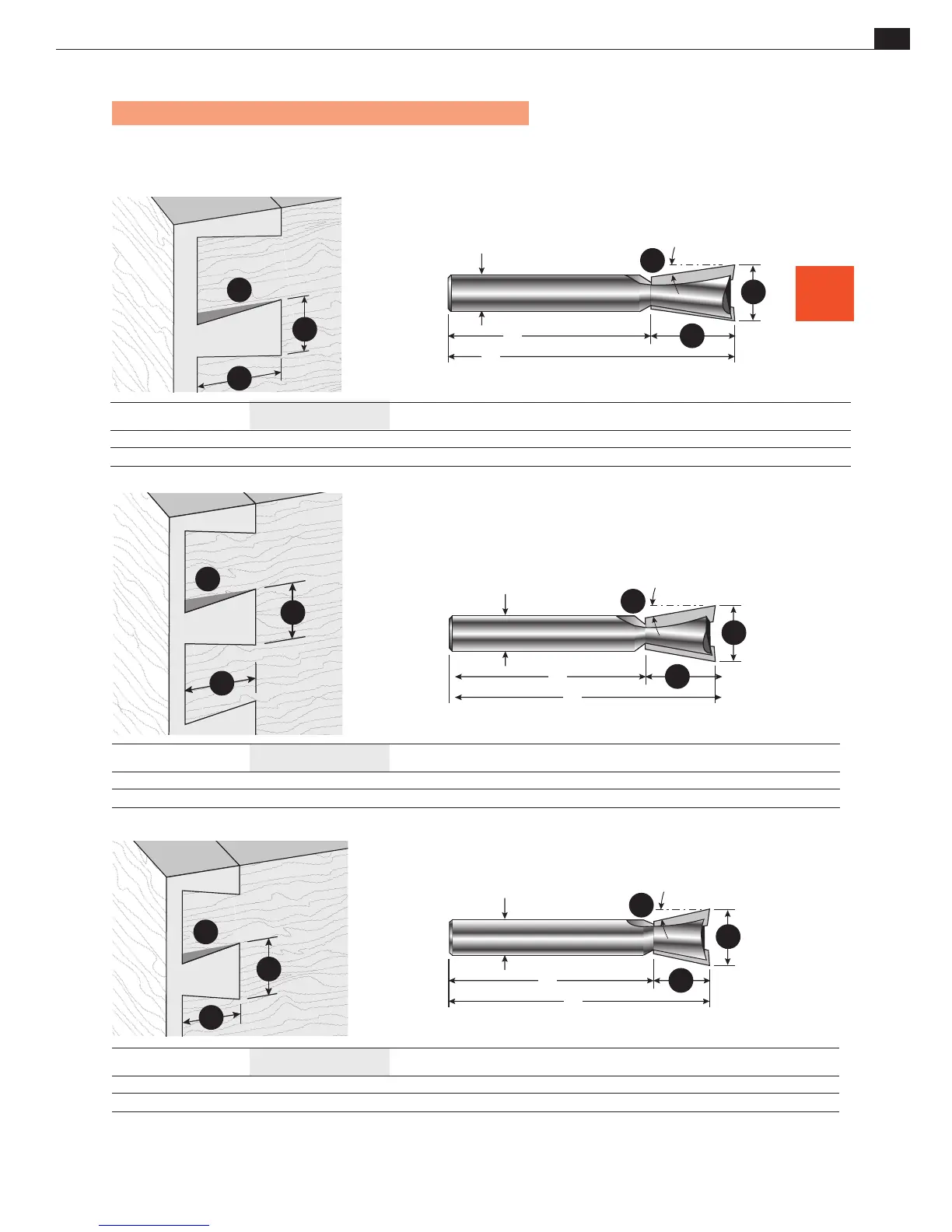

Leigh Half-Blind Dovetail Bits
Note: Bit and joint drawings are about actual size.
A B C D E F Guidebush
Bits Overall Diameter Working Depth Shank Diameters Shank Length Overall Length Angle Diameter
HB Variable HB 1-Pass
No. 112-8 1/2" [12,7] ~1/2" [13,0] ~3/8" [9,5] 8mm 1-3/4" [44,0] 2-21/64" [59] 12° e7 or 711C 7/16" [11,1]
Cutter 80-8 bw dim
C
F
A
B
D
E
A B C D E F Guidebush
Bits Overall Diameter Working Depth Shank Diameters Shank Length Overall Length Angle Diameter
HB Variable HB 1-Pass
No. 80-8* 1/2" [12,7] ~3/4" [19] ~1/2" [12,7] 8mm 1-3/4" [45,0] 2-9/16" [65,0] 8° e7 or 711C 7/16" [11,1]
Included
with
Superjig
