SUPERJIG - CHAPTER 3
The Leigh e-Bush and
Optional Guidebushes
The guidebush is the vital link between router and jig. All joints created on a Superjig are routed with the unique
e7* elliptical guidebush, a Leigh innovation that provides precise joint fit adjustment for box joints and sliding dovetails.
If your router doesn’t accept the e7-Bush, you can use an alternative guidebush with some limitations.
*Supplied with each Superjig. U.S. Patent No. 8,256,475. UK Patent No. GB2443974. Patent Pending in Canada.
9
3-1 The Leigh e7-Bush
is used to rout through, half-blind,
single pass half-blind and sliding dovetails on a Superjig. The
elliptical design provides precise joint fit adjustment for box joints
and sliding dovetails. A round
7
/16"[11,1mm] guidebush
(min.
barrel length
1
/4"[6,35mm]), can be used to rout through, half-blind,
and sliding dovetails on the Superjig, but the e7-Bush is superior.
These images were copied from D4R Pro UG Fig’s 8-42 and 3-2
1 2
7
/
16
"
[11,1mm]
[6,35mm]
1
/
4
"
min.

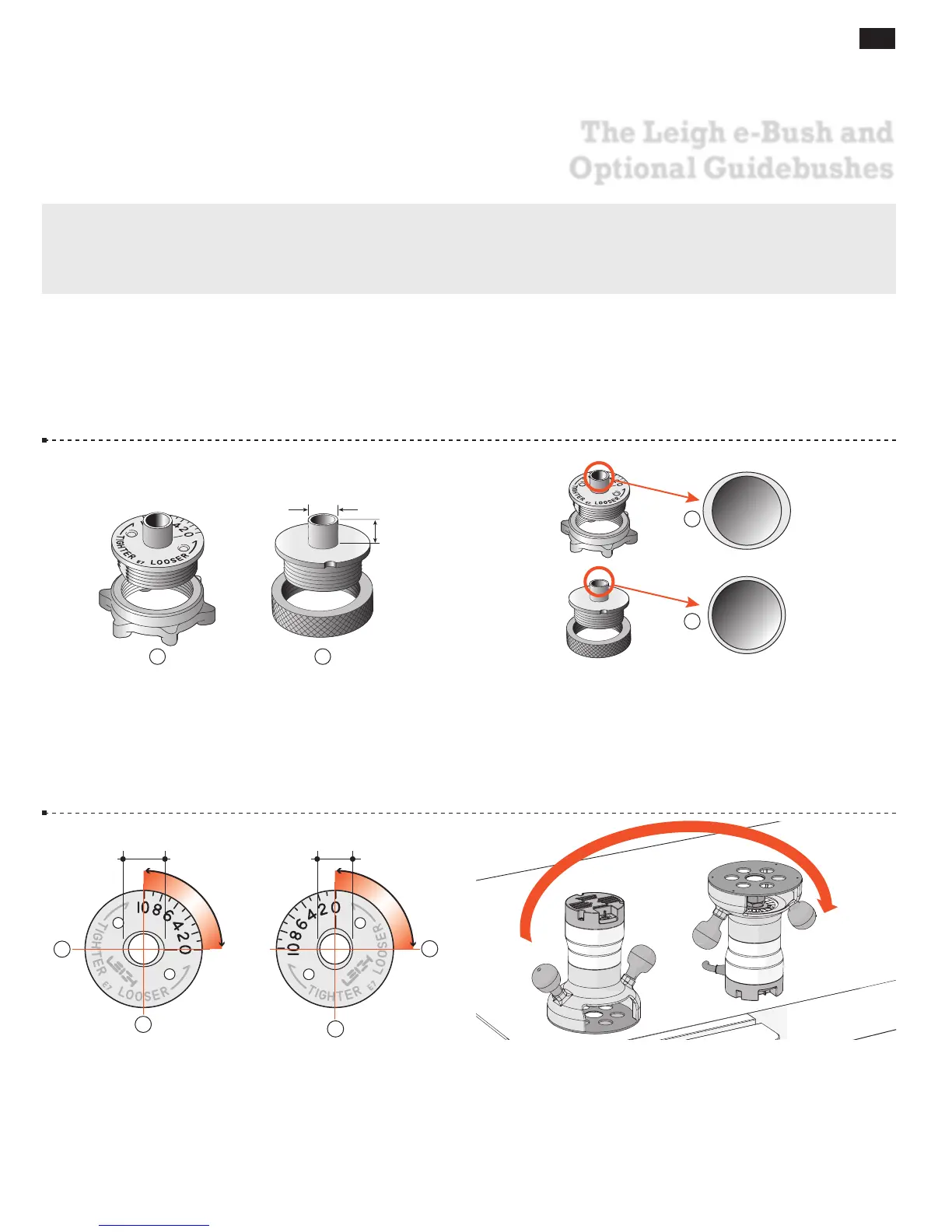

3-2 The Leigh e7-Bush that comes with your Superjig is a
unique template guidebush that is adjustable in size. Unlike regular
circular template guidebushes
, the e7-Bush is slightly elliptical
in cross section
. This simple innovation effectively changes the
guidebush “active diameter size” when it’s rotated, and provides
benefits not possible with a standard round guidebush.
1
2
3-3 The e7-Bush (
7
/16") fits the router base or a guide bush
adaptor in the base (see Appendix I). The ellipse/oval shape has
a major axis
7
/16"[11,1mm], and minor axis
7
/16"[11,1mm] less
.020"[,5mm]. Turning the e-Bush 90 degrees in the router base changes
the active diameter by .020"[,5mm] providing minute adjustment and
recordable settings for perfectly fitting box joints.
1
2
1
2
7
⁄16"[11,1mm]
7
⁄16"[11,1mm] less .020"[,5mm]
3-4 To install the e7-Bush, follow these simple steps. Hold the
router the way you normally hold and operate it on the jig. Now,
up end the router in the same orientation.
