Leigh Super12 - Leigh Half-Blind Dovetail Bit Specifications (Continued)

BIT SELECTION
74
Appendix ii Super Jig-12-18-24 User Guide

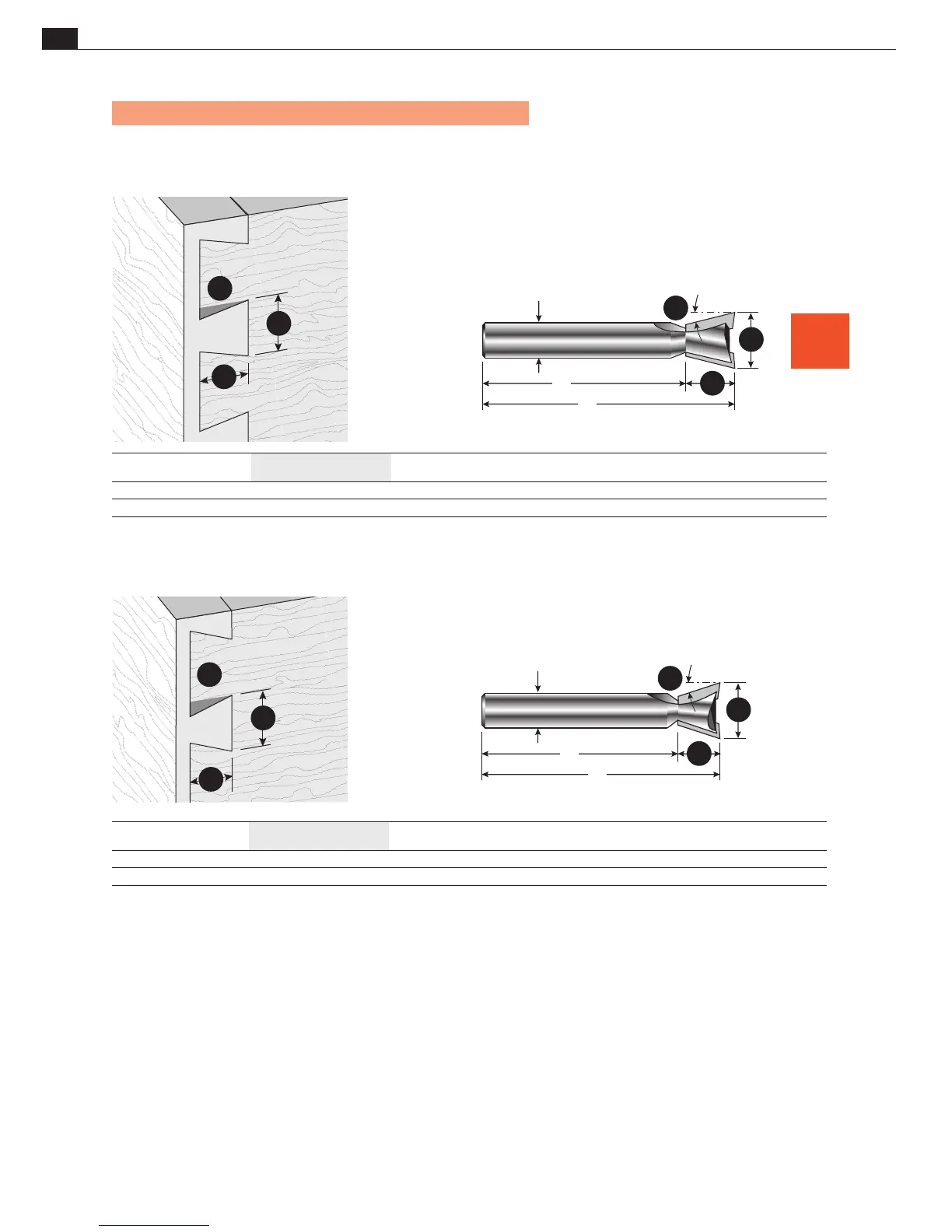

Joint from Bit No. 128
A
B
F
Cutter 80-8 bw dim
C
F
A
B
D
E
A B C D E F Guidebush
Bits Overall Diameter Working Depth Shank Diameters Shank Length Overall Length Angle Diameter
HB Variable HB 1-Pass
No. 128-8 1/2" [12,7] ~3/8" [9,5] 7/32"[5,5] 8mm 1-3/4" [45,0] 2-1/8" [54,0] 18° e7 or 711C 7/16" [11,1]
128-8
Joint from Bit No. 120, 120-8
A
B
F
Cutter 120-8 bw dim
C
F
A
B
D
E
120-8
A B C D E F Guidebush
Bits Overall Diameter Working Depth Shank Diameters Shank Length Overall Length Angle Diameter
HB Variable HB 1-Pass
No. 120-8* 1/2" [12,7] ~7/16" [11,0] ~9/32"[7,1mm] 8mm 1-3/4" [45,0] 2-1/4" [57] 14° e7 or 711C 7/16" [11,1]
Note: Bit and joint drawings are about actual size.
Numbers in brackets are millimeters * Bits 80-8, 120-8, and 140-8 come standard with Leigh Super Jigs
Included
with
Superjig
