BASIC JIG FUNCTIONS AND SCALE MODES
12
Chapter 4 Super Jig-12-18-24 User Guide

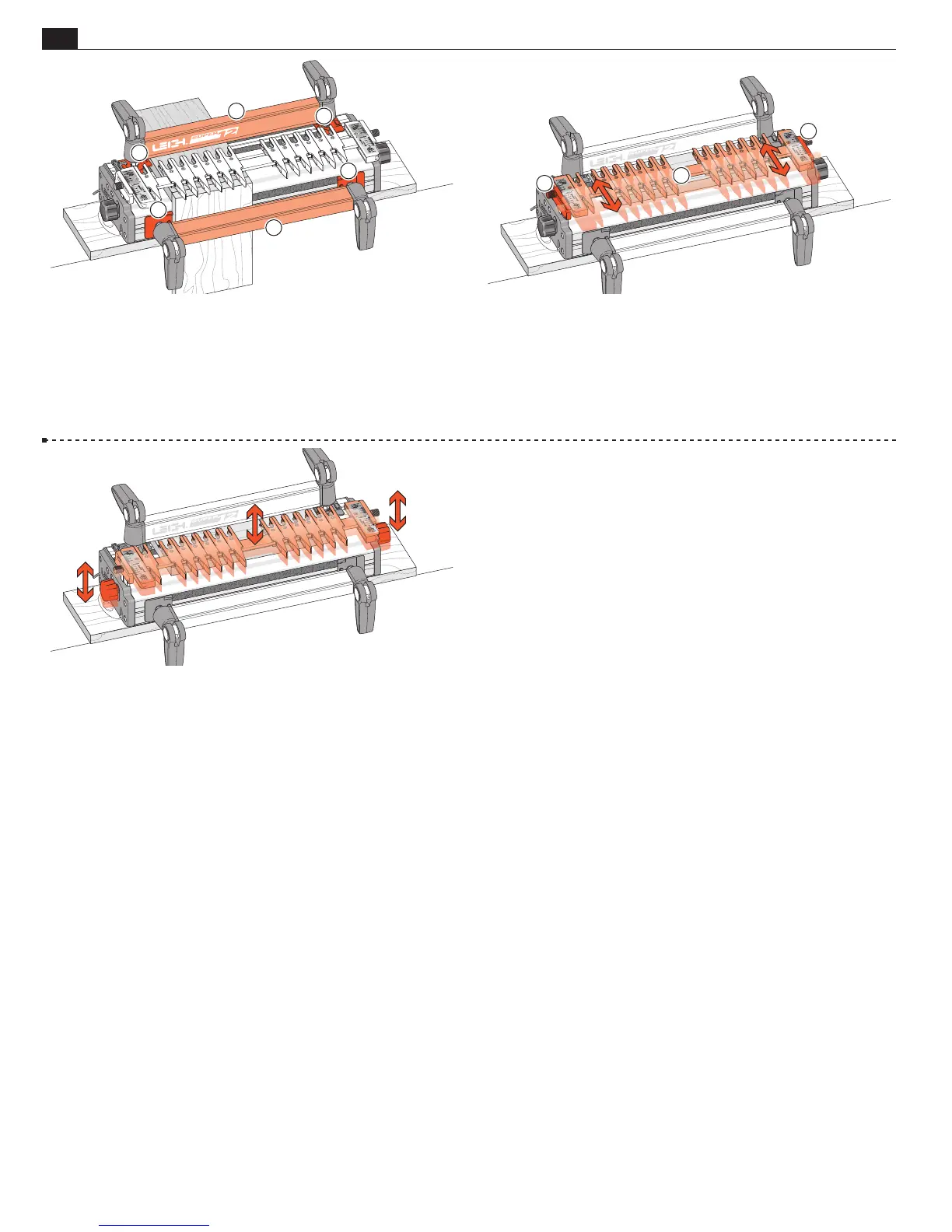

4-1 The two clamp bars
hold workpieces horizontally or
vertically. The side stops
align the boards in the correct position
each time.
1
1
2
2
2
2
4-2 The guidefinger assembly slides in the support brackets
above the workpiece. The finger assembly is adjusted in or out
using calibrated scales on each end to suit different thicknesses of
vertical boards.
1
2
2
4-3 The finger assembly is raised or lowered using the support
brackets to suit different thicknesses of horizontal boards.
■
