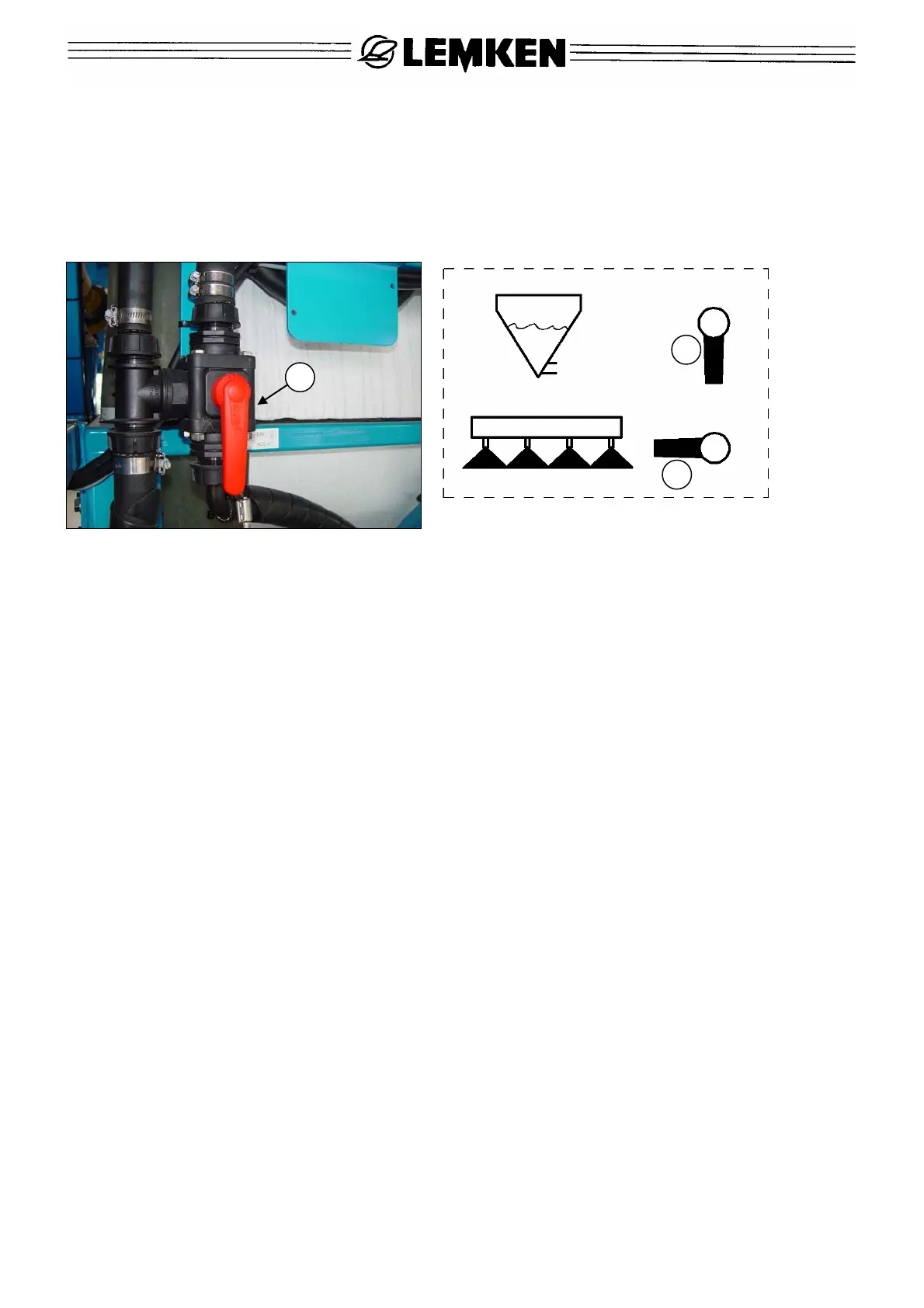

3.2.4 Distribution valve
In combination with a chemical inductor, the liquid conveyed by the pump is
delivered via the distribution valve (4) either to the spray boom or to the chemical
inductor. If no chemical inductor is present, the valve is usually in the “spraying”
position.
(a) Chemical inductor
(b) Spraying
The valve settings are described as follows in plain text on the corresponding
instruction sign:
(a) INJECTOR ON
(b) INJECTOR OFF
b
a
4
