27

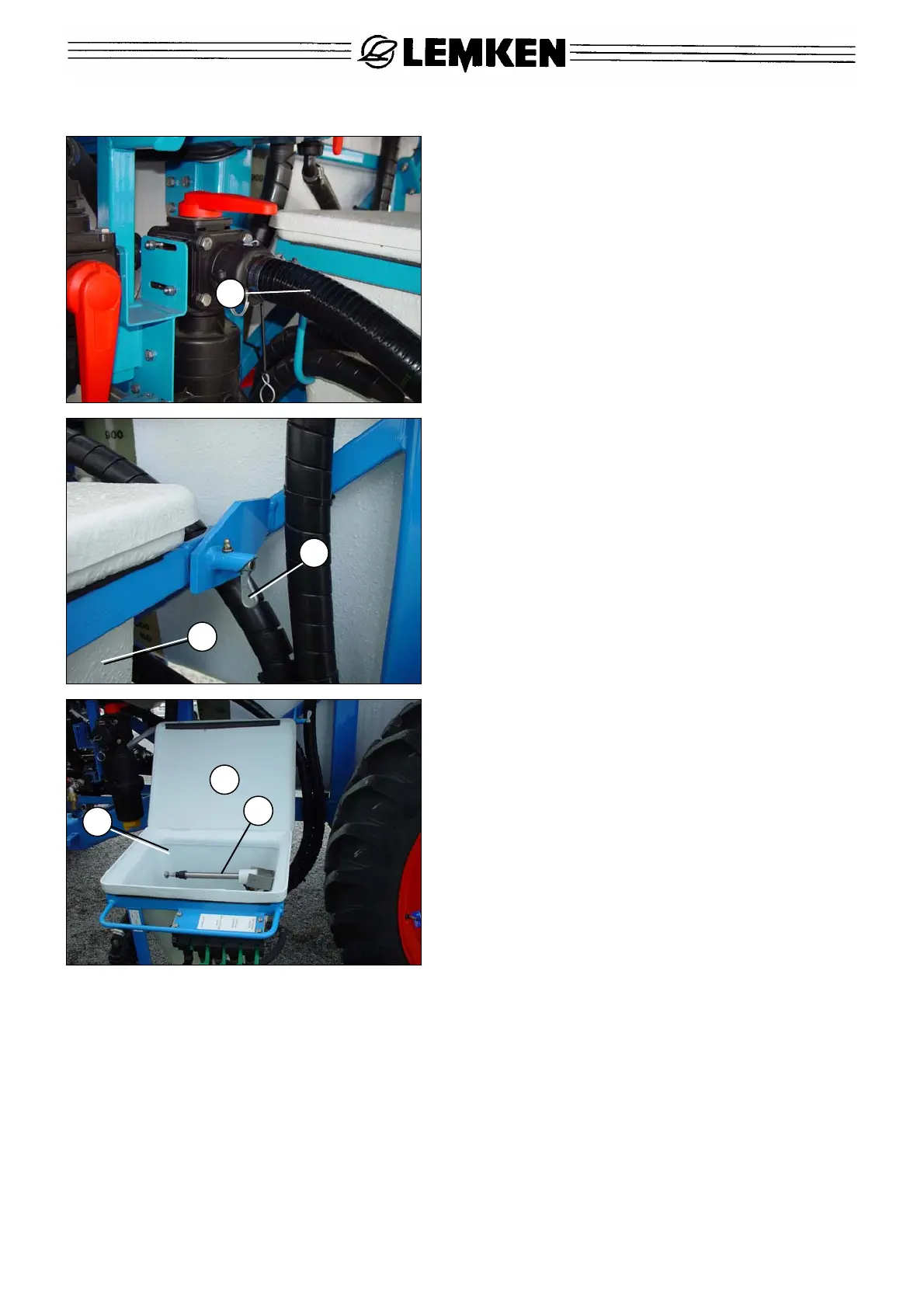

4.2.2 Filling via the chemical inductor with internal cleaning afterwards
Liquid can be suctioned from the main tank
or externally for filling spray mixture with
the chemical inductor. We recommend
filling with a filling hose due to the better
cleaning effect using the canister rinsing
nozzle and the cleaning of the induction
system.
− The main switch of the on-board
computer or operating terminal must be
in the “spray boom off” position and the
distribution valve (5) must be in the
“chemical inductor” position.
− Put selection valve in the “main tank”
position
− Connect the filling hose (1) to the filling
connection and put the filling valve in the
“external suction” position.
− Undo the lock (2) and swivel the
chemical inductor (3) downward.
− Open the cover (4) and swivel up the
canister rinsing nozzle (10).
− Activate the pump drive and operate the
pump at 400 rpm to maximum 540 rpm.
− Fill the main tank with at least 100 litres
of water or ammonium nitrate urea
solution according to the instructions of
the pesticide manufacturer.
1
3
2
4
3
10
