19

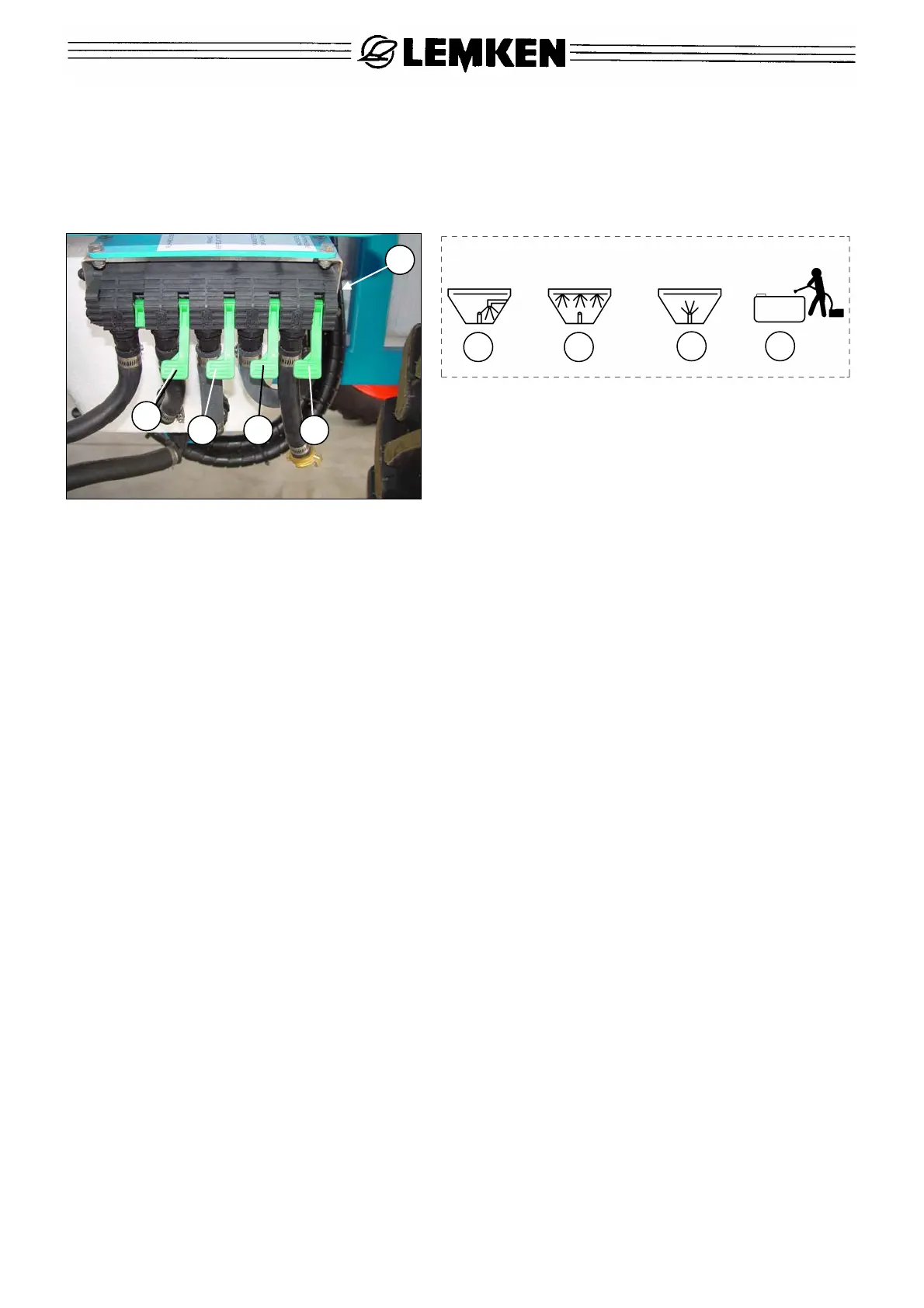

3.2.6 Valve block of the chemical inductor
All filling and cleaning functions of the chemical inductor as well as the functions
of the outside cleaning are performed using the individual valves of the valve
block (7). The distribution valve must be switched to “chemical inductor”.
Valve swivelled up = ON
Valve swivelled down = OFF
(8) Agitation of the liquid in the chemical inductor
(9) Filling the chemical inductor using boundary wetting
(10) Canister rinsing (only with clean water)
(11) Outside cleaning (only with clean water)
The valve functions are described as follows in plain text on the corresponding
instruction sign:
(8) AGITATION NOZZLE
(9) BOUNDARY WETTING
(10) CANISTER RINSING
(11) OUTSIDE CLEANING
1110
98
7
8
9 10 11
