Drawbar mounting position

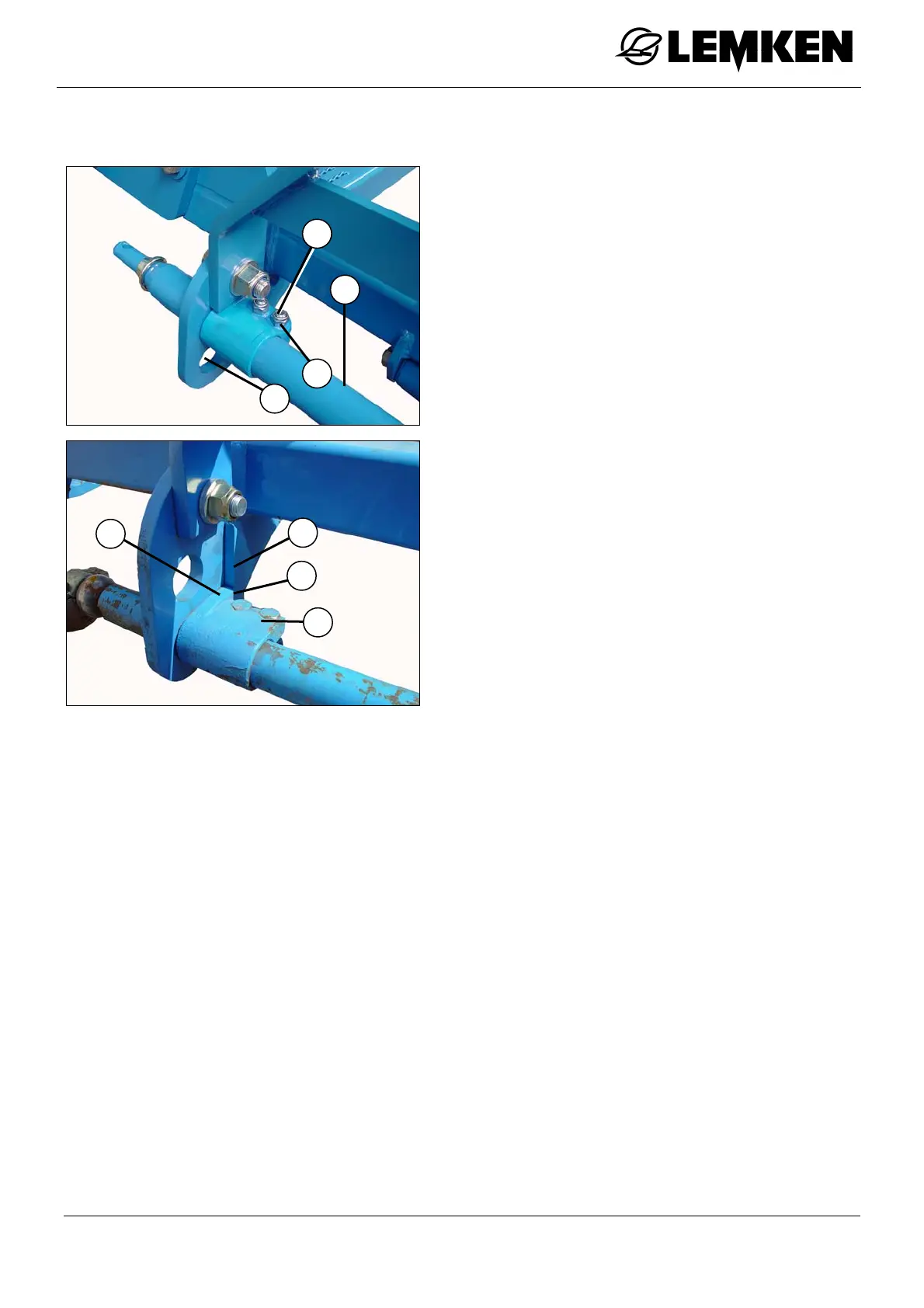

The mounting position of the drawbar (1)
with unhitched implement can be changed
as follows:
Remove the nuts (3) on the bolts (4) of
the two locking pieces (5).
Pull the drawbar (1) as far as the middle
out of the bores of the rail plates (6).
Push the locking pieces (5) down off the
drawbar (1) and deposit them on the
ground.
Pull the drawbar (1) all the way out of
the bores.
Insert the drawbar (1) into the required
bore (2) of the rail plate (6) and push
them in by approx. 50 cm.
3
2
1
4
6
5
7
8
