LEMKEN Rubin 9 U + K U - Page 84

Adjustments
82

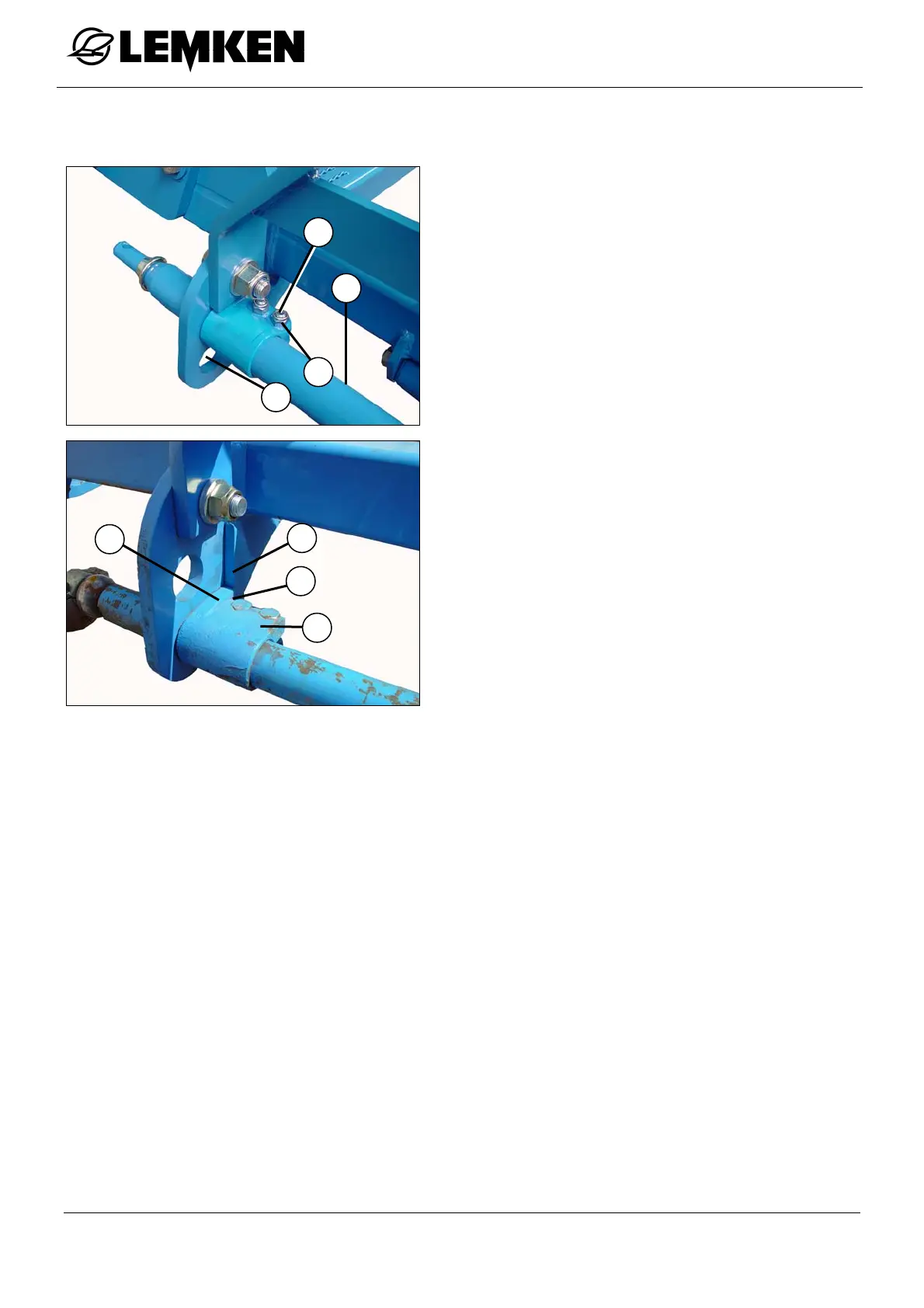

 Push the locking pieces (5) onto the
drawbar (1).
 Ensure that the side with the support
surface (7) is facing the rail plate (6).
 Push the drawbar (1) through the bores
until the two ends of the drawbar (1) on
the left and right are the same distance
from the rail plates (6).
 Push the locking pieces (5) up to the rail
plates (6).
 Ensure that the support surfaces (7) are
positioned on the stop (8) of the rail
plates (6).
 Tighten the nuts (3) on the bolts (4) (197
Nm).
3
2
1
4
6
5
7
8
