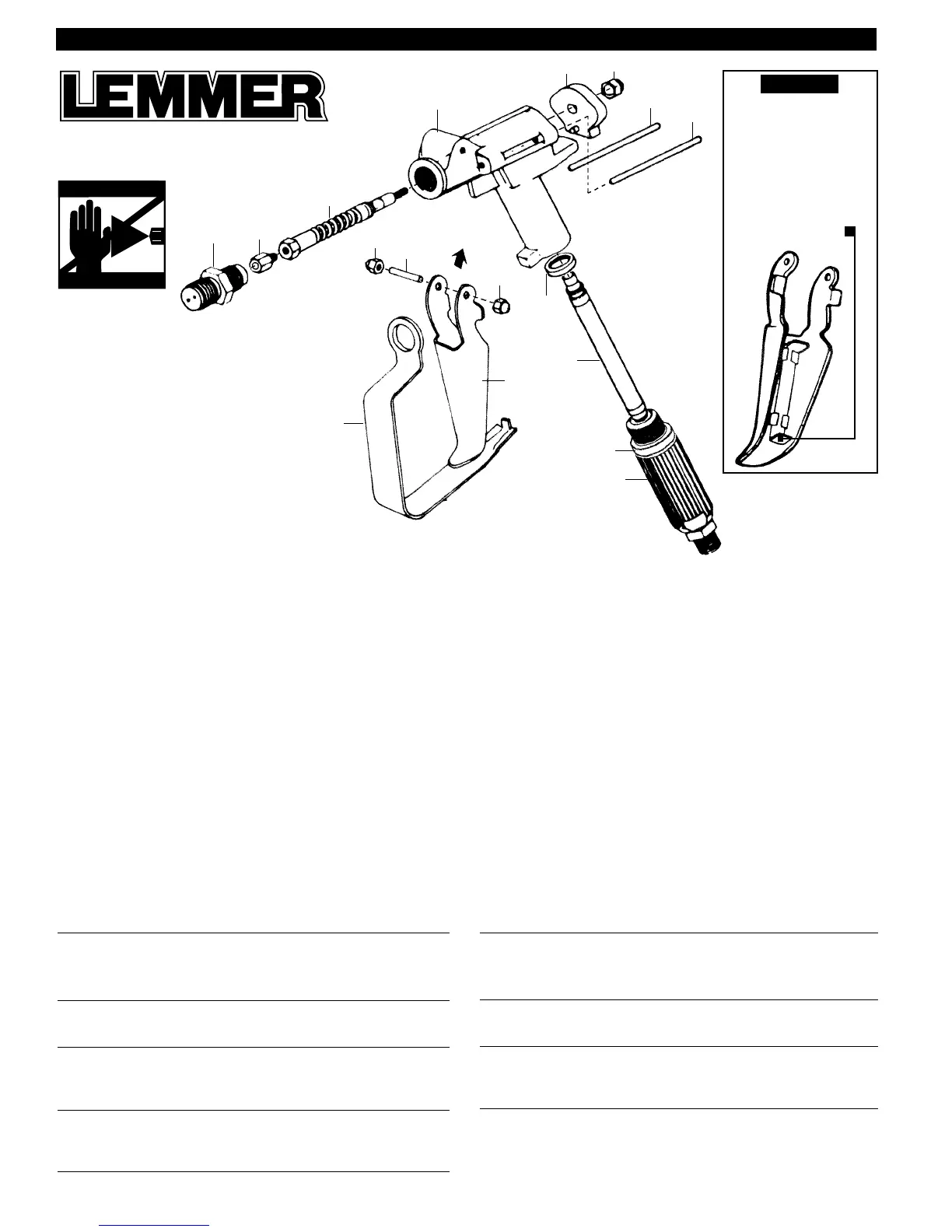

L-60 PARTS DIAGRAM & PARTS LIST
Mar13
Specifications subject to change without notice. Jun-2010
SPECIFICATIONS
Maximum pressure: 3600 psi.
Tip thread: 11/16 - 16.
Hose connection: 1/4" nps.
Wetted parts: Al,Fe,SS,TC,Cu,
Brass,Tef.
• Follow shut down procedure before servicing or cleaning equipment. (see #1 overleaf)
• This instruction sheet is only a supplement to your system operating instructions. Read your system manual
before operating any high pressure equipment.
• Remove filter for cleaning, then reinstall and hand tighten the handle.
• To clean gun: flush the inside by spraying proper solvent, and wipe the exterior. (It is not neccessary to disassemble gun components under normal
circumstances).
• Injection hazard: Airless Painting Equipment can cause serious injury if the spray penetrates the skin. Do not point the gun at anyone or any part of the
body. The tip guard provides some protection against accidental injection injuries, but is mostly a warning device. Never put your hand, fingers or body
over the spray tip. Gloves and clothing do not necessarily offer any protection either. Keep the gun trigger safety lever in locked postion when not
spraying. Always have the tip guard in place while spraying.
In case of penetration seek medical aid immediately!
Note to physician
: Injection into skin is a serious traumatic injury. It is important to treat
the injury surgically as soon as possible. Do not delay treatment to research toxicity. Toxicity is a concern with some exotic coatings injected
into the bloodstream. Consultation with a plastic surgeon or reconstructive hand surgeon may be advisable. Be prepared to tell the doctor
what fluid was injected.
• Do not use halogenated hydrocarbon solvents in this system; it contains aluminium parts and may explode. Cleaning agents, coatings, paints, and
adhesives may contain halogenated hydrocarbon solvents. Don't take chances, consult your material supplier to be sure. (ex: methylene chloride and
1,1,1 - Trichlorethane)
• Caution: When a flammable liquid is sprayed there may be danger of fire or explosion especially in a closed area.
• Use extreme caution when cleaning spray tip guard. DO NOT try to wipe off build up around the spray tip before following shut down procedure.
Follow the Shut down Procedure, then follow the spray tip manufacturer’s instructions for removing and cleaning the spray tip.
• Never attempt to change spray tip or leave the unit unattended without first shutting off pump, releasing fluid pressure, and locking the trigger safety lock.
• Conductive metal containers must be used when flushing flammable fluids through the system. Always flush at low pressure with spray tip removed.
A metal part of the spray gun must be held firmly against the grounded metal pail when flushing or relieving pressure from the gun.
• Trigger guard helps reduce the risk of accidentally triggering the gun if dropped or bumped. Do not use a spray gun without a trigger guard.
HIGH PRESSURE!
INJECTION HAZARD!
Important
To engage trigger
safety lock, push
lever tab to full up
position. Test
regularily for proper
functioning while
system is shut
down.
(trigger shown in
unlocked position)
Pos. Part nos. Description Qty.
11 L032-680 Handle with swivel (new 1pc type) 1
L032-667 Handle only (old 2pc type) *wsl
15 L032-676 Trigger shaft nut 2
16 L032-663 Trigger shaft ass'y (incl.pos.15 x 2) 1
17 L032-662 Trigger (2 finger) 1
L032-654 Trigger (4 finger) 1
18 L032-651 Trigger guard (2 finger) 1
L032-655 Trigger guard (4 finger) 1
19 L032-574 Plastic spacer, cosmetic-some models 1
Accessories:
L032-677 Repair kit for G ver. (incl. pos. 1,3,4)
L032-678 Repair kit for L ver. (incl. pos. 1,3,4)
L032-678BR-kit for L ver. (incl. pos. 1,3,4) Bedford
1
8
11
15
18
16
15
5
10
9
17
6
n
7
3
4
Pos. Part nos. Description Qty.
L032-021 L-60 -LAirless spray gun (2 finger)
L032-022 L-60-G Airless spray gun (2 finger)
L032-023 L-60-L Airless spray gun (4 finger)
1 L032-650 Seat -L 1
L032-656 Seat -G 1
3 L032-653 Ball (brass housing) 1
4 L032-679 Packing ass'y (brass body) (incl. #7nut)1
5 L032-664 Gun body 1
6 L032-671 Retainer block 1
7 L032-673 Lock nut 1
8 L032-670 Trigger push pin with sleeve 2
9 L032-665 Handle seal 1
10 L032-516 Gun filter, white (50 mesh) opt.
L032-517 Gun filter, yellow (100 mesh) 1
L032-518 Gun filter, red (200 mesh) opt.
19
Important
this "double lip"
end of filter
must go in gun
first.
8
