24

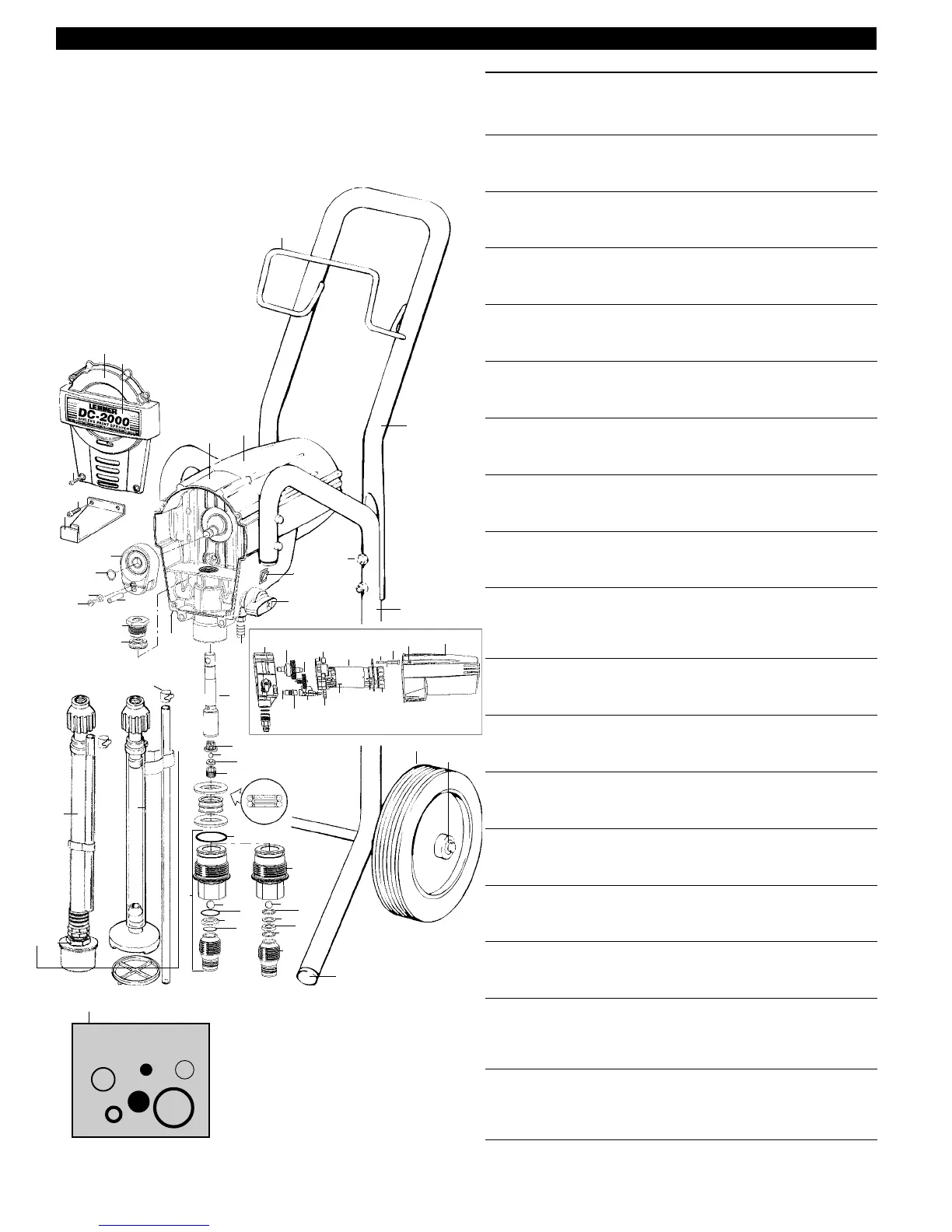

DC-2000 PARTS DIAGRAM
Pos. Part nos. Description Qty.
L045-002 DC-2000 airless piston pump on cart
1 L045-601 Front cover 1
2 L045-690 Front cover decal 3
3 L045-603 Screw 4
4 L045-604 Pail hook 1
5 L045-605 Bolt, pail hook 2
6 L045-606 Main pump housing 1
7 L045-607 Motor (incl. fan) 1
7a L045-608 Motor shroud 1
7b L045-521 Relay, 120 volt 1
7c L045-610 Gear assembly (without bearings) 1
L045-663 Mini ball bearing 2
7d L045-662 Eccentric shaft ass'y 1
7e L045-612 Motor bolts 4
7f L045-613 Motor fan 1
7g L045-544 Fuse, 10 amp 1
7h L045-609 Fuse holder 1
L045-611 Power cord (not shown) 1
L045-691 Safety decal 1
8 L045-615 Hose hook 1
9 L045-616 Cart handle (new golf type L045-666) 1
10 L045-617 Bolt 4
L045-618 Washer 4
L045-619 Nut 4
11 L045-620 Cart base 1
14 L045-621 Cart wheel (new golf type L045-664) 2
15 L045-622 Wheel cap (new golf type L045-665) 2
16 L045-623 Plug 2
17 L045-624 Rocker switch 1
18 L004-506 Prime valve assembly 1
19 L045-625 Return fitting 1
*20 L045-626 Packing nut (incl in L045-651 kit) 1
*21 L045-562 Upper packing 1
22 L045-627 Piston 1
*23 L045-567 S.V. ball guide 1
*24 L060-519 Ball, shaft valve 1
25 L045-628 Shaft valve seat 1
26 L060-522 Shaft valve nut 1
*27a L045-630 Lower packing, standard 1
*27b L045-564 Lower packing, Heavy Duty (DC3000) 1
*28 L045-631 O-ring, 1.2x.1 1
29 Inlet valve housing, super to #49 1
*30 L050-569 Ball, 7/16" 1
*31 L045-633 Seal 2
*32 L045-634 Spacer, inlet seat 1
33 L045-635 Inlet valve seat *NLA use L045-657. 1
37 Inlet valve housing, super to #49 1
38 L045-654 Yolk 1
39 L045-637 Retaining ring 1
40 L045-638 Screw, 3/8x8-32 1
41 L045-639 Washer, .50" x .18 1
42 L045-640 Dowel pin 1
43 L045-641 Pressure control knob 1
43a L045-642 Pressure control housing 1
43b L045-643 Pressure transducer
(DC16/20) incl#43c 1
43c L045-644 O-ring, DC2000 transducer 1
NS L045-868 O-ring, viton (for piston inside transducer)
44 L045-645 Suction & return set 1
45 L045-650 Suction tube w/o screen 1
46 L045-646 Suction screen 1
47 L045-647 Return tube 1
48 L045-648 Clip 1
49 L045-657 Inlet valve ass'y, New DC2 1/2" ball 1
*50 L045-658 Ball, 1/2" 1
*51 L045-659 O-ring (17x2) 1
52 L045-660 Inlet seat *NLA, see #49
53 L045-661 O-ring (14x2) 1
Packing & Repair kits:
*54a L045-651 HD pack kit-7/16 ball(20,21,23,24,27b,28,30,31,32)
*54b L045-655 HD pack kit-7/16 ball(21,23,24,27b,28,30,31,32)
*54c L045-656 HD pack kit-1/2 ball(21,23,24,27b,28,50,51,53)
55 L045-649 Motor brush pair
L045-582 Motor brush each
L034-125 Packing lubricating oil, squeeze bottle
L050-621 Owner’s manual
Feb09
Important, following items require accurate torques:
#20 packing nut ...................... 25 ft/lbs
#26 Shaft Valve hex nut ......... 12 ft/lbs
#29 Foot Valve housing .......... 30 ft/lbs
#37 Inlet housing .................... 30 ft/lbs
Caution:
only use fibre braid high
pressure airless hose. Do Not
use steel braid hose!
16
17
18
15
14
19
11
26
27
28
25
24
23
22
49
21
52
51
44
43
42
41
6
7
8
5
4
3
2
9
1
10
20
50
53
46
47
48
38
39
40
(pressure
control on
side).
Packing Kit
54
45
Clamp, use
L075-442
for now.
37
33
32
31
30
31
29
New 1/2"
ball version
Older 7/16"
ball version
43c
43b
43a
43
7e 7f
7b
7h
7g
3
7a
6
7
55
7d
7c
