Lennox 13HPX Series User Manual

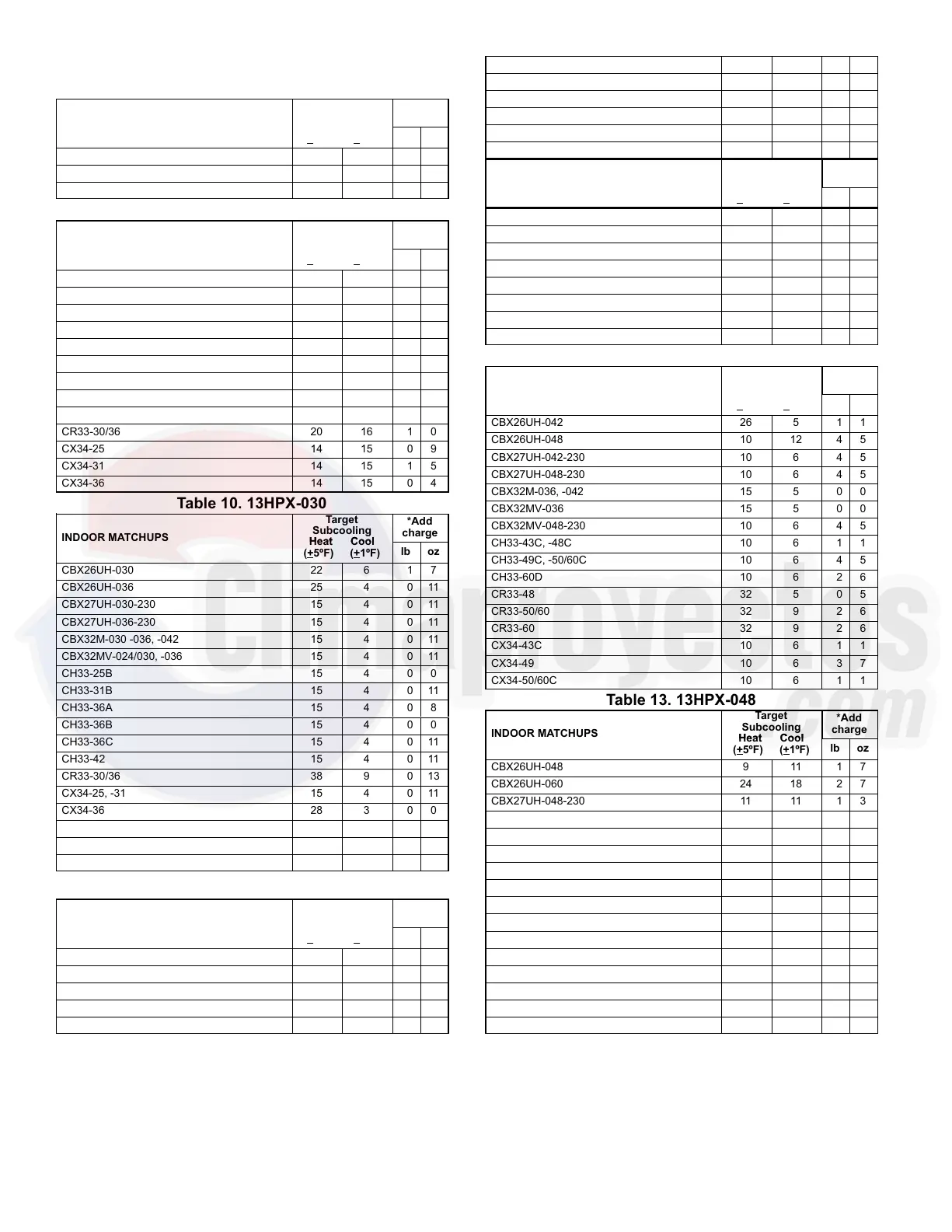

Page 14
INDOOR UNIT MATCHUPS 
13HPX−XXX−230−04
Table 8. 13HPX−018
INDOOR MATCHUPS
Target
Subcooling
Heat Cool
*Add
charge
g
Heat Cool
(+5ºF)(+1ºF)
lb oz
CBX26UH−018 14 9 0 3
CBX32MV−018/024−230 12 12 0 0
CBX32MV−024/030−230 12 19 1 1
Table 9. 13HPX−024
INDOOR MATCHUPS
Target
Subcooling
Heat Cool
*Add
charge
g
Heat Cool
(+5ºF)(+1ºF)
lb oz
CBX26UH−024 22 16 1 0
CB30U−31 14 15 1 5
CBX32M−030 14 15 1 5
CBX32MV−018/024 14 15 0 9
CBX32MV−024/030 14 15 1 5
CH33−25B 14 15 0 0
CH33−36A 14 15 0 8
CH33−36B 14 15 0 0
CH33−36C 14 15 0 14
CR33−30/36 20 16 1 0
CX34−25 14 15 0 9
CX34−31 14 15 1 5
CX34−36 14 15 0 4
Table 10. 13HPX−030
INDOOR MATCHUPS
Target
Subcooling
Heat Cool
*Add
charge
g
Heat Cool
(+5ºF)(+1ºF)
lb oz
CBX26UH−030 22 6 1 7
CBX26UH−036 25 4 0 11
CBX27UH−030−230 15 4 0 11
CBX27UH−036−230 15 4 0 11
CBX32M−030 −036, −042 15 4 0 11
CBX32MV−024/030, −036 15 4 0 11
CH33−25B 15 4 0 0
CH33−31B 15 4 0 11
CH33−36A 15 4 0 8
CH33−36B 15 4 0 0
CH33−36C 15 4 0 11
CH33−42 15 4 0 11
CR33−30/36 38 9 0 13
CX34−25, −31 15 4 0 11
CX34−36 28 3 0 0
CX34−38 SN# 6007 and after 4 4 0 11
CX34−38 before SN# 6007 20 4 0 11
CX34−42 28 3 0 0
Table 11. 13HPX−036
INDOOR MATCHUPS
Target
Subcooling
Heat Cool
*Add
charge
g
Heat Cool
(+5ºF)(+1ºF)
lb oz
CBX26UH−036 17 10 2 7
CBX27UH−036−230 10 5 2 7
CBX27UH−042−230 10 10 2 13
CBX32M−036, −042 10 5 2 7
CBX32MV−036−230 10 5 2 7
CH33−31A, −31B 10 5 2 8
CH33−36B 10 5 0 0
CH33−36C 10 5 0 5
CH33−42 10 5 2 8
CH33−44/48B 10 5 2 10
CH33−48C 10 5 2 10
INDOOR MATCHUPS
Target
Subcooling
Heat Cool
*Add
charge
g
Heat Cool
(+5ºF)(+1ºF)
lb oz
CR33−30/36 25 5 0 6
CR33−48 25 5 2 8
CR33−50/60 10 5 2 10
CX34−36B 10 5 0 1
CX34−38 SN# 6007 and after 5 5 2 7
CX34−38 before SN# 6007 10 5 2 7
CX34−42B 10 5 0 1
CX34−44/48B 10 5 2 7
Table 12. 13HPX−042
INDOOR MATCHUPS
Target
Subcooling
Heat Cool
*Add
charge
g
Heat Cool
(+5ºF)(+1ºF)
lb oz
CBX26UH−042 26 5 1 1
CBX26UH−048 10 12 4 5
CBX27UH−042−230 10 6 4 5
CBX27UH−048−230 10 6 4 5
CBX32M−036, −042 15 5 0 0
CBX32MV−036 15 5 0 0
CBX32MV−048−230 10 6 4 5
CH33−43C, −48C 10 6 1 1
CH33−49C, −50/60C 10 6 4 5
CH33−60D 10 6 2 6
CR33−48 32 5 0 5
CR33−50/60 32 9 2 6
CR33−60 32 9 2 6
CX34−43C 10 6 1 1
CX34−49 10 6 3 7
CX34−50/60C 10 6 1 1
Table 13. 13HPX−048
INDOOR MATCHUPS
Target
Subcooling
Heat Cool
*Add
charge
g
Heat Cool
(+5ºF)(+1ºF)
lb oz
CBX26UH−048 9 11 1 7
CBX26UH−060 24 18 2 7
CBX27UH−048−230 11 11 1 3
CBX27UH−060−230 24 18 2 7
CBX32M−048 11 11 1 3
CBX32M−060 11 11 1 3
CBX32MV−048 11 11 1 3
CBX32MV−060−230 11 11 1 3
CH33−43C 18 7 0 0
CH33−49C, −50/60C 11 11 1 3
CH33−60D 11 11 0 9
CH33−62D 11 11 1 10
CR33−50/60 25 7 0 9
CR33−60 25 7 0 9
CX34−49 11 11 1 1
CX34−60D 11 11 0 9
