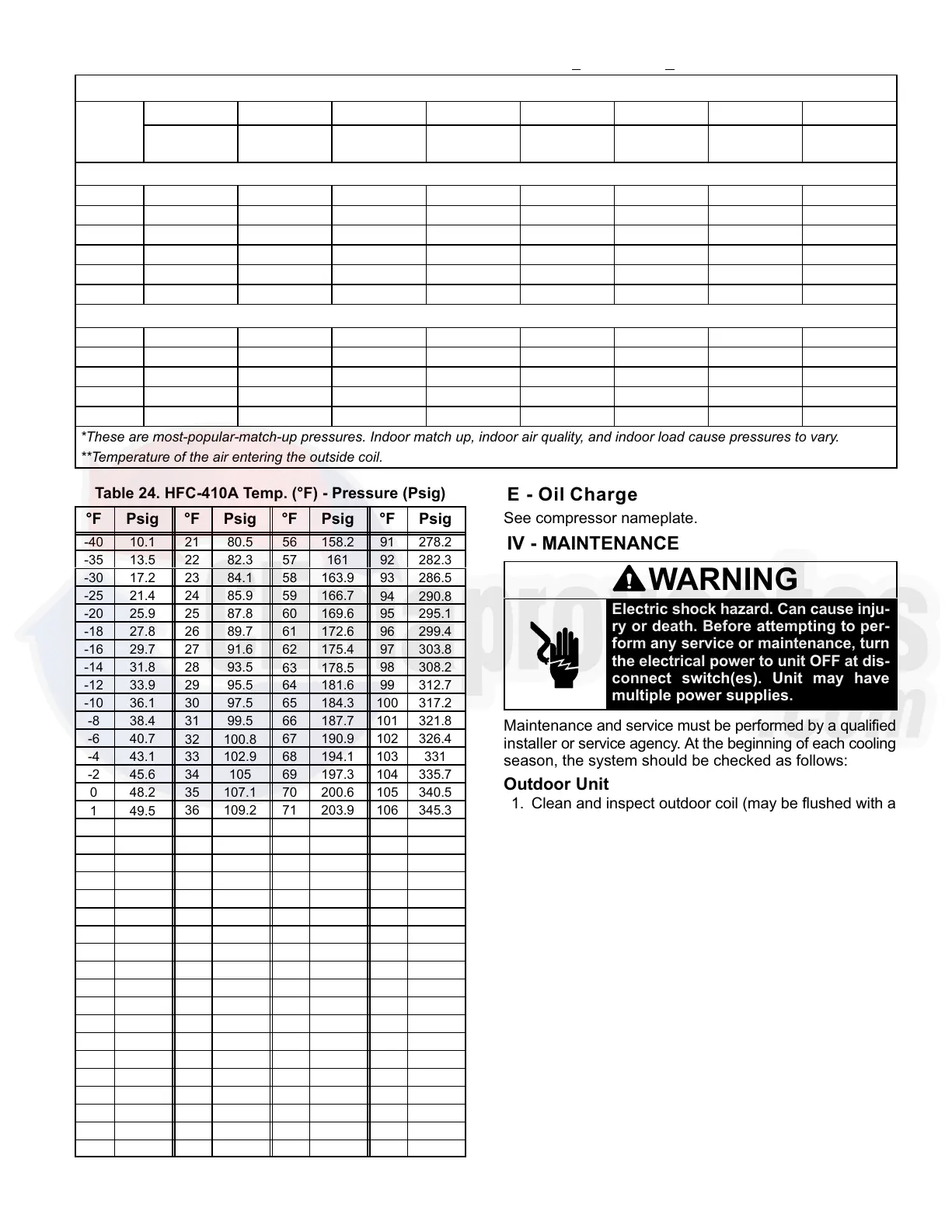

Table 23. Normal Operating Pressures − Liquid +10 & Vapor +5 PSIG*
13HPX−XXX−230−01 through 13HPX−XXX−230−03
5F (5C)**
13HPX−018 13HPX−024 13HPX−030 13HPX−036 13HPX−042 13HPX−048 13HPX−060 13HPX−061
Liquid/
Vapor
Liquid /
Vapor
Liquid /
Vapor
Liquid/
Vapor
Liquid
/ Vapor
Liquid /
Vapor
Liquid /
Vapor
Liquid/
Vapor
Cooling
65 (18) 234 / 142 258 / 140 238 / 137 260 / 136 231 / 135 246 / 134 256 / 116 237 / 135
75 (24) 273 / 144 299 / 142 278 / 138 303 / 140 267 / 138 286 / 136 298 / 123 275 / 137
85 (29) 316 / 145 347 / 145 322 / 140 348 / 143 314 / 140 330 / 138 345 / 131 317 / 139
95 (35) 365 / 148 399 / 148 369 / 143 398 / 145 367 / 143 379 / 140 395 / 135 366 / 141
105 (41) 421 / 151 460 / 150 425 / 144 452 / 148 414 / 146 432 / 143 450 / 138 417 / 144
115 (45) 492 / 152 534 / 152 487 / 147 512 / 151 473 / 148 492 / 146 512 / 141 472 / 147
Heating
60 (15) 325 / 130 353 / 130 328 / 127 350 / 131 360 / 135 361 / 130 370 / 127 386 / 122
50(10) 309 / 114 330 / 109 313 / 110 331 / 107 340 / 110 334 / 100 350 / 102 342 / 81
40 (4) 293 / 96 307 / 90 297 / 93 314 / 88 324 / 91 302 / 92 331 / 81 332 / 76
30 (−1) 278 / 79 291 / 75 284 / 77 290 / 74 307 / 73 300 / 73 309 / 62 322 / 73
20 (−7) 264 / 65 276 / 59 271 / 62 283 / 58 298 / 61 286 / 60 300 / 56 304 / 59
*These are most−popular−match−up pressures. Indoor match up, indoor air quality, and indoor load cause pressures to vary.
**Temperature of the air entering the outside coil.
Table 24. HFC−410A Temp. (°F) − Pressure (Psig)
°F Psig °F Psig °F Psig °F Psig
−40 10.1 21 80.5 56 158.2 91 278.2
−35 13.5 22 82.3 57 161 92 282.3
−30 17.2 23 84.1 58 163.9 93 286.5
−25 21.4 24 85.9 59 166.7
94 290.8
−20 25.9 25 87.8 60 169.6 95 295.1
−18 27.8 26 89.7 61 172.6 96 299.4
−16 29.7 27 91.6 62 175.4 97 303.8
−14 31.8 28 93.5
63 178.5
98 308.2
−12 33.9 29 95.5 64 181.6 99 312.7
−10 36.1 30 97.5 65 184.3 100 317.2
−8 38.4 31 99.5 66 187.7 101 321.8
−6 40.7
32 100.8
67 190.9 102 326.4
−4 43.1 33 102.9 68 194.1 103 331
−2 45.6 34 105 69 197.3 104 335.7
0 48.2 35 107.1 70 200.6 105 340.5
1 49.5
36 109.2 71 203.9 106 345.3
2 50.9 37 111.4 72 207.2 107 350.1
3 52.2 38 113.6 73 210.6 108 355
4 53.6 39 115.8 74 214 109 360
5 55 40 118 75 217.4 110 365
6 56.4 41 120.3 76 220.9 111 370
7 57.9 42 122.6 77 224.4 112 375.1
8 59.3 43 125 78 228 113 380.2
9 60.8 44 127.3 79 231.6 114 385.4
10 62.3 45 129.7 80 235.3 115 390.7
11 63.9 46 132.2 81 239 116 396
12 65.4 47 134.6 82 242.7 117 401.3
13 67 48 137.1 83 246.5 118 406.7
14 68.6 49 139.6 84 250.3 119 412.2
15 70.2 50 142.2 85 254.1 120 417.7
16 71.9 51 144.8 86 258 121 423.2
17 73.5 52 147.4 87 262 122 428.8
18 75.2 53 150.1 88 266 123 434.5
19 77 54 152.8 89 270 124 440.2
20 78.7 55 155.5 90 274.1
125 445.9
E − Oil Charge
See compressor nameplate.
IV − MAINTENANCE
WARNING
Electric shock hazard. Can cause inju-
ry or death. Before attempting to per-
form any service or maintenance, turn
the electrical power to unit OFF at dis-
connect switch(es). Unit may have
multiple power supplies.
Maintenance and service must be performed by a qualified
installer or service agency. At the beginning of each cooling
season, the system should be checked as follows:
Outdoor Unit
1. Clean and inspect outdoor coil (may be flushed with a
water hose). Ensure power is off before cleaning.
2. Outdoor unit fan motor is pre−lubricated and sealed. No
further lubrication is needed.
3. Visually inspect all connecting lines, joints and coils for
evidence of oil leaks.
4. Check all wiring for loose connections.
5. Check for correct voltage at unit (unit operating).
6. Check amp draw on outdoor fan motor.
Unit nameplate__________Actual__________.
7. Inspect drain holes in coil compartment base and clean
if necessary.
NOTE - If insufficient heating or cooling occurs, the unit
should be gauged and refrigerant charge should be
checked.
Indoor Coil
1. Clean coil if necessary.
2. Check connecting lines, joints and coil for evidence of
oil leaks.
To Next Page
