Lennox COMPACTAIR CSC - Page 9

8
SVL3
C2
DS
SVL1
C1
PT2
CH3
LP2
HP2
PT1
CH2
LP1
CH1
HP1
UNIDAD EXTERIOR
CSC 100
UNIDAD INTERIOR
CIC 100
(ELEMENTO OPCIONAL)
OS
DS
SVL1
DS
SVL3
LPT1
HP1
HP2
CH3
CH1
CH2
OS
HPT1
LPT1
LPT2
HPT2
LPT2
HPT1
HPT2
1.- GENERAL CHARACTERISTICS
Pressure gauge. (5/16” to be tted by the installer).
Discharge sensor.
Liquid solenoid valve (Long distance option).
To be connected by the installer to indoor units.
Liquid solenoid valve (Long distance option).
To be connected by the installer to indoor units.
Low pressure transducer, circuit 1.
Low pressure transducer, circuit 2.
High pressure switch, circuit 1.
Coil
Fan motor
Coil
Fan motor
Suction accumulator
(Long distance connection option).
Suction accumulator
(Long distance connection option).

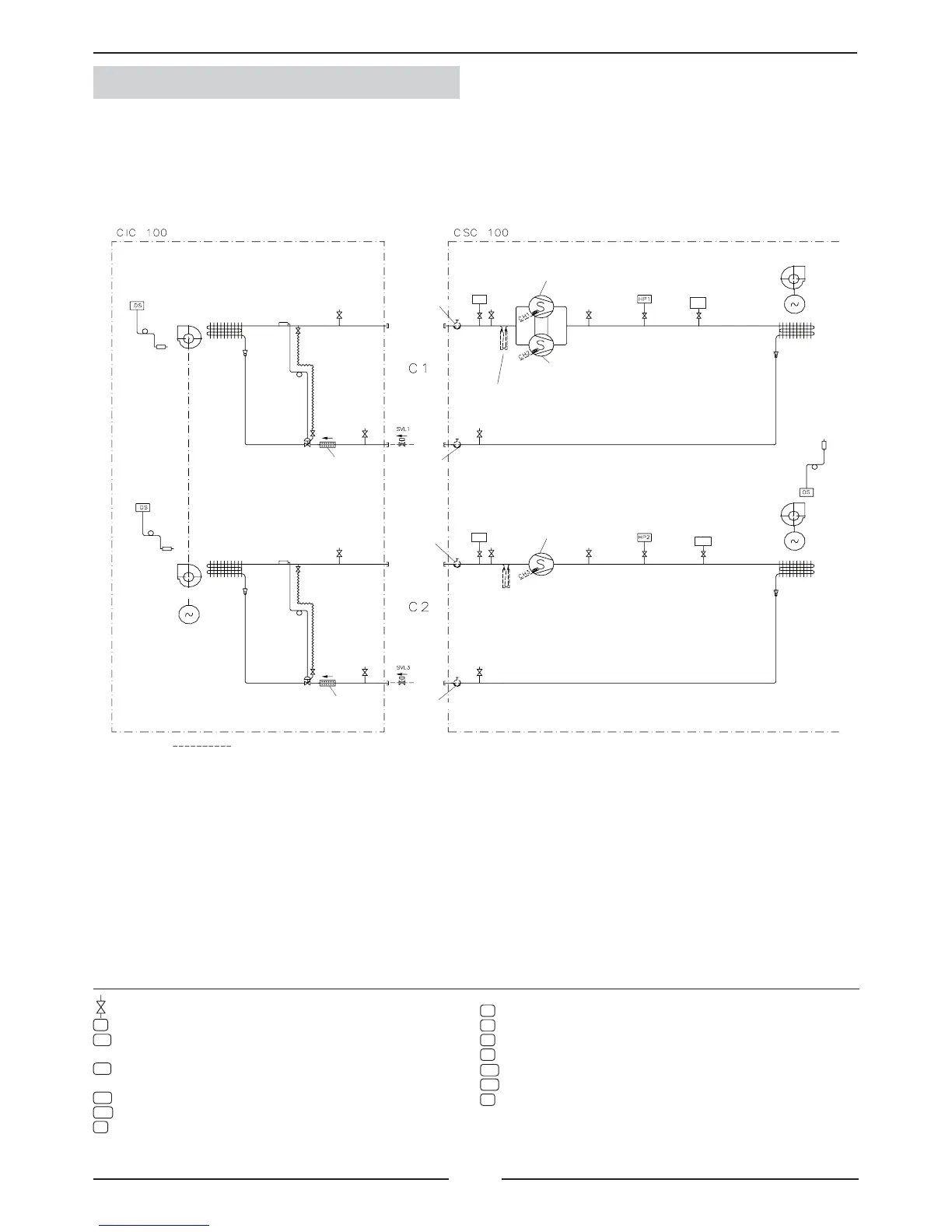

1.5.- PIPING DRAWINGS COOLING ONLY UNITS
Scroll compressor
Scroll compressor
Scroll compressor
INDOOR UNIT
OUTDOOR UNIT
OPTION ELEMENT
Fan
Coil
Expansion valve
Expansion valve
Filter drier
Filter drier
Service valve option
Service valve option
Service valve option
Service valve option
Coil
High pressure switch, circuit 2.
Crank case heater. (Low ambient 0ºC or -15ºC option).
Crank case heater. (Low ambient 0ºC or -15ºC option).
Crank case heater. (Low ambient 0ºC or -15ºC option).
High pressure transducer, circuit 1.
High pressure transducer, circuit 1.
Outdoor temperature sensor
