Lennox GAH 020S

• 31 •
GAC/GAH 055S
SPXX KGRL
DPXX WFIF
AVUB
GAC-H_055S_Z
GAC-H_055S_S_H_Z
Installation manual /eCOMFORT-MIL150E-0916 / 05/2017
1.- GENERAL CHARACTERISTICS

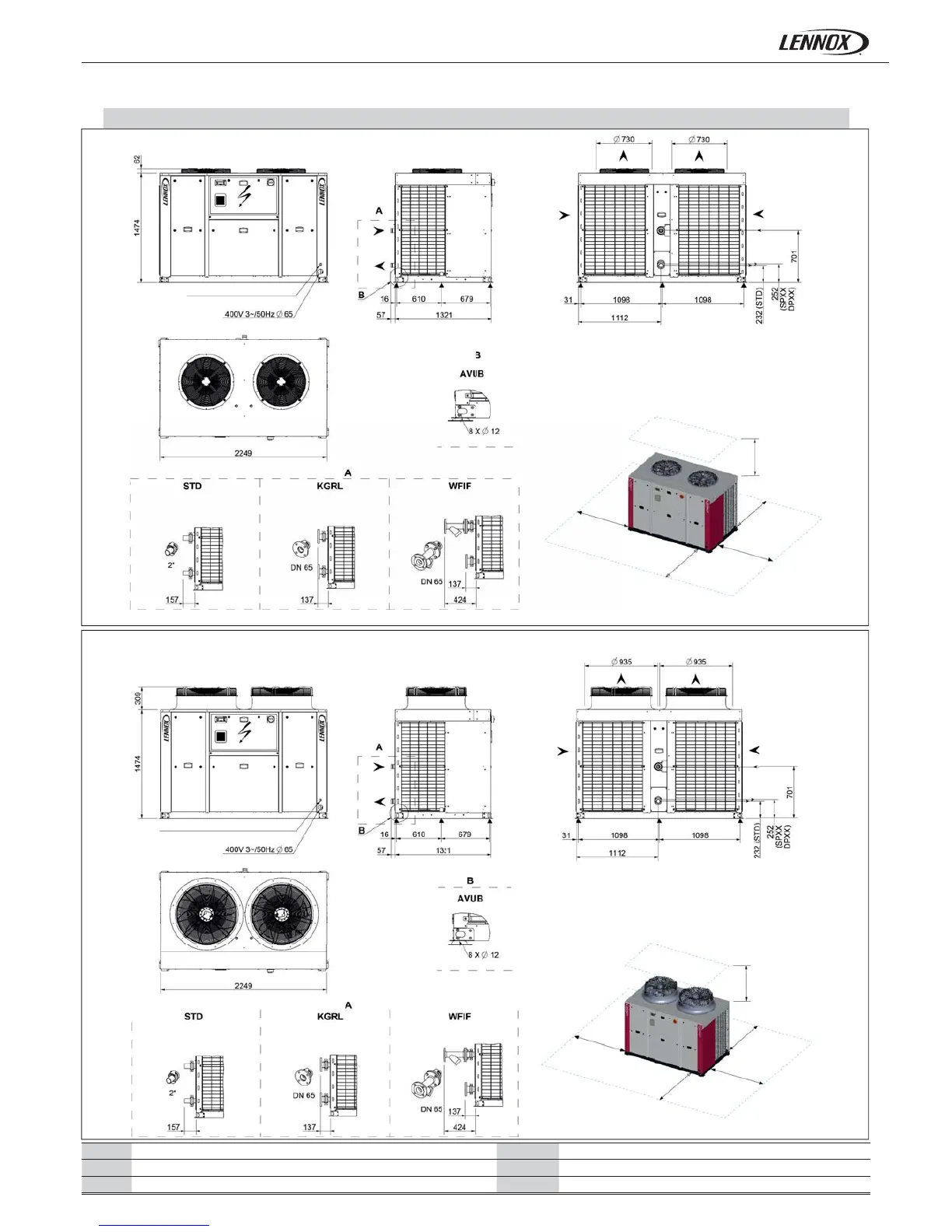

1.9.- DIMENSIONS
STANDARD VERSION
UNIT WITH STANDARD EC FANS (SEAS) OR HIGH PRESSURE EC FANS (HIPF)
Hydraulic module with single pump Flange connection
Hydraulic module with twin pum Water fi lter (supplied loose)
Rubber anti-vibration mounts
All dimensions in mm
All dimensions in mm
3
meters
3
meters
1
meter
1
meter
1
meter
1
meter
1
meter
1
meter
1
meter
1
meter
Victaulic or welded connection Flange connection Flange connection
Victaulic or welded connection Flange connection Flange connection
Controller connection Ø 29
Controller connection Ø 29
